ControlMaster CM10, CM30 and CM50
Universal process controllers,
1
/8,
1
/4 and
1
/2 DIN 7 Advanced Level
58 IM/CM/S–EN Rev. R
…Control / …Loop 1 Output
A/M Select Sources The selection of A/M (Auto / Manual) control modes of operation can be controlled by digital
signals; either from internal digital signals (for example, alarm states) or from external signals via
digital inputs (or digital communications).

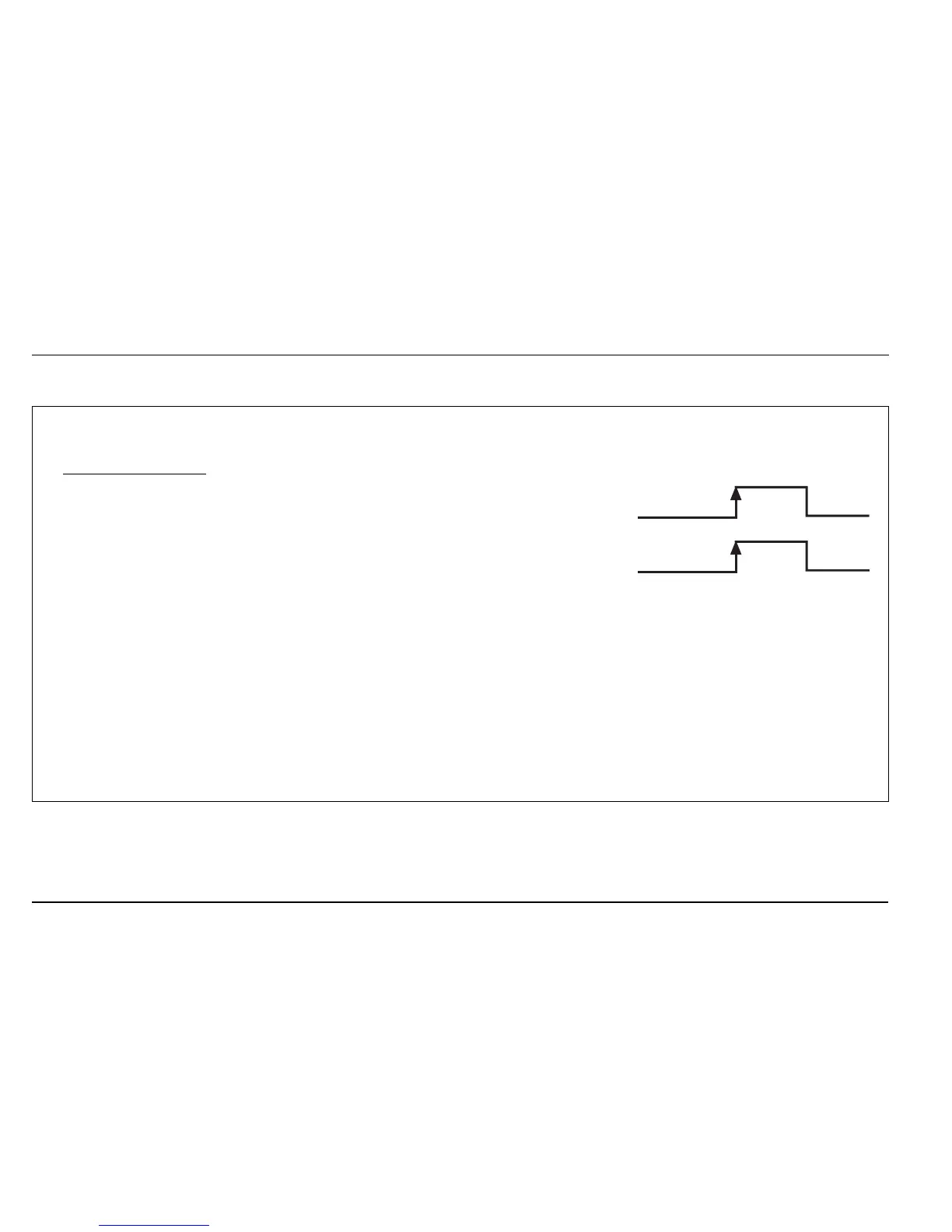

Auto Select The source required to select Auto control mode. Selection
is made on the rising edge of the digital signal.
Manual 1 (2)
Select
The source required to select Manual control mode.
Selection is made on rising edge of the digital signal. The
output value is set according to Manual 1 (2) Config O/P (see
below).
Manual 1 (2)
Output
Determines the Manual output value to be set when the controller is put into Manual control mode
(see page 5) using Manual 1 (2) Select source.
Last Auto O/P
Holds the output at its value prior to switching to Manual control mode.
Man – 0%
Sets the output to 0 %.
Man – 100%
Sets the output to 100 %.
Config Value
Sets the output to the value set in Manual 2 Config O/P.
To Next Page
