ABB ControlMaster CM10 User Manual

ControlMaster CM10, CM30 and CM50
Universal process controllers,
1
/8,
1
/4 and
1
/2 DIN 7 Advanced Level
62 IM/CM/S–EN Rev. R
…Control
Loop 1 Split O/P*

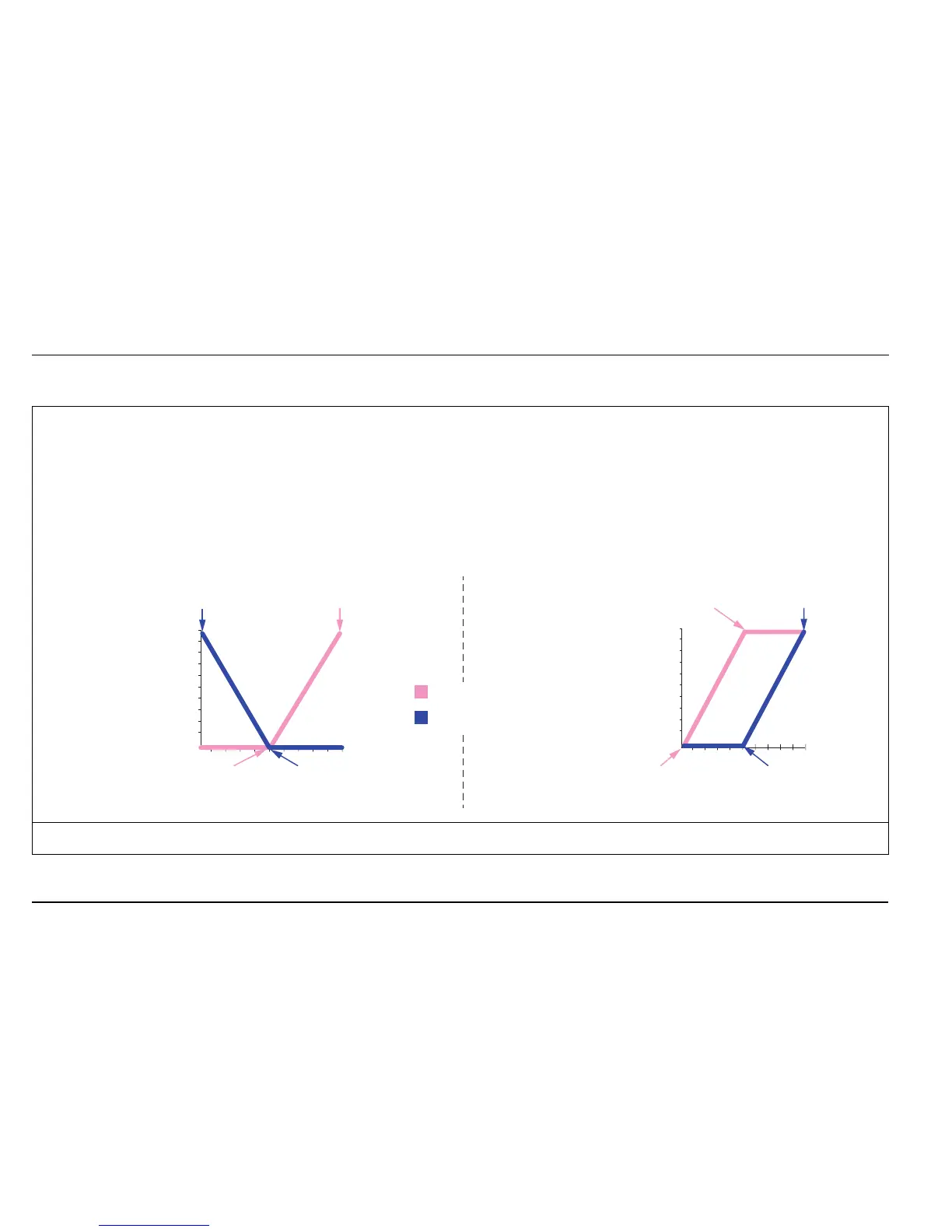

The split output facility enables the PID control output (see page 30) to be split into 2 separate outputs. This enables heat
/ cool and other applications requiring dual outputs to be controlled. The linear relationship between the input from the PID
algorithm and the 2 outputs is configured using the Min and Max Input / Output parameters (see below).
When operating with Split O/P in Manual control mode, manual adjustment is made to the input at the split output block
(x axis). By default, the Operator page displays both output values (OP1 and OP2).
Loop 1 Time Prop See Basic level, page 27.
*Applicable only if the output type selected is Split O/P – see page 36.
50%
50%
100%
100%
0%
50%
50%
100%
100%
0%
Output 1 (OP1)
Output 2 (OP2)
Max. Input 2 = 50
Max. Output 2 = 0
Min. Input 2 = 0
Min. Output 2 = 100
Max. Input 1 = 50
Min. Output 1 = 100
Max. Input 2 = 100
Max. Output 2 = 100
Min. Input 2 = 50
Min. Output 2 = 0
Min. Input 1 = 50
Min. Output 1 = 0
Split output
example
Min. Input 1 = 0
Min. Output 1 = 0
Max. Input 1 = 100
Max. Output 1 = 100
Input
Input
Output
Output
Heat / cool
example
