The LCD display is provided with capacitive control buttons. These enable you to control the
device through the glass of the closed cover.
Important (Notice)
The transmitter automatically calibrates the capacitive control buttons on a regular basis. If the
cover should be opened during operation, the buttons' sensitivity is at first increased. As a
result, operating errors may occur. The button sensitivity will return to normal during the next
automatic calibration.
7.1.1 Menu navigation
2
-----------------Menu----------------
3
4
5
Exit Select
5
G00822-01
1

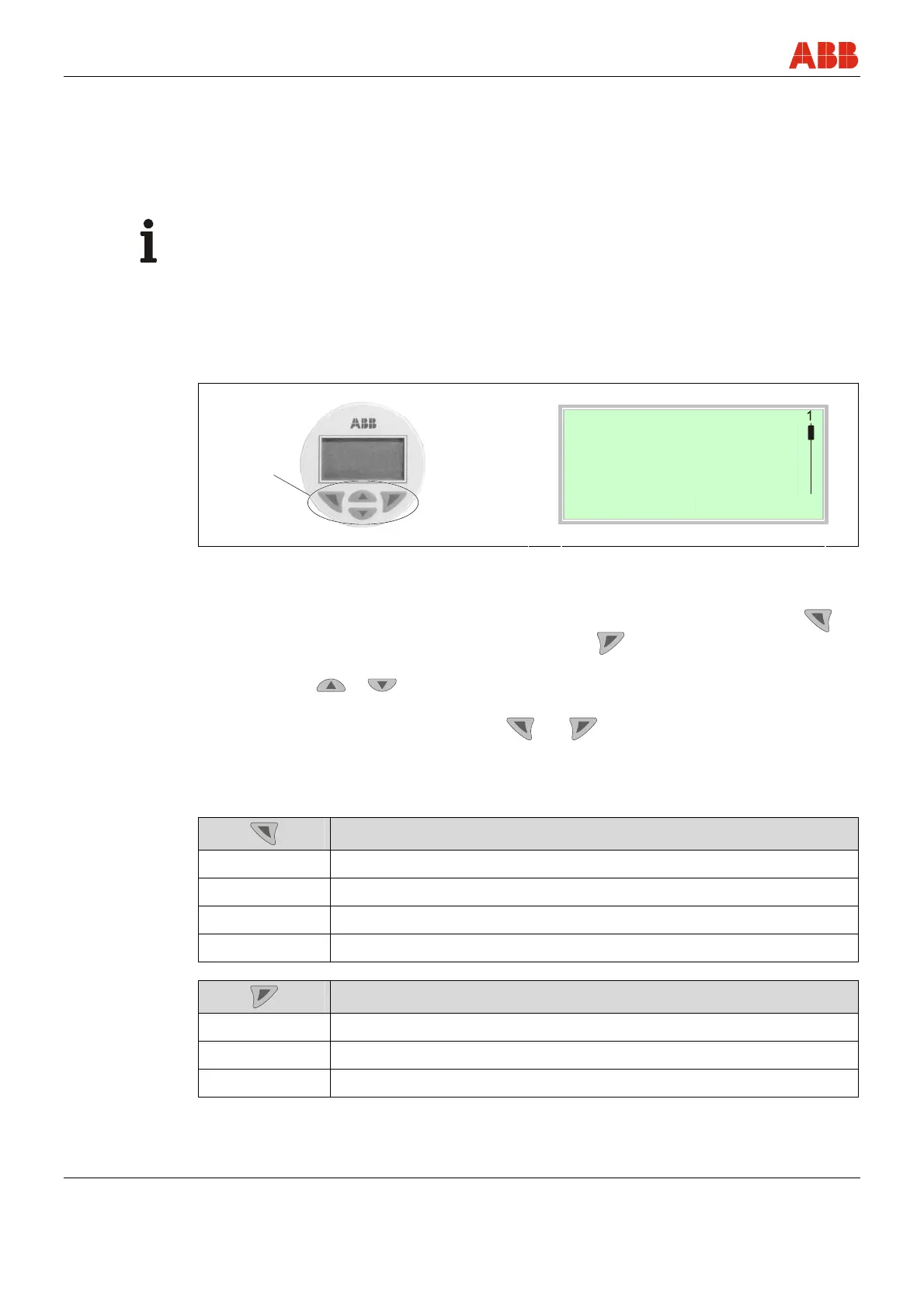

Fig. 57: LCD-indicator
1 Control buttons for menu navigation
2 Menu name
3 Menu number
4 Marker for indicating relative position
within the menu
5 Function currently assigned to the
and
control buttons
You can use the
or control buttons to browse through the menu or select a number or
character within a parameter value.
Different functions can be assigned to the
and control buttons. The function that is
currently assigned to them (5) is shown on the display.
7.1.1.1 Control button functions
Meaning
Exit
Exit menu
Back
Go back one submenu
Cancel
Cancel a parameter entry
Next
Select the next position for entering numerical and alphanumeric values
Meaning
Select
Select submenu / parameter
Edit
Edit parameter
OK
Save parameter entered
