3.2
Control system
Control panel
Programming unit
Floppy disk unit
Winchester memory
(option)
Duty time counter
Monitor, LCD
(Option)
Cooling device (option)
Connections
Mains switch
Control panel
Floppy disk unit
Duty time counter
Connections
Main functions for robot operation.
All functions for robot operation and programming.
Built-in system test.
Handles storing/loading of data on floppy disk.
Handles storing/loading of data in a mass memory.
Recording duty time.
Additional display of user program and process
messages.
Cooling of the electronic.
Control cable connection, process communication, computer
link (option), program printout (option).
Cooling device
onitor
Programming unit

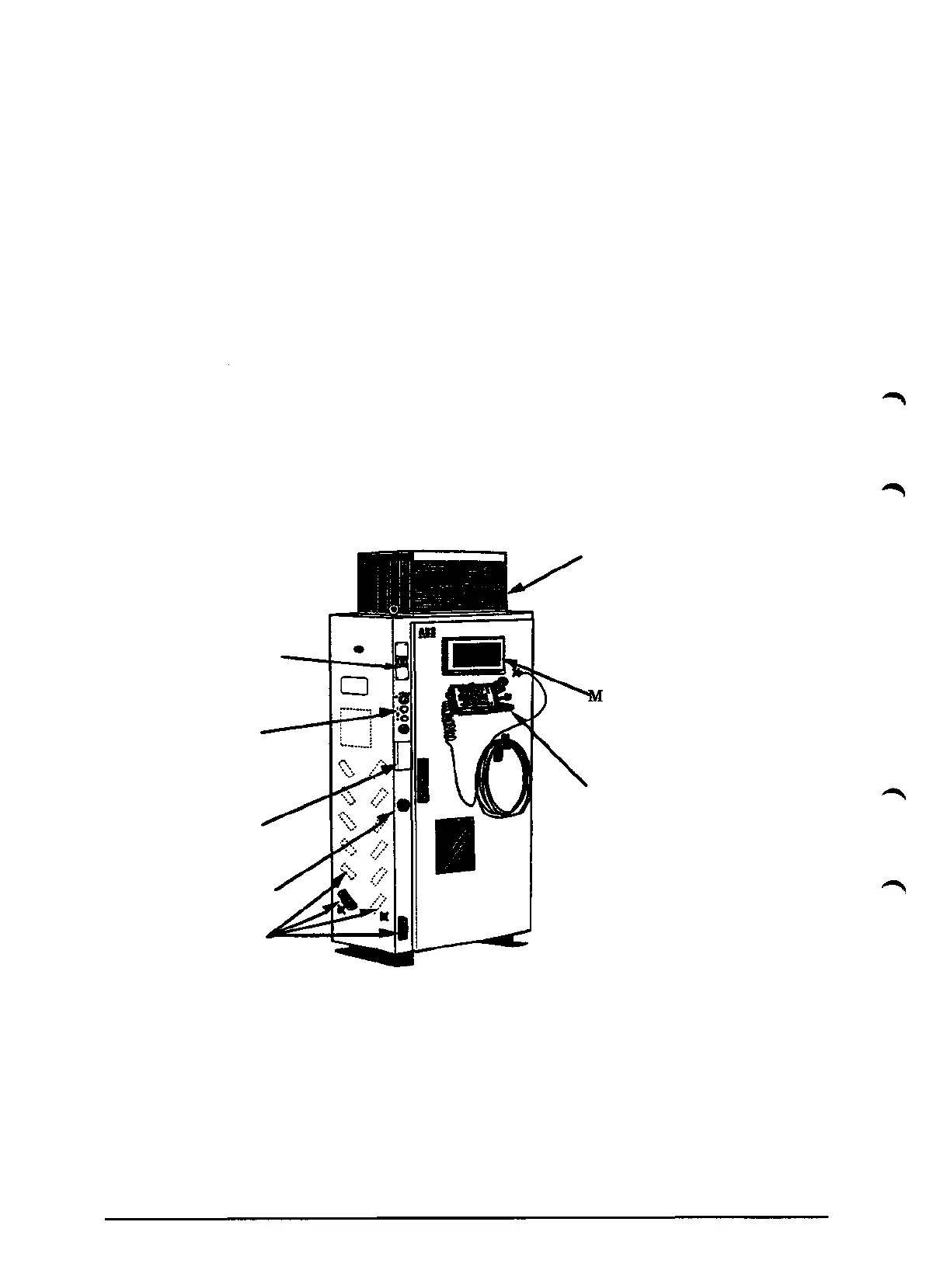

Fig 3.4 Control cabinet
The look of the cabinet differs,
depending on design
Description
