2.5.10. Installation of base spacers (option)
3HAC022033-001 Revision: K102
© Copyright 2004-2011 ABB. All rights reserved.
2.5.10. Installation of base spacers (option)

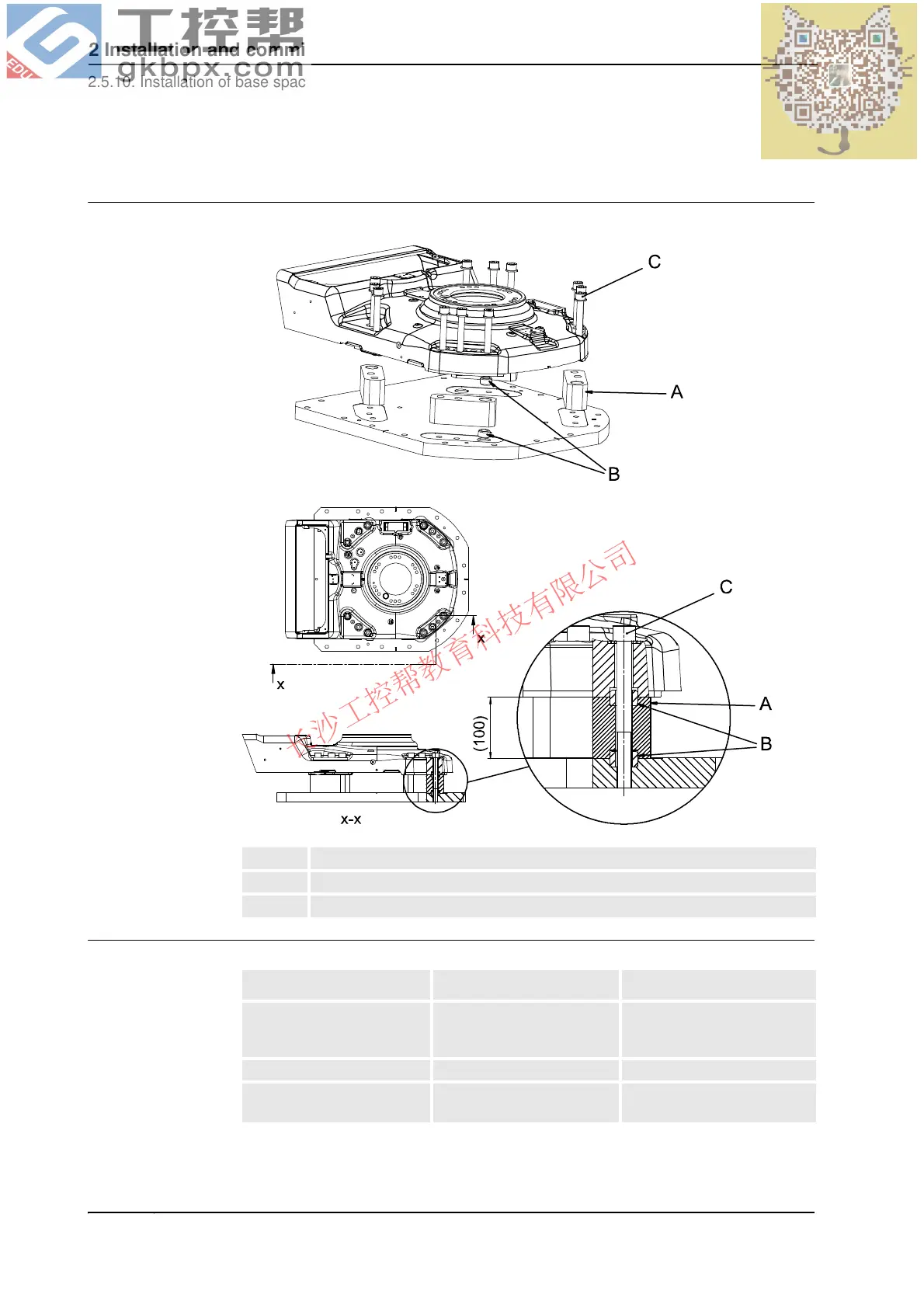

Illustration, installation of base spacers
xx0500001570
Required equipment
A Base spacer (4 pcs)
B Guide sleeve (4 pcs)
C Attachment screws and washers (12 pcs)
Equipment Art. no. Note
Base spacers 3HAC 021899-002 Includes mounting set with
attachment screws and
mounting instruction.
Base plate 3HAC 12937-7
Standard toolkit - Content is defined in section
Standard toolkit on page 427.
