3.3.11. Inspection, damper axes 2-5
Location of dampers

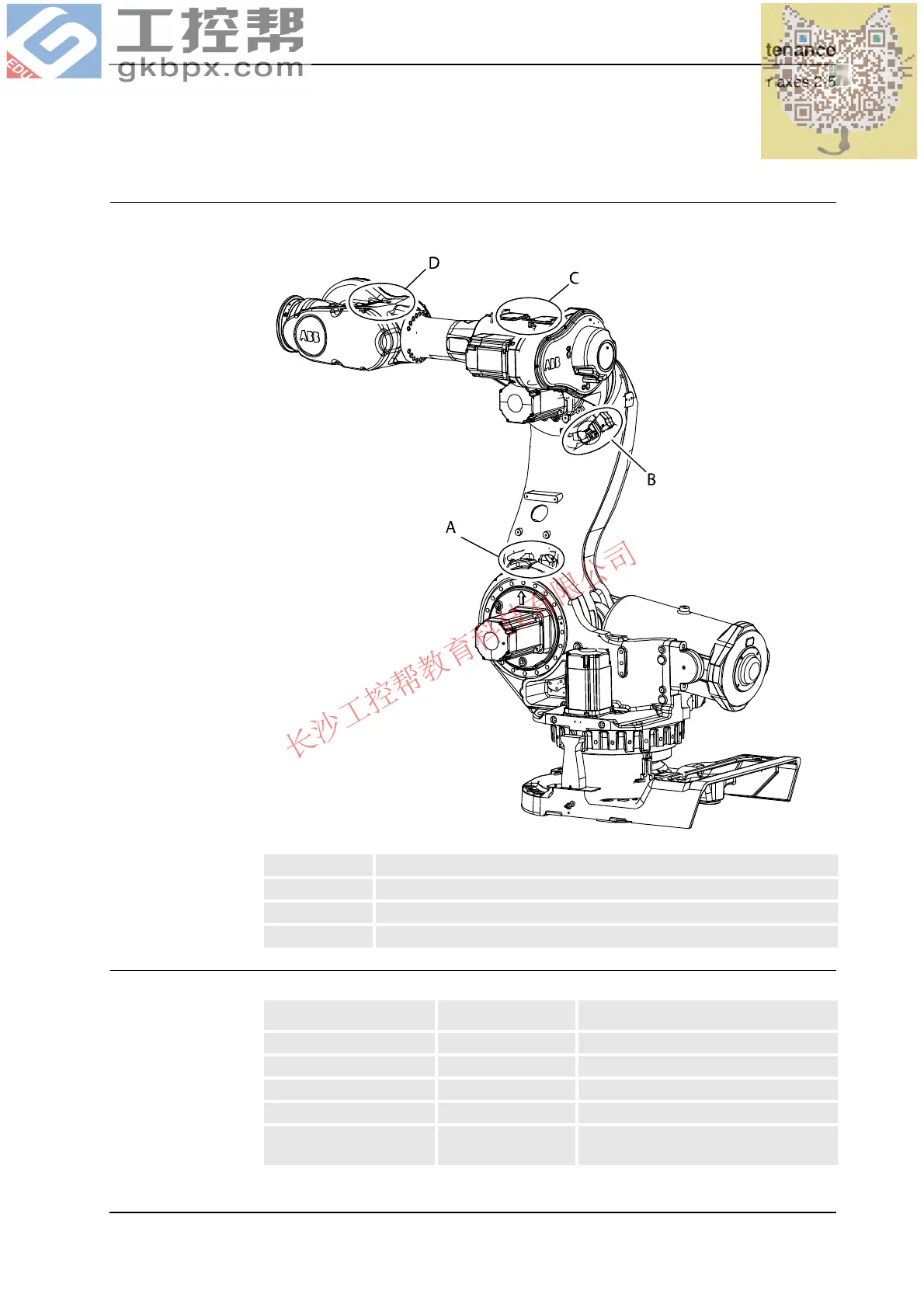

The figure below shows the location of all the dampers to be inspected.
xx0200000099
Required equipment
A Damper, axis 2 (2 pcs)
B Damper, axis 3 (2 pcs)
C Damper, axis 4 (2 pcs)
D Damper, axis 5 (2 pcs)
Equipment Art. no. Note
Damper axis 2 3HAC12990-1 Replace if damaged!
Damper axis 3 3HAC11750-1 Replace if damaged!
Damper axis 4 3HAC13564-1 Replace if damaged!
Damper axis 5 3HAC10503-8 Replace if damaged!
Standard toolkit - Content is defined in section Standard
toolkit on page 427.
