2 Installation and commissioning
2.5.11. Installation of cooling fan for motors, axes 1-3 (option)
3HAC022033-001 Revision: K106
© Copyright 2004-2011 ABB. All rights reserved.

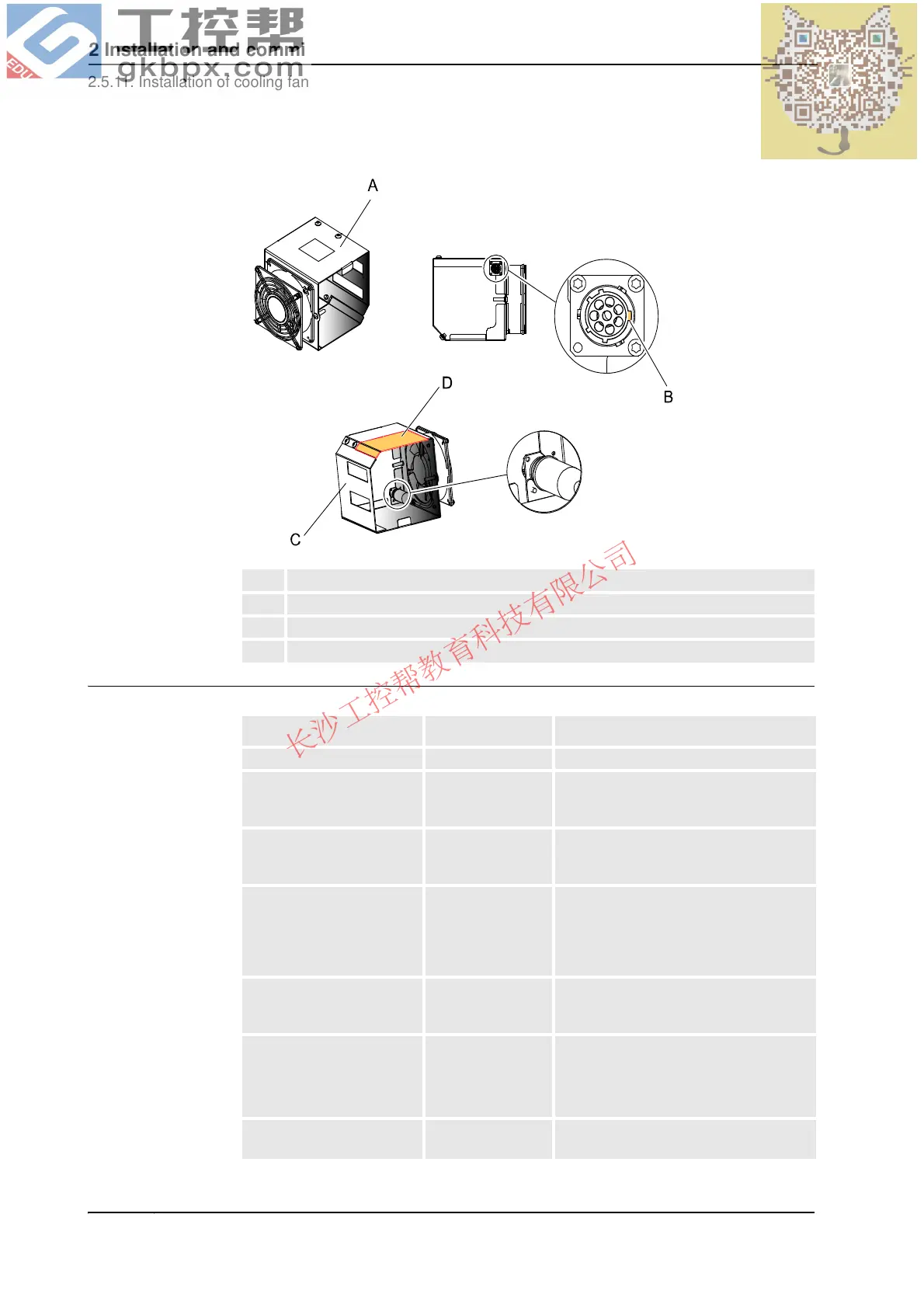

xx0900000137
Required equipment
A Fanbox
B Groove in the connector
C Back plate
D Part of the fanbox that can be removed, if needed.
Equipment Art. no. Note
Cooling fan 3HAC15374-1
Cabling, position switches
and cooling fans, axes 1, 2
and 3
3HAC15390-1 Choose this cabling if equipping the robot
withboth position switches and cooling
fansor with cooling fans on axis 3.
Cabling, cooling fans, axes
1 or 2.
3HAC023599-001 Choose this cabling if only equipping the
robot with cooling fans on axis 1 or 2 (not
on axis 3and not with position switches).
Plate for customer
connections
3HAC025778-001 An additional connection plate must be
fitted to the robot base, if not already
installed. The plate is shown in the figure
Plate for customer connections, at base
on page 107.
Additional cabling to and
inside the controller
- Specified in section Position switch and
fan cables, robot base to controller
(option) on page 134.
Material set fan axes 1 and
2
3HAC023999-001 The set includes:
• fan axes 1 & 2 cable harness
• plate, customer
• attachment screws and nuts.
Cable harness inside
controller
3HAC025488-001
Continued
Continues on next page
