3 Maintenance
3.3.7. Inspection, balancing device
1693HAC022033-001 Revision: K
© Copyright 2004-2011 ABB. All rights reserved.
Inspection points, balancing device

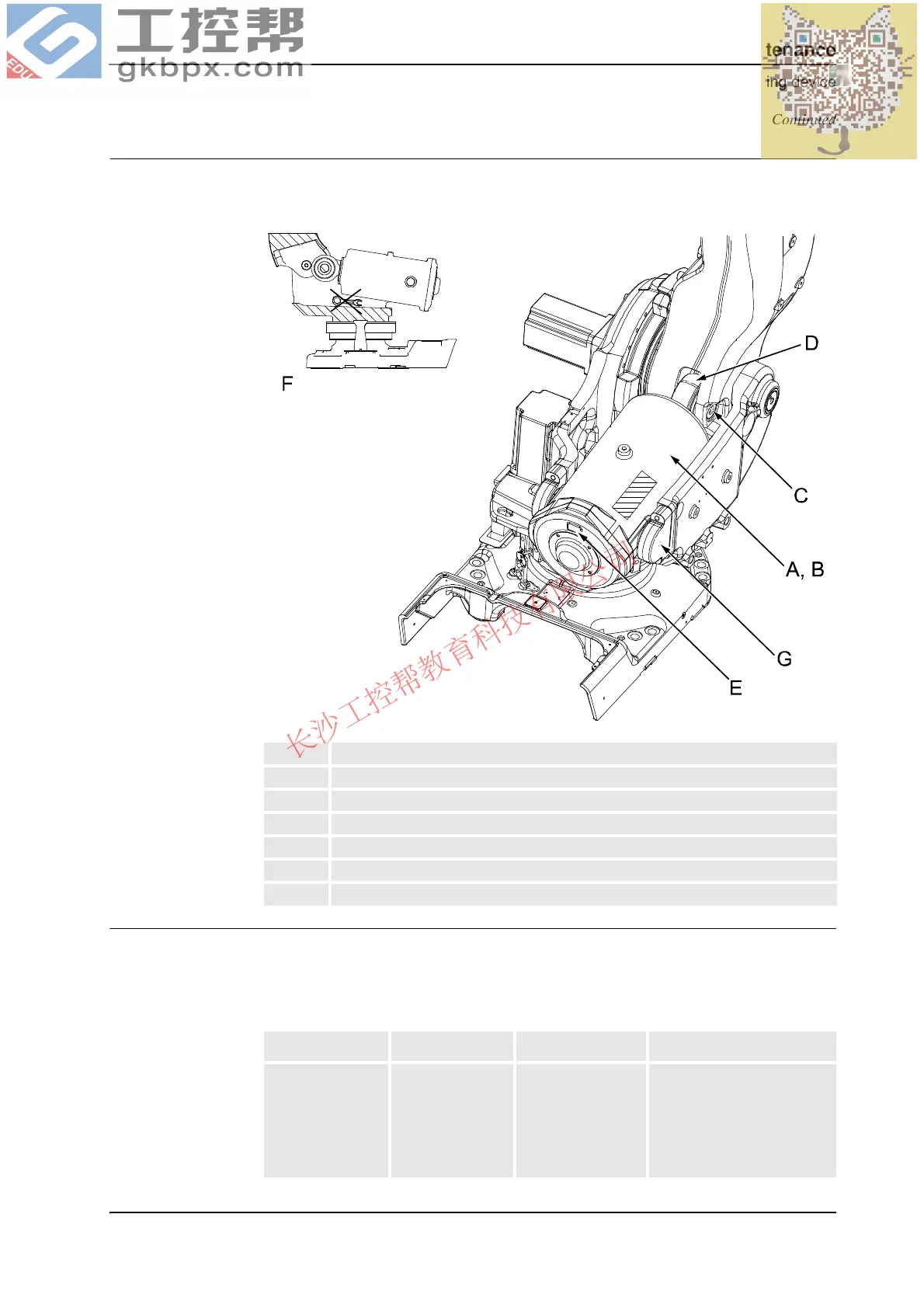

The balancing device is located at the top rear of the frame as shown in the figure below. The
figure also shows the inspection points, further detailed in the instructions.
xx0300000580
Required equipment
The table below specifies the equipment used if damage is detected on the balancing device.
See section Action at detected faults on page 168 to determine whether to perform
maintenance or upgrade!
A Balancing device
B Piston rod (inside)
C Shaft, including securing screw
D Ear, bearing and o-rings
E Label with article number
F Inspect the surroundings
G Bearing, balancing device attachments
Equipment, etc. Spare part no. Art. no. Note
Maintenance kit,
complete
3HAC15834-1 Includes:
• complete kit including
the kit with bearings
and seals
• instructions for main-
tenance.
Continued
Continues on next page
