3.3.7. Inspection, balancing device
3HAC022033-001 Revision: K172
© Copyright 2004-2011 ABB. All rights reserved.
Check for leakage
The front ear of the balancing device is lubricated with grease. After filling, excessive grease
may normally be forced out between the shaft and the sealing ring in the sealing spacer. This
is normal behaviour and must not be confused with incorrect leaks from the ear.
Leaks at the o-rings and/or sealings, are not acceptable and must be attended to immediately
in order to avoid any damage to the bearing!
Check the o-rings in the front ear of the balancing device for leaks, as shown and detailed
below.

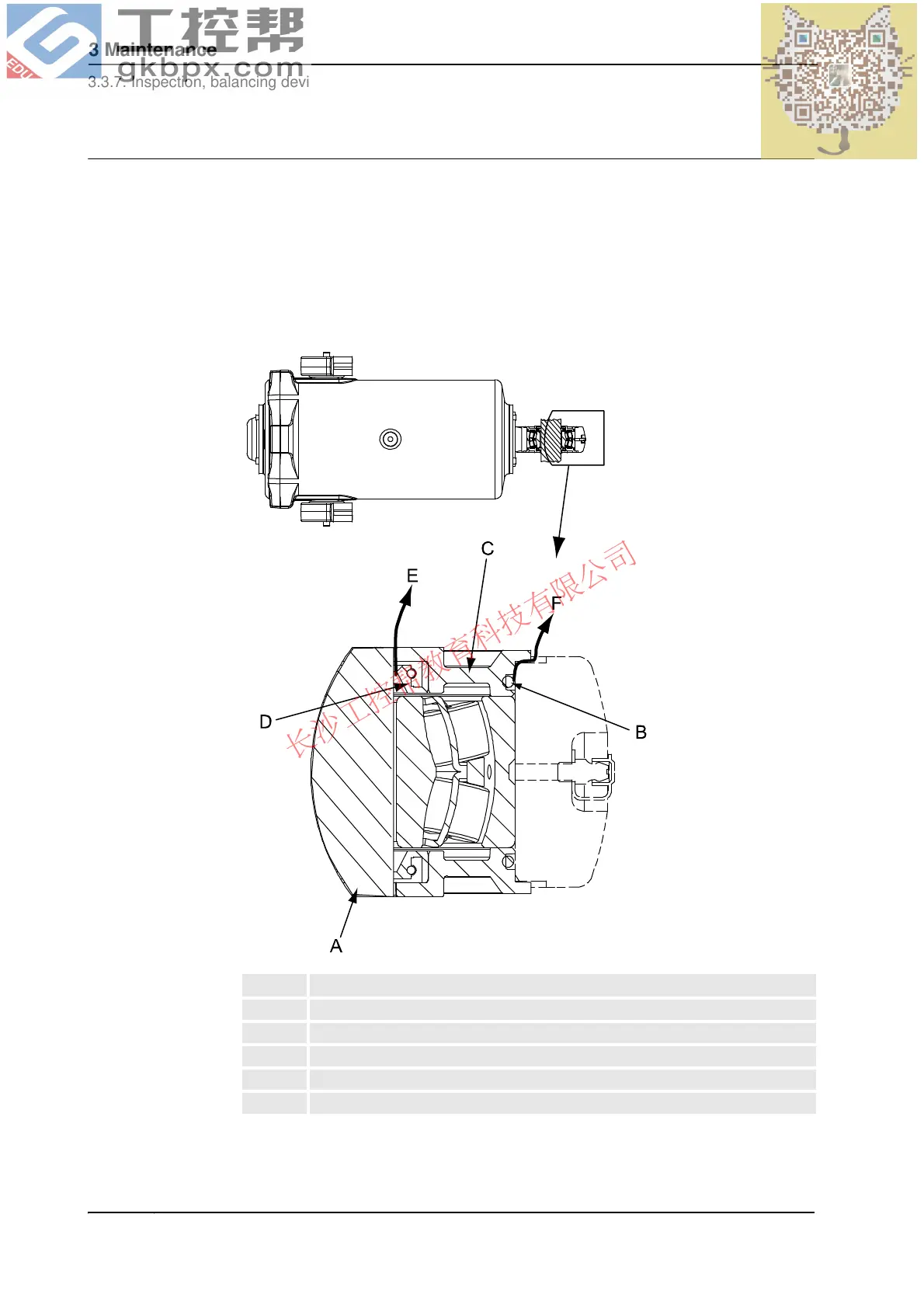

xx0300000284
A Shaft
B O-ring
C Sealing spacer
D Sealing ring in sealing spacer
E Correct way out for excessive grease from inside the front ear
F Incorrect leakage from the front ear
