2 Installation and commissioning
2.5.7. Securing the base plate
3HAC022033-001 Revision: K92
© Copyright 2004-2011 ABB. All rights reserved.

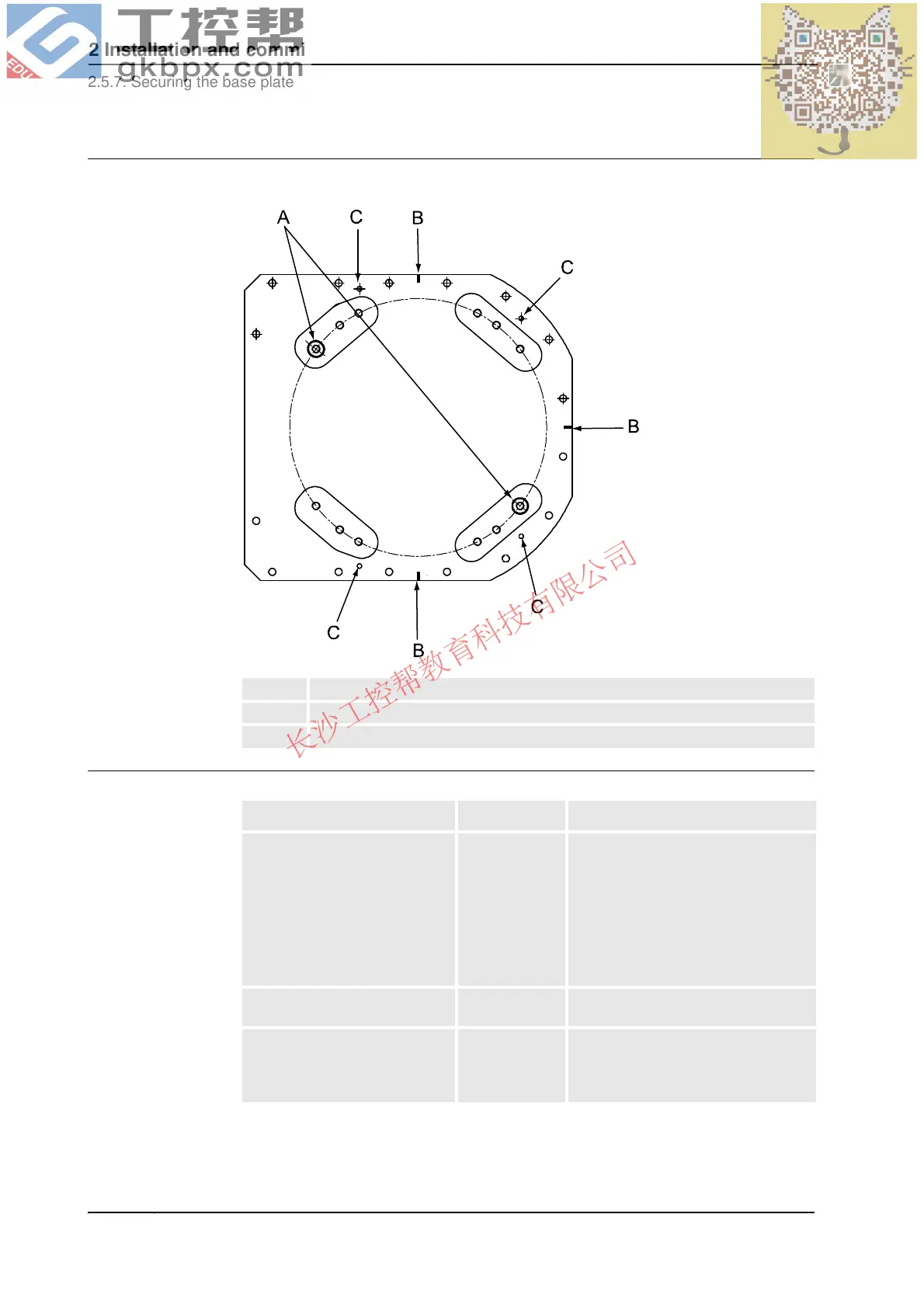

Base plate, grooves and holes
The illustration below shows the orienting grooves and guide sleeve holes in the base plate.
xx0300000045
Required equipment
A Guide sleeve holes (2 pcs)
B Orienting grooves (3 pcs)
C Levelling bolts, attachment holes (4 pcs)
Equipment Art. no. Note
Base plate 3HAC 12937-7 Includes
guide sleeves, 3HAC12937-3
levelling screws, 9ADA120-79
attachment screws and
washers for securing the robot
to the base plate.
A drawing of the base plate itself may
be ordered from ABB Robotics!
Standard toolkit - Content is defined in section Standard
toolkit on page 427.
Other tools and procedures may
be required. See references to
these procedures in the step-by-
step instructions below.
These procedures include references
to the tools required.
Continued
Continues on next page
