2 Installation and commissioning
2.5.8. Orienting and securing the robot
3HAC022033-001 Revision: K96
© Copyright 2004-2011 ABB. All rights reserved.
Hole configuration, base

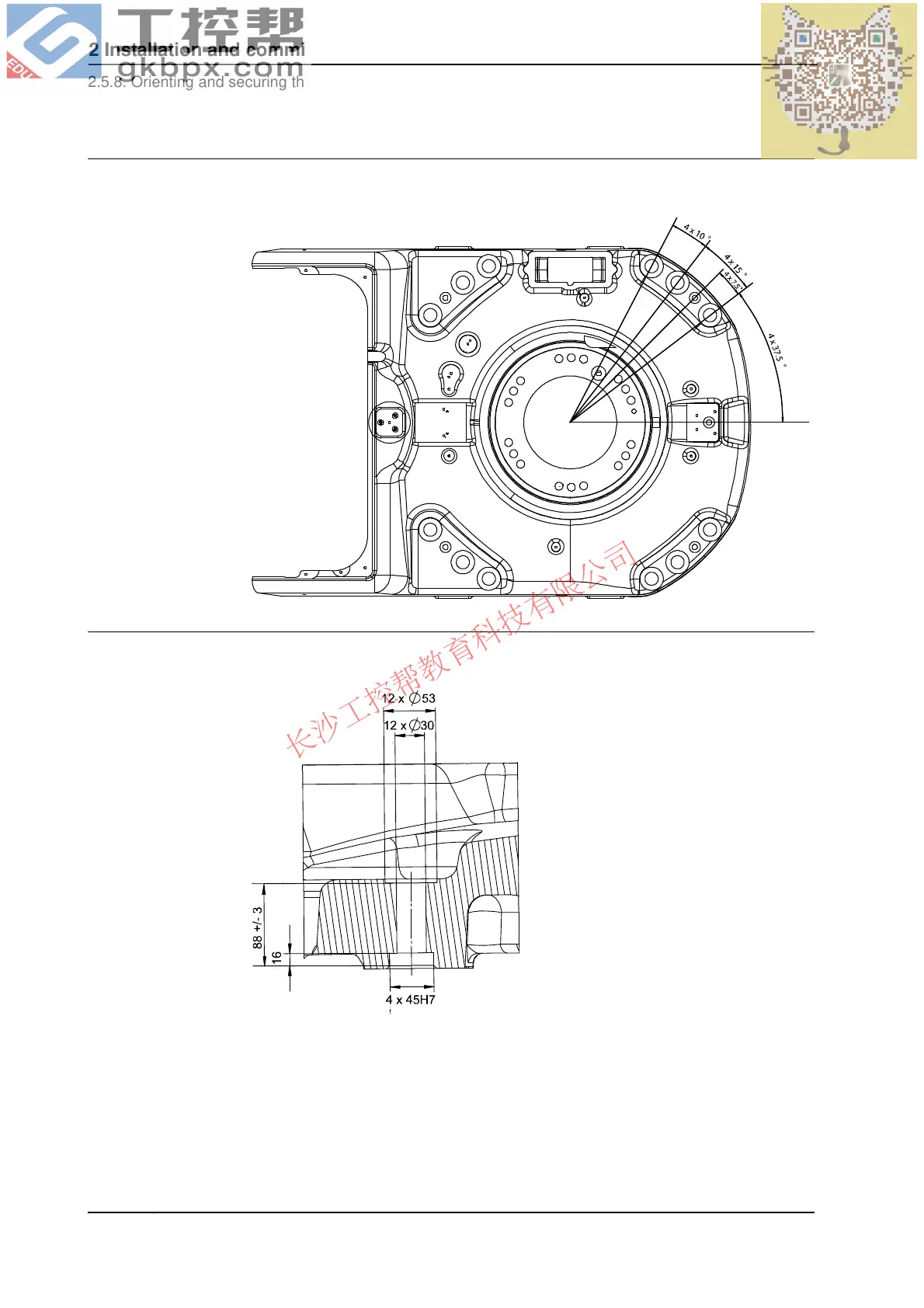

This illustration shows the hole configuration used when securing the robot.
xx0300000046
Cross section, guide sleeve hole
This illustration shows the cross section of the guide sleeve holes.
xx0100000109
Continued
