102 | XIO USER MANUAL | 2106424MNAA

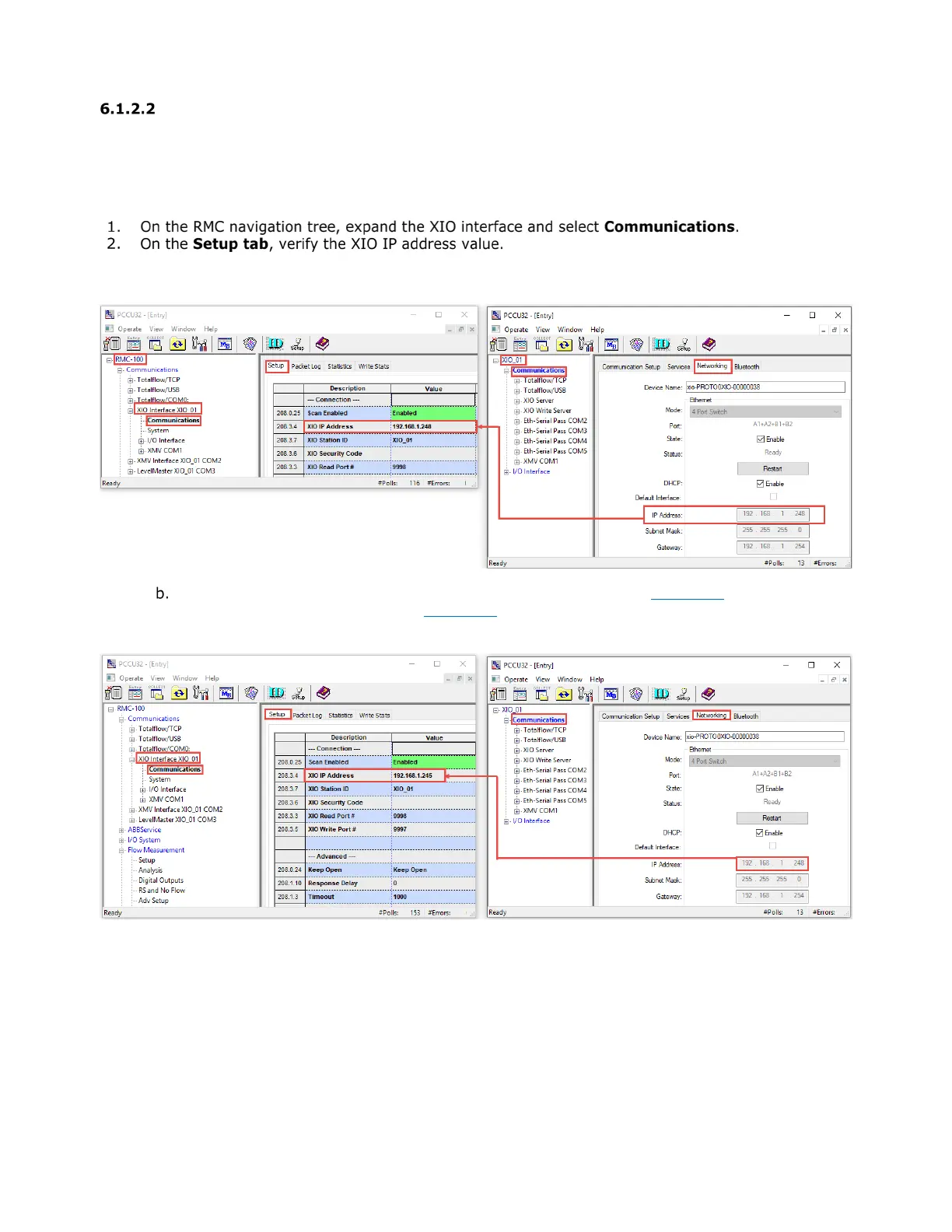

Verify that the RMC has the correct XIO IP address
If the XIO has a valid configuration, verify that the XIO IP address has been correctly configured on the
RMC. A mismatch in configuration prevents connection. Follow this procedure if you added the XIO
Interface from the RMC Application and License management tab and configured the IP address manually.
It is possible to type an incorrect address.
To verify:
a. Verify that the value matches the IP address in the XIO.
Figure 6-6: Correct XIO IP address – IP address match on both the RMC and XIO
If the IP value for the RMC does not match the value for the XIO (Figure 6-7), the RMC-XIO
status reflects connection failure (Figure 6-8).
Figure 6-7: Incorrect XIO IP address configured on the RMC
