XIO USER MANUAL | 2106424MNAA | 17
ID
Port
name
Connector
type
Data transfer rate
(port speed)
Use (connections)
3 Mbps over Bluetooth Actual
throughput-rate will be less
depending on number of device
connected, distance and
obstacles between device
antenna.
USB
USB Type Mini B
Supports USB 2.0 full speed
mode and high-speed mode
Local communication (high-speed
serial local operator interface)
Ethernet
A Network (1,
2)
RJ-45
10/100 Mbps Full Duplex (auto-
negotiable, not user
configurable)
Two ports: A1 and A2.
Connection to the corporate
network for data collection and
local connection
Ethernet
B Network
(1,
2)
RJ-45
100 Mbps Full Duplex
Two ports: B1 and B2.
Realtime data communication
between XIO and RMC
Serial
c
ommunicatio
n (COM 1 -
COM 8)
Removable
Terminal
connector (8
POS), spring-
cage termination
Baud Rate: 2,400 to 115,200
bps
(Manually configurable from the
user interface)
Remote or local serial
communication configurable for
either RS-232, RS-422 or RS-485
Serial communication ports
COM 1 to COM 8 are software-configurable for serial (RS-232, RS-485, or RS-422) communication
between the XIO and external measurement equipment such as pressure or temperature transmitters.
DANGER – Serious damage to health / risk to life. Explosion Hazard: Do not connect or
disconnect connectors or their terminations while energized unless the area is known to be non-
hazardous.
The configured interface type and the distance between the XIO and the connected external device
determine maximum serial communication speed. The supported port speed ranges from 2,400 bps to
115,200 bps.
XIO COM LEDs
There are two kinds of COM LED on the front of the XIO device.
– COM LEDs
– STATUS LEDs

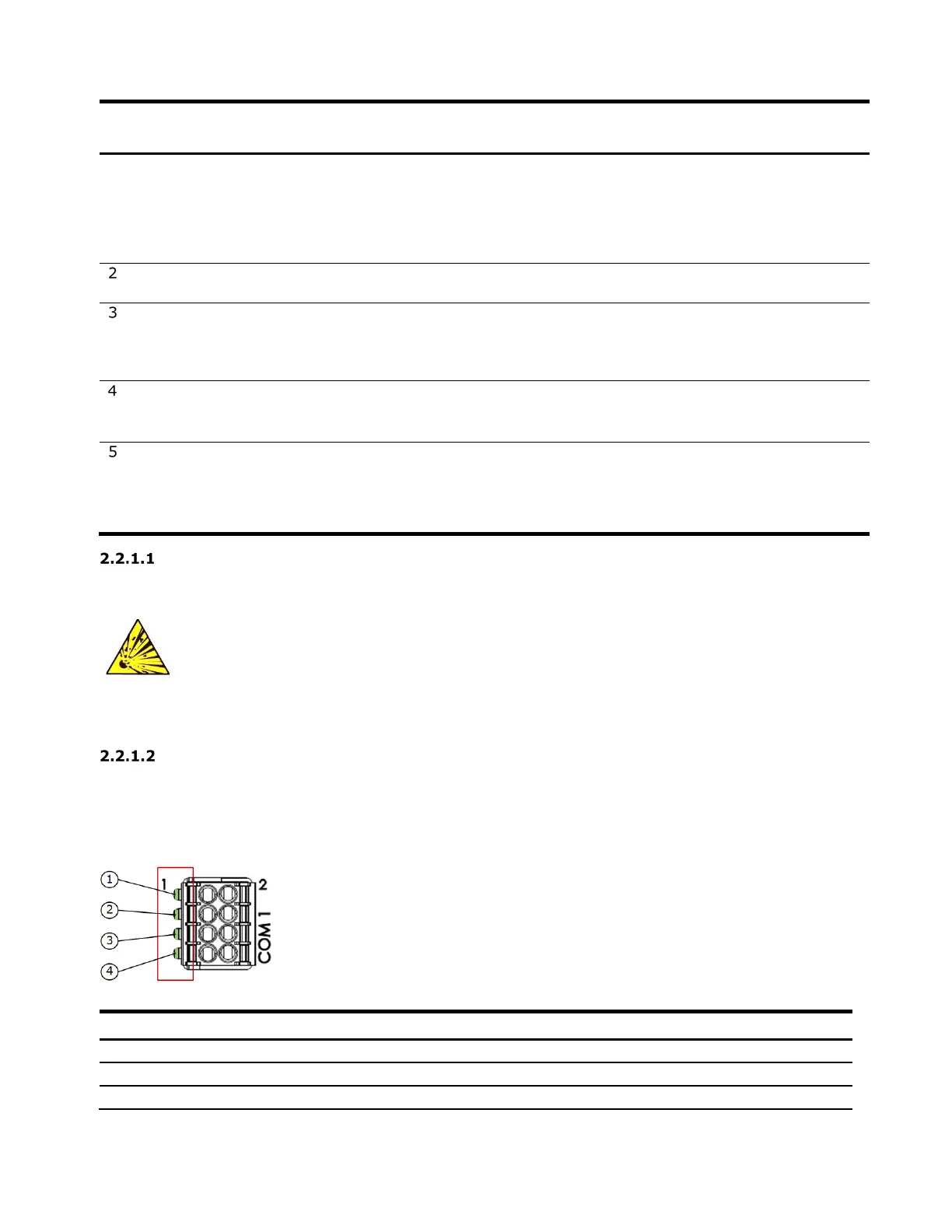

Figure 2-6: COM LEDs
Legend: COM LEDs
LED
ON
OFF
1
Port Enabled
Port Disabled
2
Port Power Output ON
Port Power Output OFF
3
Port TXD Activity
