XIO USER MANUAL | 2106424MNAA | 187

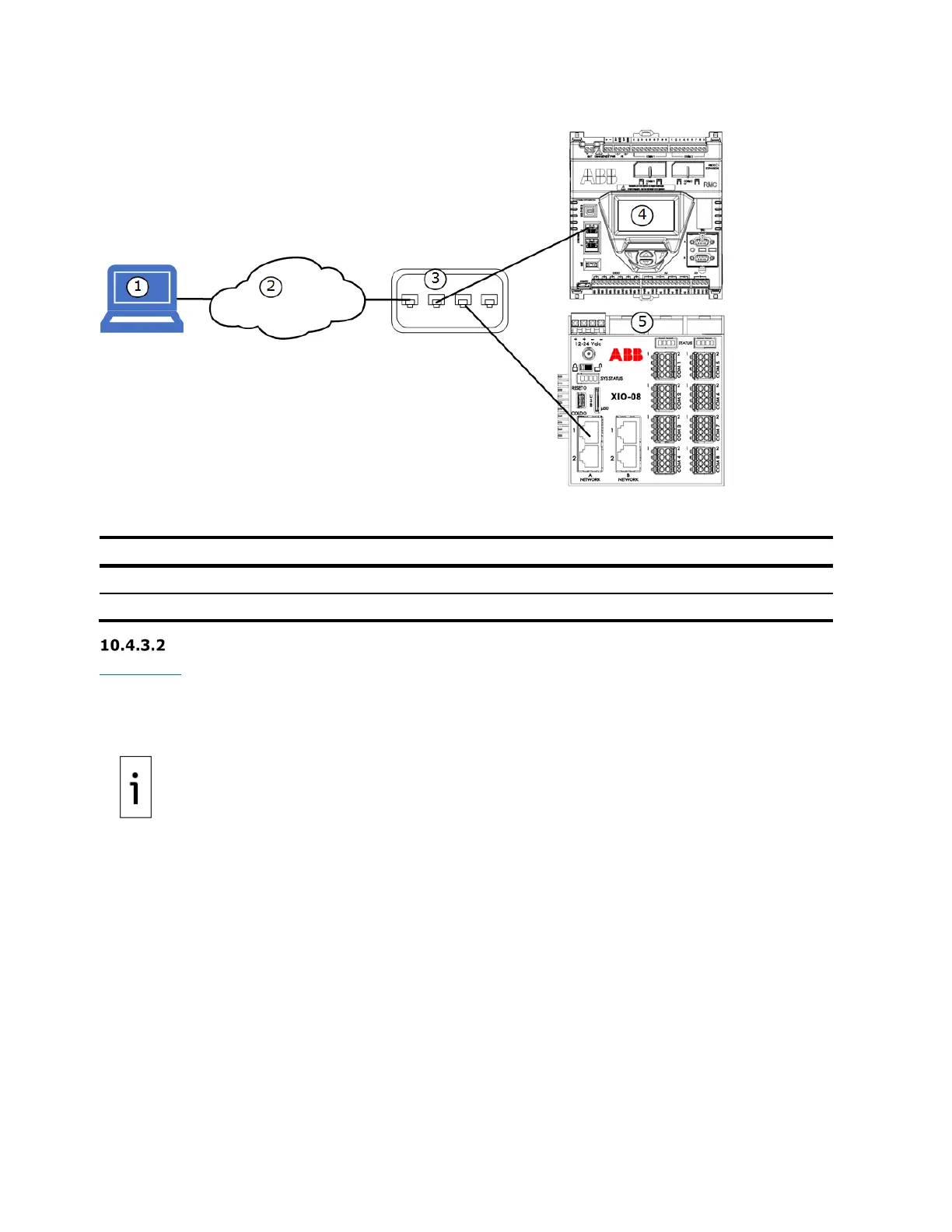

Figure 10-7: Remote access by host - supported physical connections (star topology)
Legend: Remote access by host – supported physical connections (star topology)
ID
Name
ID
Name
ID
Name
1
Host System with PCCU
3
Field Ethernet switch
5
XIO (Network connection on A1)
2
Customer (TCP/IP) network
4
RMC-100
Host connects to XIO daisy-chained to RMC
Figure 10-8 shows the network connection for the XIO through an RMC-100 in a daisy-chain topology. This
connection requires that the RMC-100 Ethernet interfaces are configured in 1 Network mode. This mode
allows the RMC-100 to behave as a 2-port switch to switch traffic between the network and the XIO. This
scenario may be necessary when there are not additional ports available on a field network switch.
IMPORTANT NOTE:
When the XIO is in 4-port switch mode, any of the E
thernet ports (A1,
A2, B1 or B2)
are usable to connect to the RMC-100. Move the connection to any of the
ports without
reconfiguration of the IP address of the XIO.
