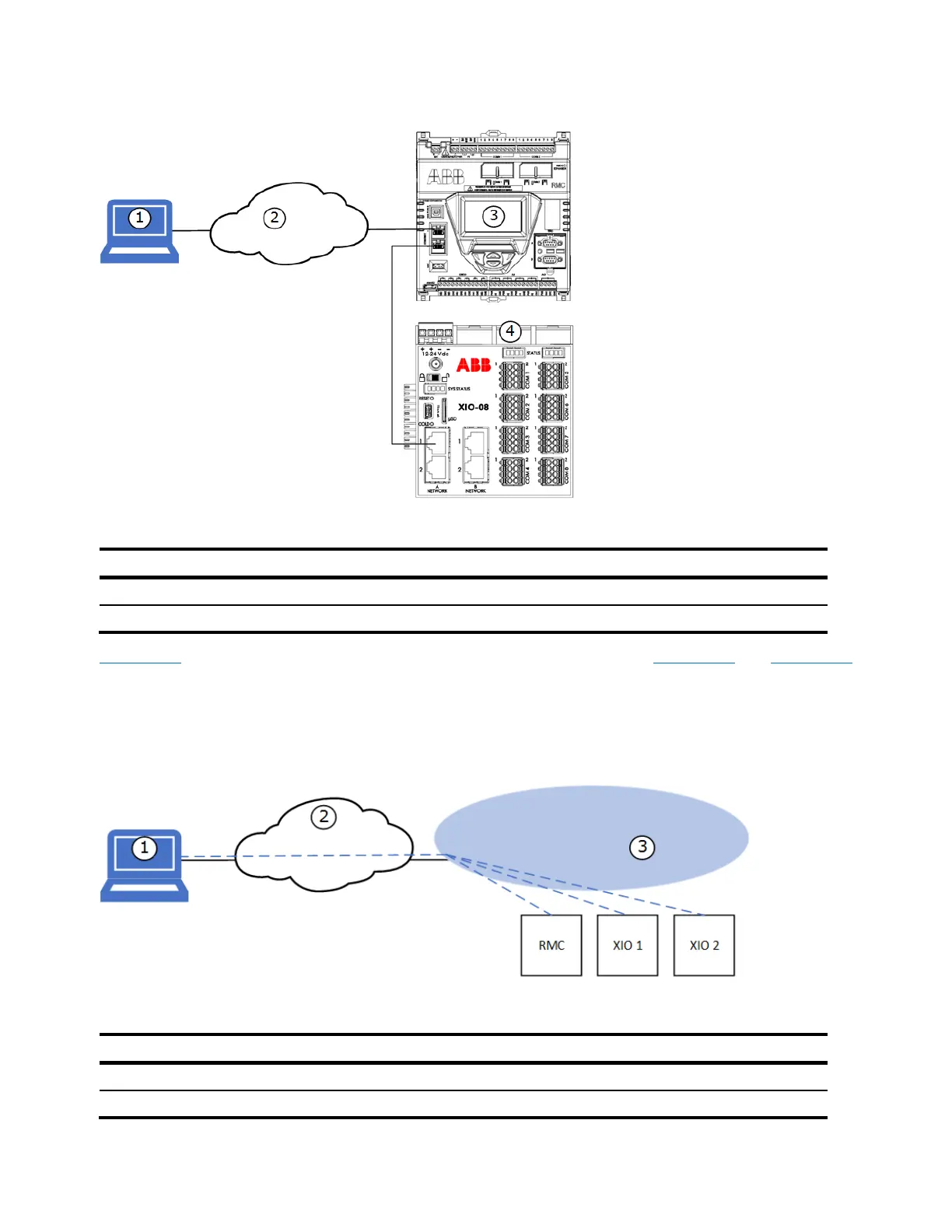

Figure 10-8: Remote access by host – supported physical connections (daisy chain topology)
Legend: Remote access by host – supported physical connections (daisy chain topology)
ID
Name
ID
Name
1
Host system with PCCU
3
RMC (Ethernet ports configured in 1-Network Mode)
2
Customer (TCP/IP) network
4
XIO
Figure 10-9 shows the logical network equivalent to the connections shown in Figure 10-7 and Figure 10-8
above. A remote system with PCCU (1) can establish connections to each device (connected to local
switch or daisy-chained) on the same network (3). Each device must have an IP address with the same
subnet assigned to the network. Note that connections lines on the diagram are independent logical
TCP/IP based connections to each device (from a PCCU instance for each). The host connects to the
corporate network (2).
Figure 10-9: Remote access by host – logical connections
Legend: Remote access by host – logical connections
ID
Name
ID
Name
1
Host system with PCCU
3
Field network
2
Customer (TCP/IP) network
