40 | XIO USER MANUAL | 2106424MNAA

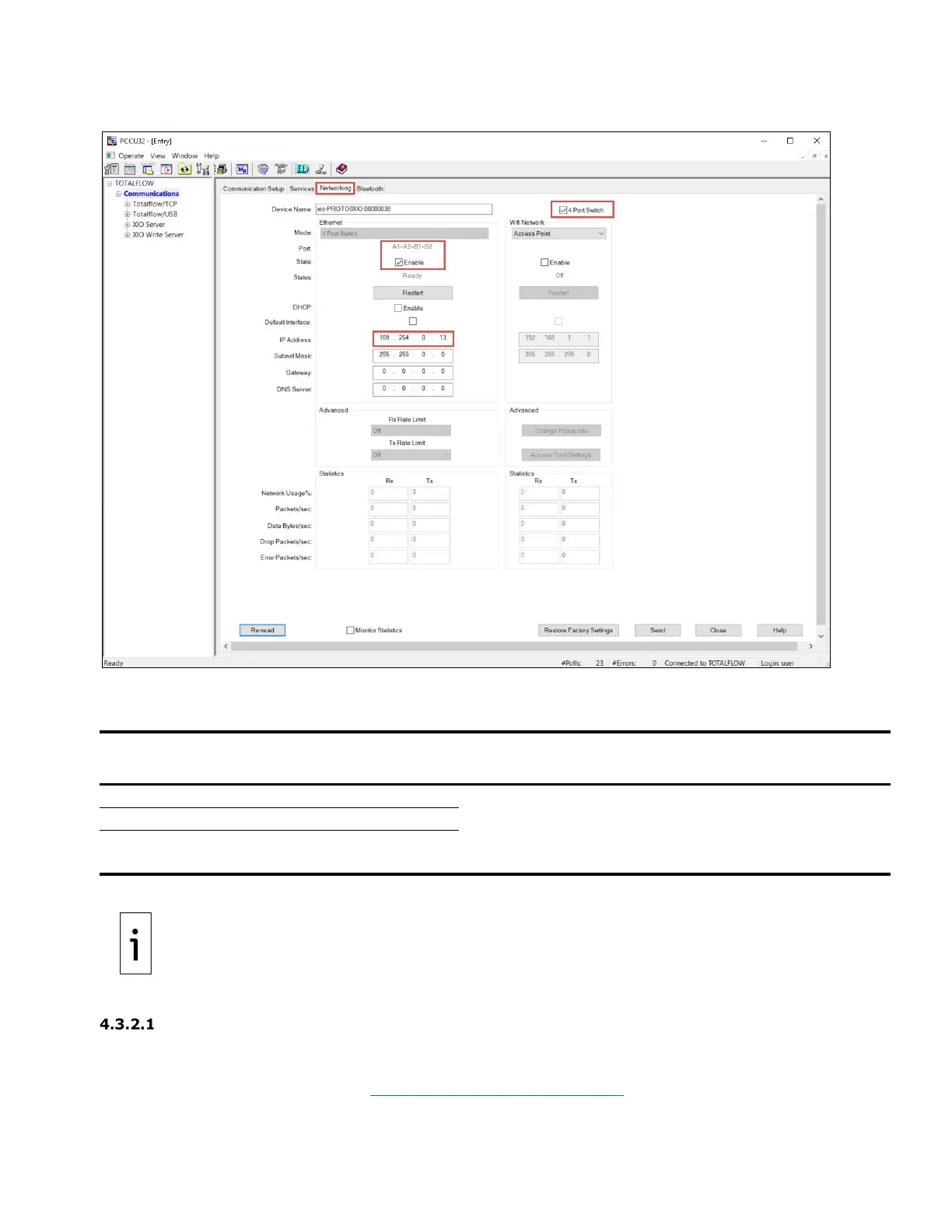

Figure 4-8: Default IP configuration
The following table lists the cabling details for connecting to the XIO Ethernet ports.
Table 4-2: Ethernet cabling
(with Ethernet 10/100 BaseT ports)
Required cabling termination
(connectors) or adaptors
ABB part number
Host system (operator laptop or computer)
Straight-through Ethernet CAT 5
cable with RJ-
ends.
Maximum distance:
100 meters
(328 feet)
Network device (Ethernet hub, switch or router)
Other Totalflow devices: additional XIOs, RMCs,
flow computers, and analyzers
Operators can initially connect to any of the 4 ports and use the same factory
default address when the XIO is configured in 4
-port switch mode. For other modes and
configurations, use the appropriate IP address
and port for local communication. Access to an
Ethernet port for direct connection depends on the final connection topology of the XIO and other
devices after the installation is complete.
Configure the host system
Configuration of the host system may or may not be needed:
– If the laptop is configured to automatically obtain the IP address, do not change the TCP/IP
configuration. Proceed to section 4.3.2.2 Set up PCCU32 and connect
.
