3. INSTALLATION OF THE SWITCHGEAR AT SITE 19
one screw
3
with dished washer
4
for each
bracket.
• Slide one slot rod
6
into the front slot of the
front section and one into the rear slot of the
rear section. Fasten the slot rods in position by
inserting the grub screws.
• Place the following foundation frame in the
correct position on the floor, allowing the
inserted slot rods to slide into the sections of
the frame to be installed. Bolt the foundation
frames together with three M 8 x 100 cheese
head screws
7
and nuts and washers. Tighten
the grub screws in the slot rods.
—

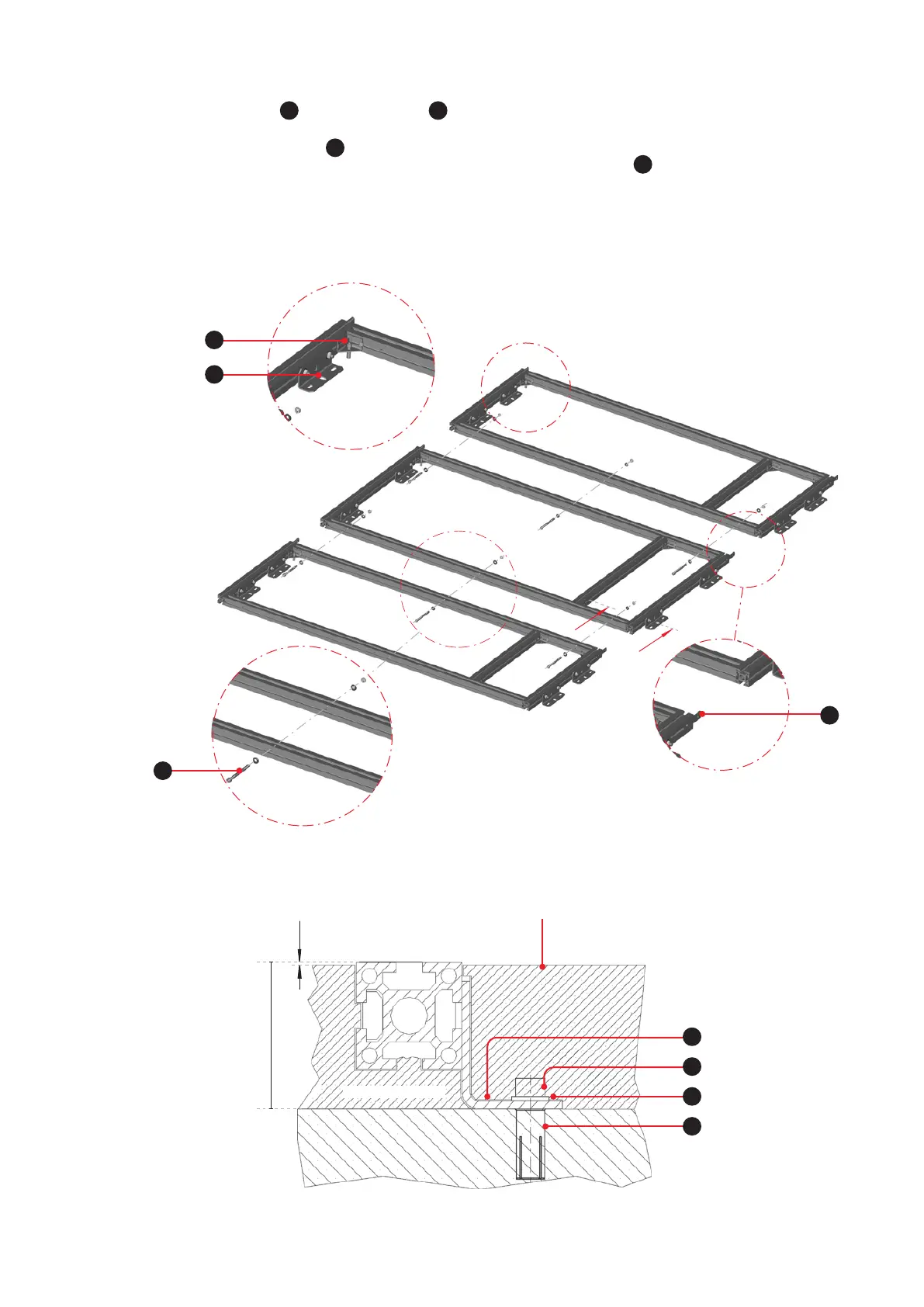

Fig. 3.2.1.1.1:
Installation of the
floor frame made of
aluminum profiles
Section A-A
Top of
finished floor
A
A
55 ± 5
< 3
rear
front
Topping material
2
1
7
6
2
3
4
5
