50 ZX2 GAS-INSULATED MEDIUM VOLTAGE SWITCHGEAR
• First fit the C section above the transformer
cover. Use the available transformer fastening
screws.
• Screw the two side plates to the inside of the
transformer cover.
• Screw the rear cover to the side covers.
• Finally fasten the top plate to the plates previ-
ously fitted.
—

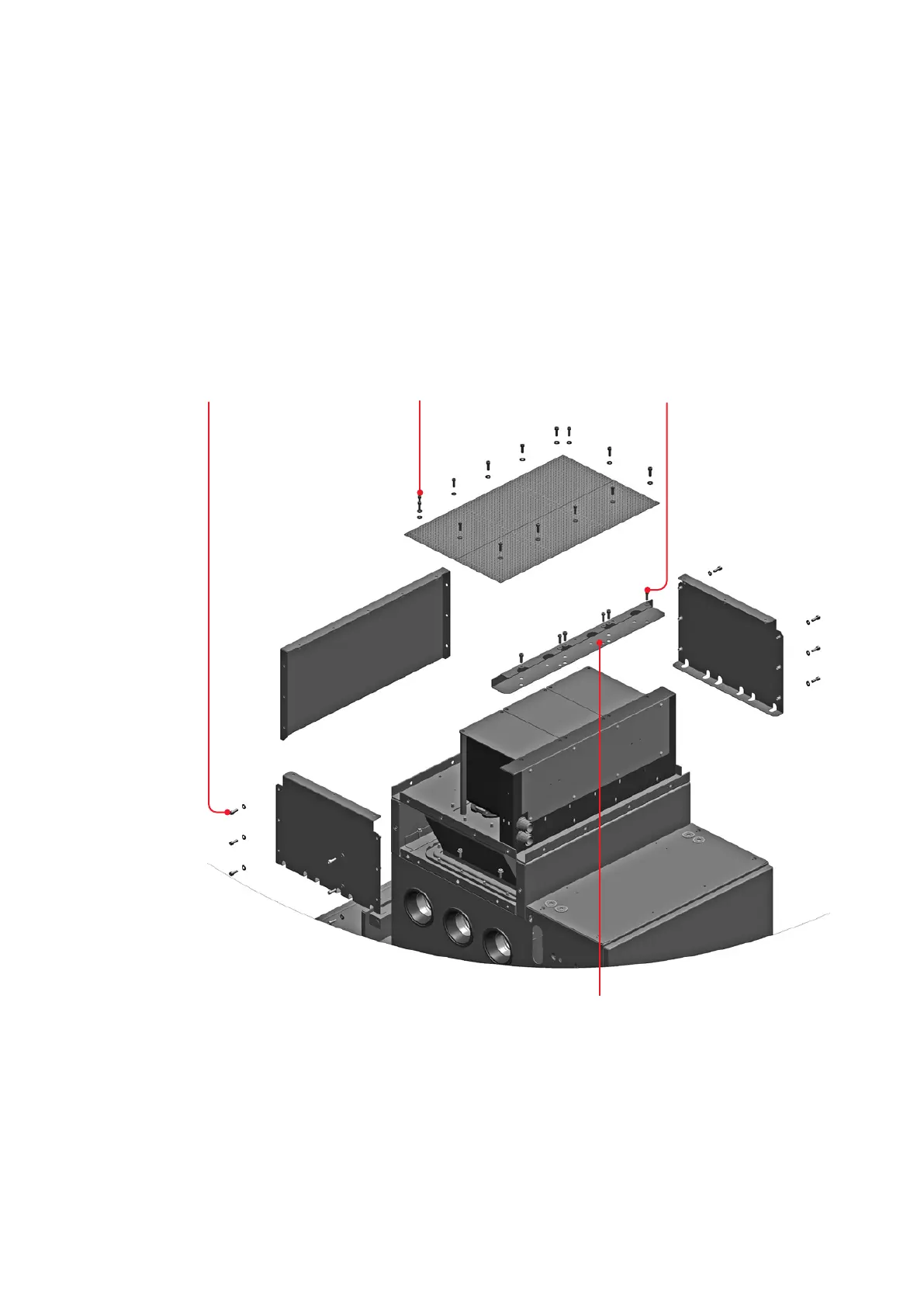

Fig. 3.3.7.3.7:
Installation of the casing
14 x cheese head screw M 8 x 25 DIN 912
14 x dished washer 8 DIN 6796
C-Profile
12 x cheese head screw M 8 x 25 DIN 912
12 x dished washer 8 DIN 6796
6 x cheese head screw M 10 x 25 DIN 912
