MC81F4204
130 April 24, 2012 Ver.1.41
Before executing Stop instruction, Basic Interval Timer must be set properly
by software to get stabilization time which is longer than 20ms.

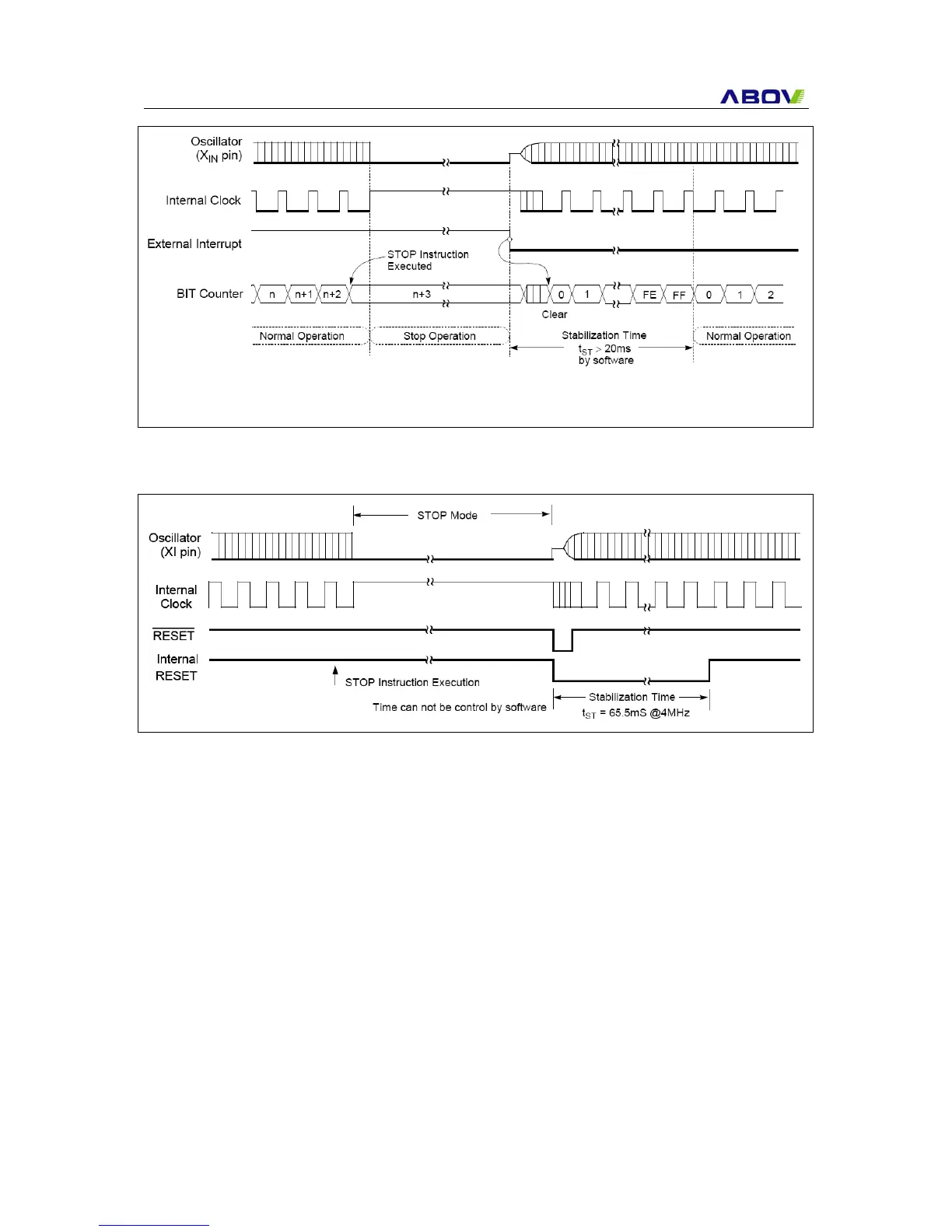

Figure 23-4 STOP Mode Release Timing by External Interrupt
Figure 23-5 Timing of STOP Mode Release by Reset
