Acer One 522 - WLAN (Wireless Local Area Network) Module Removal; WLAN Module Installation

3-18 Machine Maintenance Procedures
WLAN (Wireless Local Area Network) Module Removal 0
Prerequisite:
Lower Cover Door Removal
1. Locate module (B) on lower cover. (Figure 3-9)
2. Disconnect main (D) and auxiliary (E) antenna cables from module. (Figure 3-14)

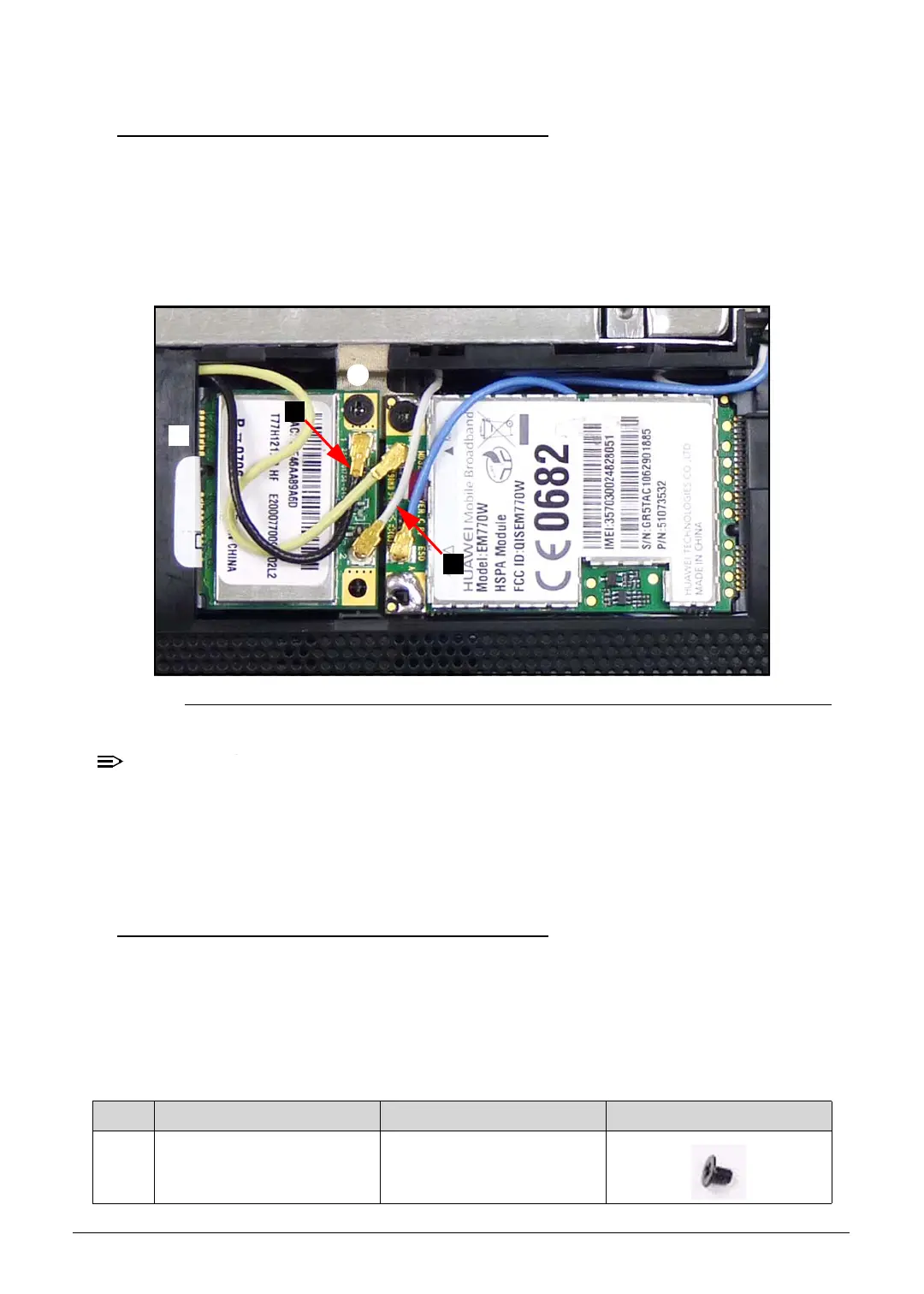

Figure 3-14. WLAN Module with Antenna Cables
NOTE:
NOTE:
Main (black) antenna connector is close to ODD module. Auxiliary (white) antenna
connector is close to battery bay.
3. Remove screw (C) from mainboard.
4. Remove module from mainboard connector (F).
WLAN Module Installation 0
1. Connect module to mainboard connector (F) (Figure 3-14).
2. Install and secure screw (C) to mainboard.
3. Connect main (D) and auxiliary (E) antenna cables to WLAN module connectors.
4. Install lower cover door.
ID Size Quantity Image
C M2x3 t=0.04 1
C
F
D
E
