LCD (Liquid Crystal Display) Module Removal 0
Prerequisite:
Mainboard Removal
1. Locate 3G and WLAN cables on lower cover. (Figure 3-37)
2. Remove 3G and WLAN antenna cables from lower cover guides (A).

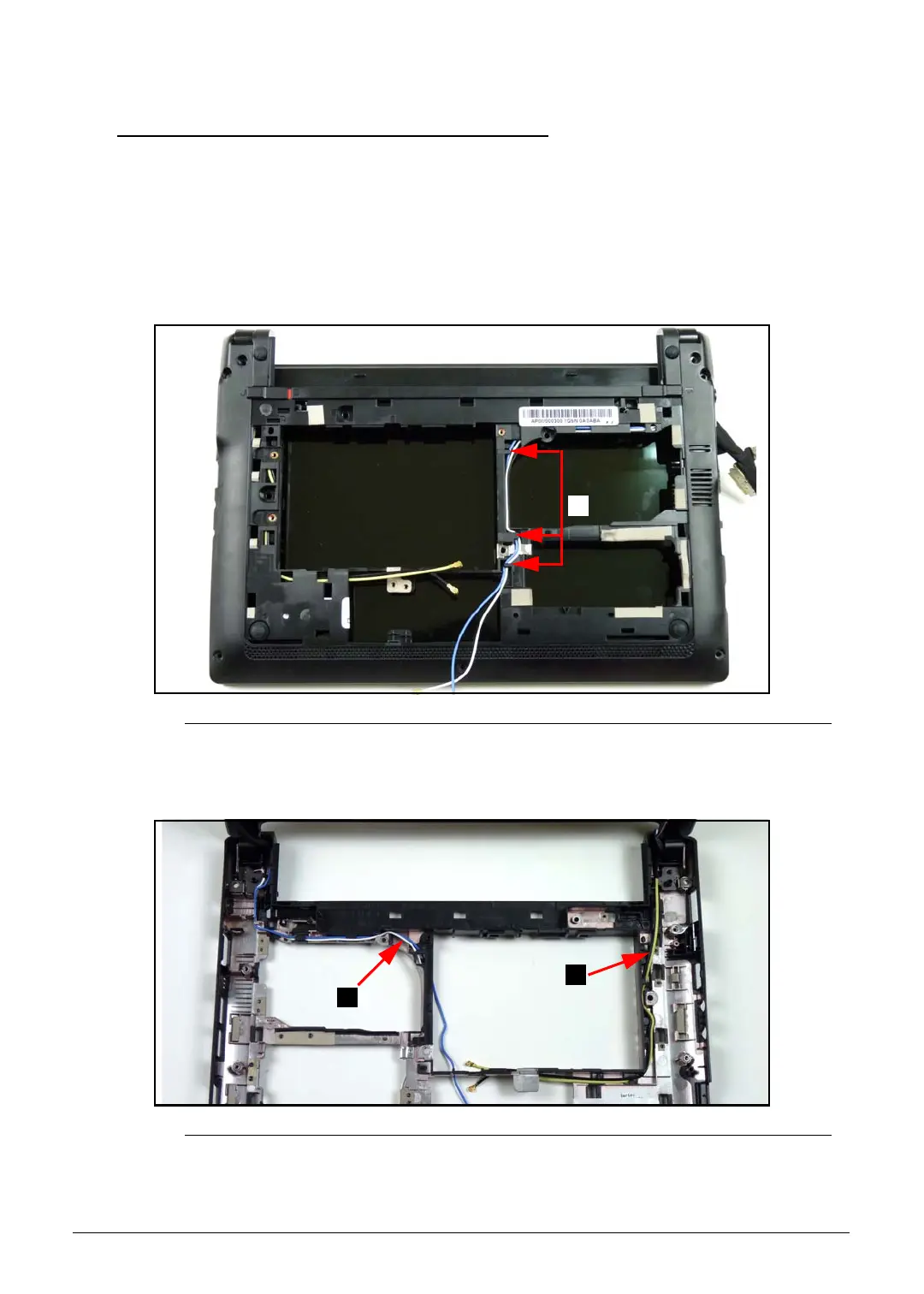

Figure 3-37. Lower Cover Base View with Antenna Cables
3. Flip computer over onto lower cover base. (Figure 3-38)
Figure 3-38. Lower Cover with 3G and WLAN Antennas Cables
4. Disconnect 3G and WLAN antenna cables (B) from lower cover guides.
To Next Page
