Acer One 522 - HDD Module Installation

Machine Maintenance Procedures 3-15

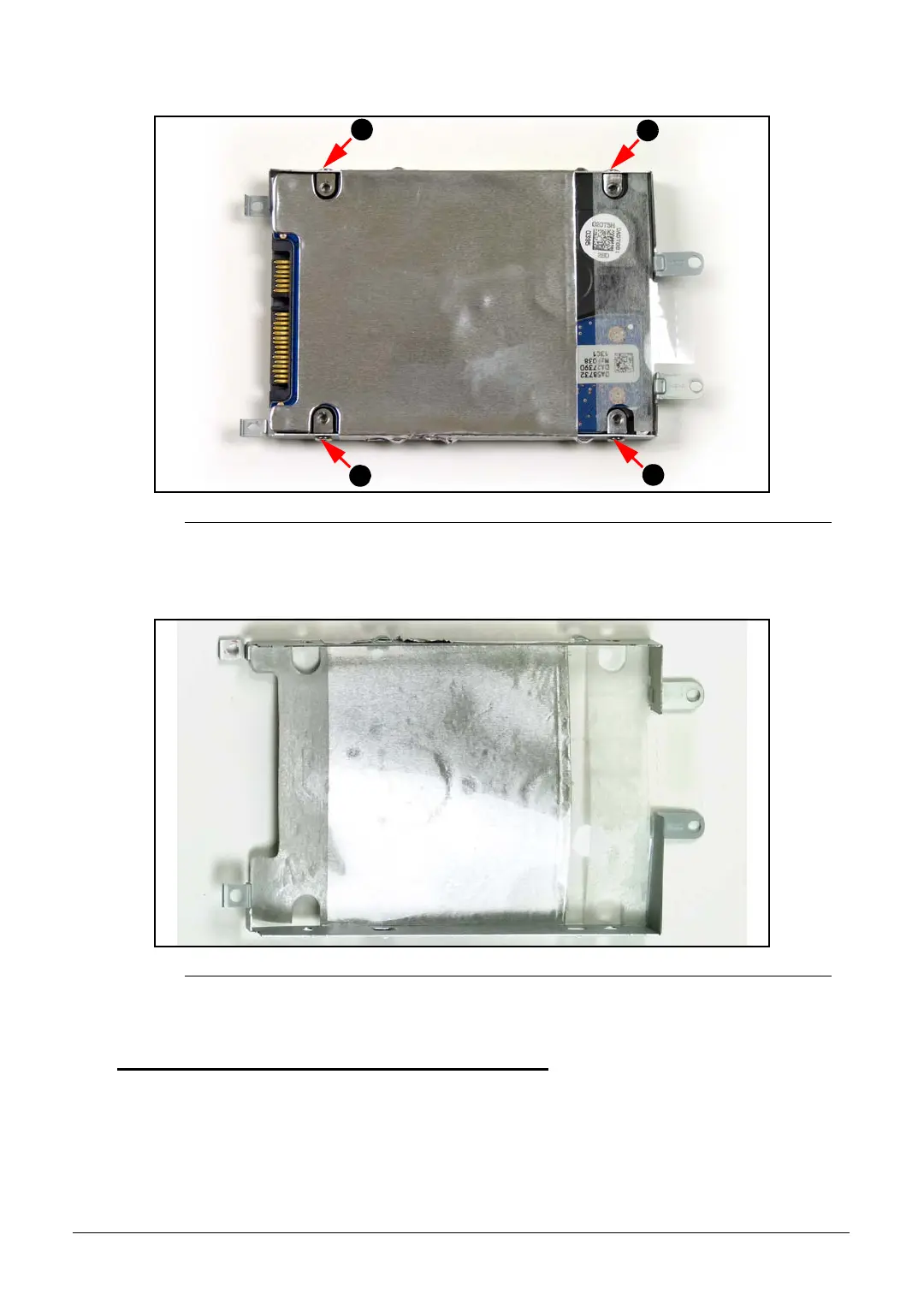

Figure 3-11. HDD Carrier with Module
6. Remove HDD module from carrier.
Figure 3-12. HDD Carrier without Module
HDD Module Installation 0
1. Install module in carrier. (Figure 3-11)
2. Install and secure four (4) screws (H) to module.
3. Place module into bay. (Figure 3-10)
4. Connect module to mainboard connector (G).
H
H
H
H
