Acer One 522 - Mainboard Removal

Machine Maintenance Procedures 3-29
Mainboard Removal 0
Prerequisite:
Function Board Removal
1. Locate mainboard (D) on lower cover. (Figure 3-22)
2. Disconnect DC-IN cable (E) from mainboard connector (F). (Figure 3-26)

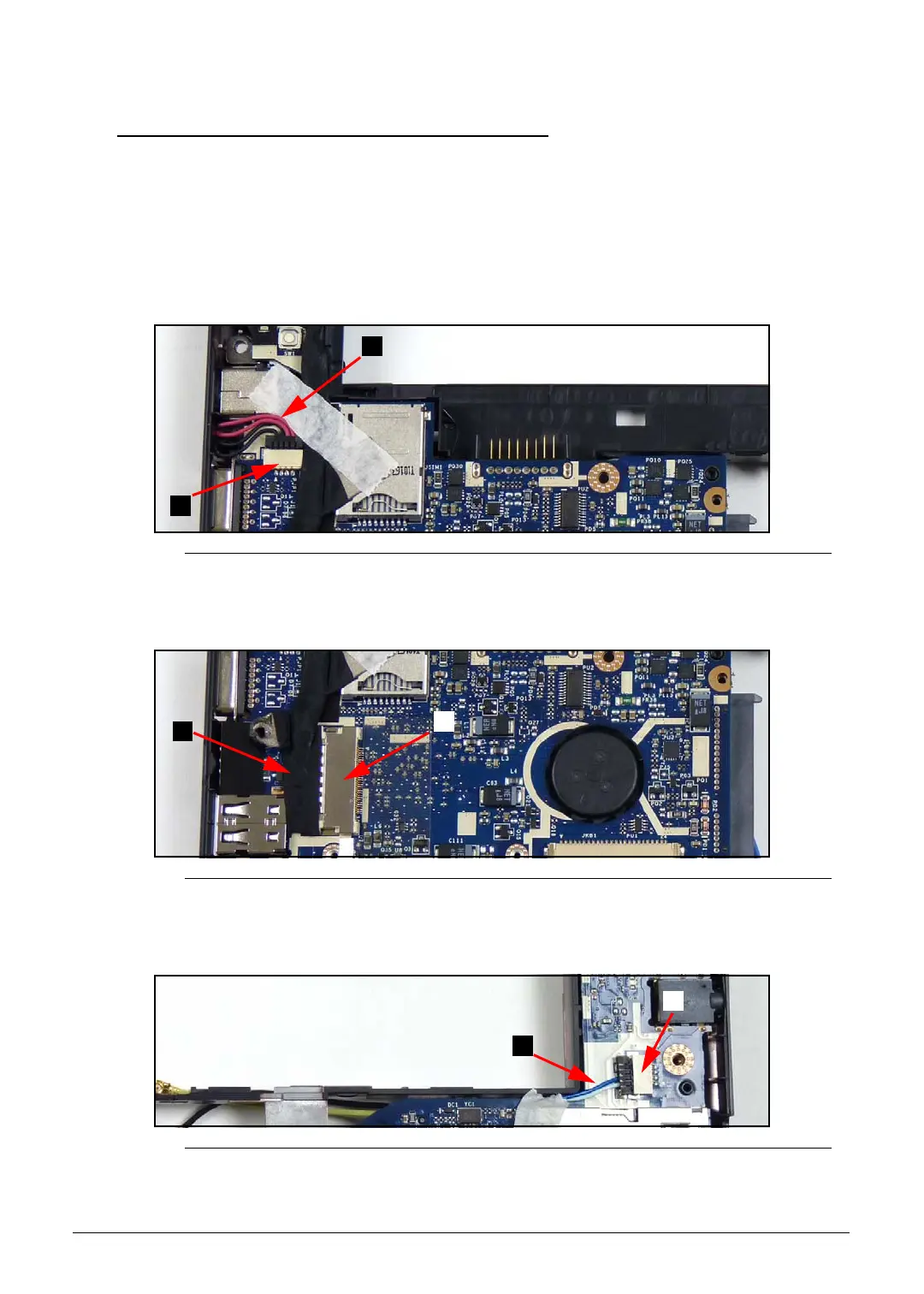

Figure 3-26. DC-IN Cable and Mainboard Connector
3. Disconnect LVDS cable (G) from mainboard connector (H). (Figure 3-27)
Figure 3-27. LVDS Cable and Mainboard Connector
4. Disconnect speaker cable (J) from mainboard connector (K). (Figure 3-28)
Figure 3-28. Speaker Cable and Mainboard Connector
E
F
G
H
J
K
