Thermal Module Installation 0
IMPORTANT:
+
Apply suitable thermal grease and ensure all heat pads are in place before
replacing
module.
CAUTION:
!
Make sure thermal grease does not spill on mainboard because it may cause
damage.
The following thermal grease types are approved for use:
Silmore GP50
Honeywell
Jet Motor 7762
The following thermal pads are approved for use:
Eapus XR-PE
1. Remove all traces of thermal grease from CPU using a lint-free cloth or cotton swab and
Isopropyl Alcohol, Acetone, or other approved cleaning agent.
2. Apply small amount of thermal grease to center of CPU.
NOTE:
NOTE:
Force used during installation of thermal module is sufficient to spread grease over
CPU top.

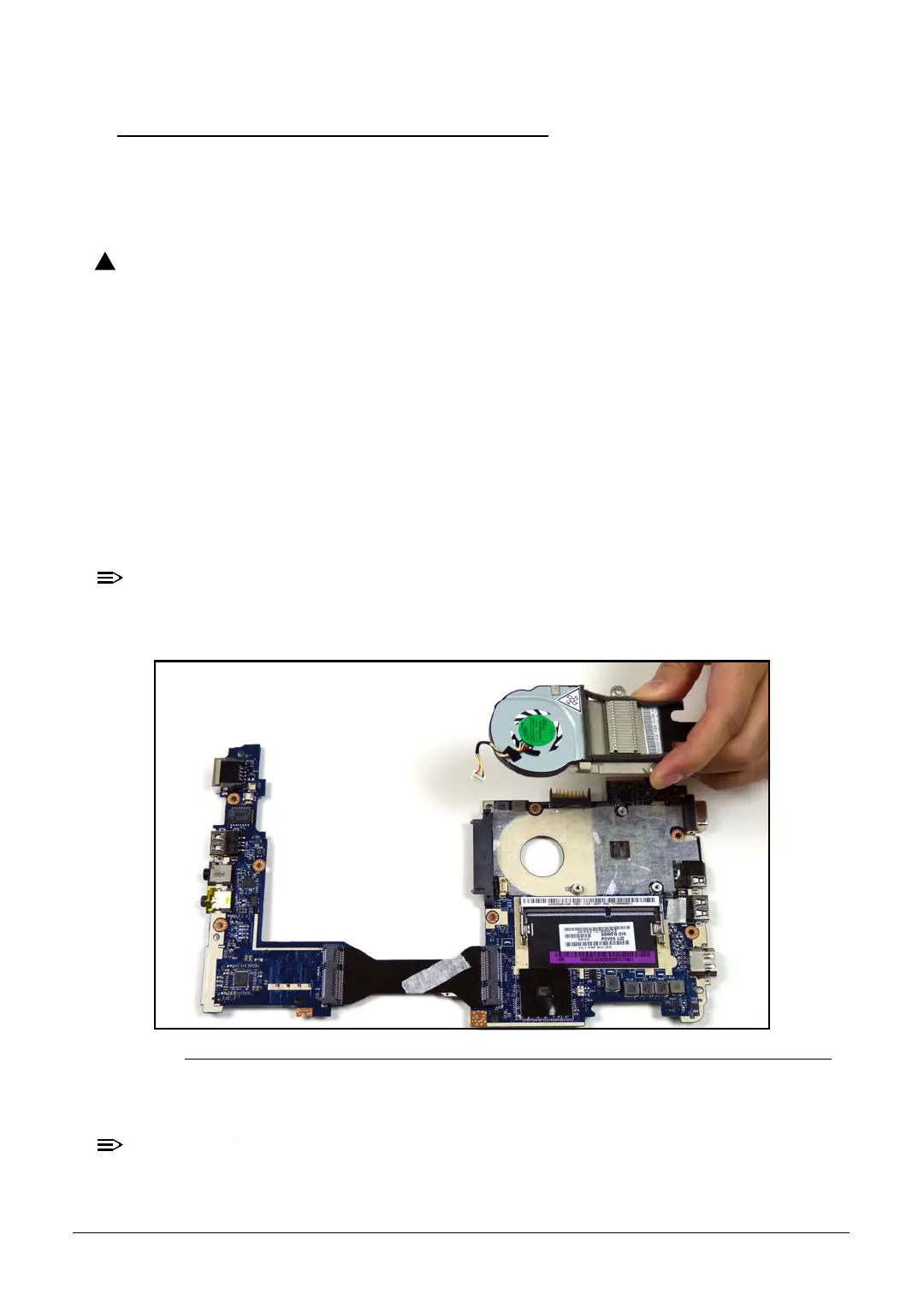

Figure 3-34. Thermal Module Installation
3. Align module and heatsink to mainboard screw holes. (Figure 3-34)
NOTE:
NOTE:
Keep module level to spread grease evenly.
