3-22 Machine Maintenance Procedures
Upper Cover Installation 0
1. Install and secure upper cover latches on lower cover. (Figure 3-19)
2. Install and secure four (4) screws (B) to mainboard. (Figure 3-17)
3. Turn computer over to show lower cover.
4. Install and secure seven (7) screws (A) to upper cover. (Figure 3-16)
5. Install lower cover door.

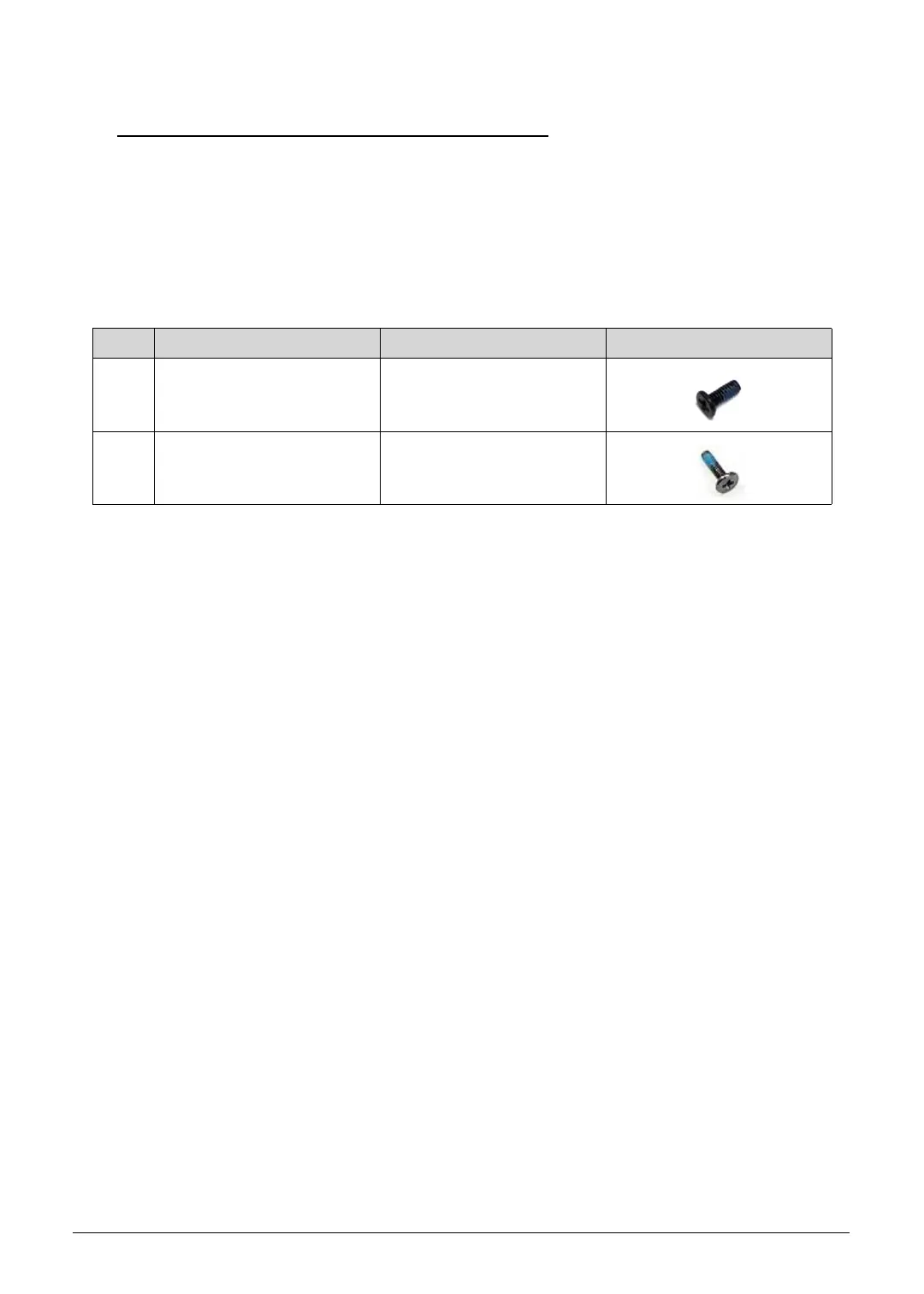

ID Size Quantity Image
AM2x5 7
BM2x7 4
