Machine Maintenance Procedures 3-27
Bluetooth Module Removal 0
Prerequisite:
Upper Cover Removal
1. Locate Bluetooth module (B) on upper cover. (Figure 3-22)
2. Disconnect module cable (D) from mainboard connector (C). (Figure 3-24)

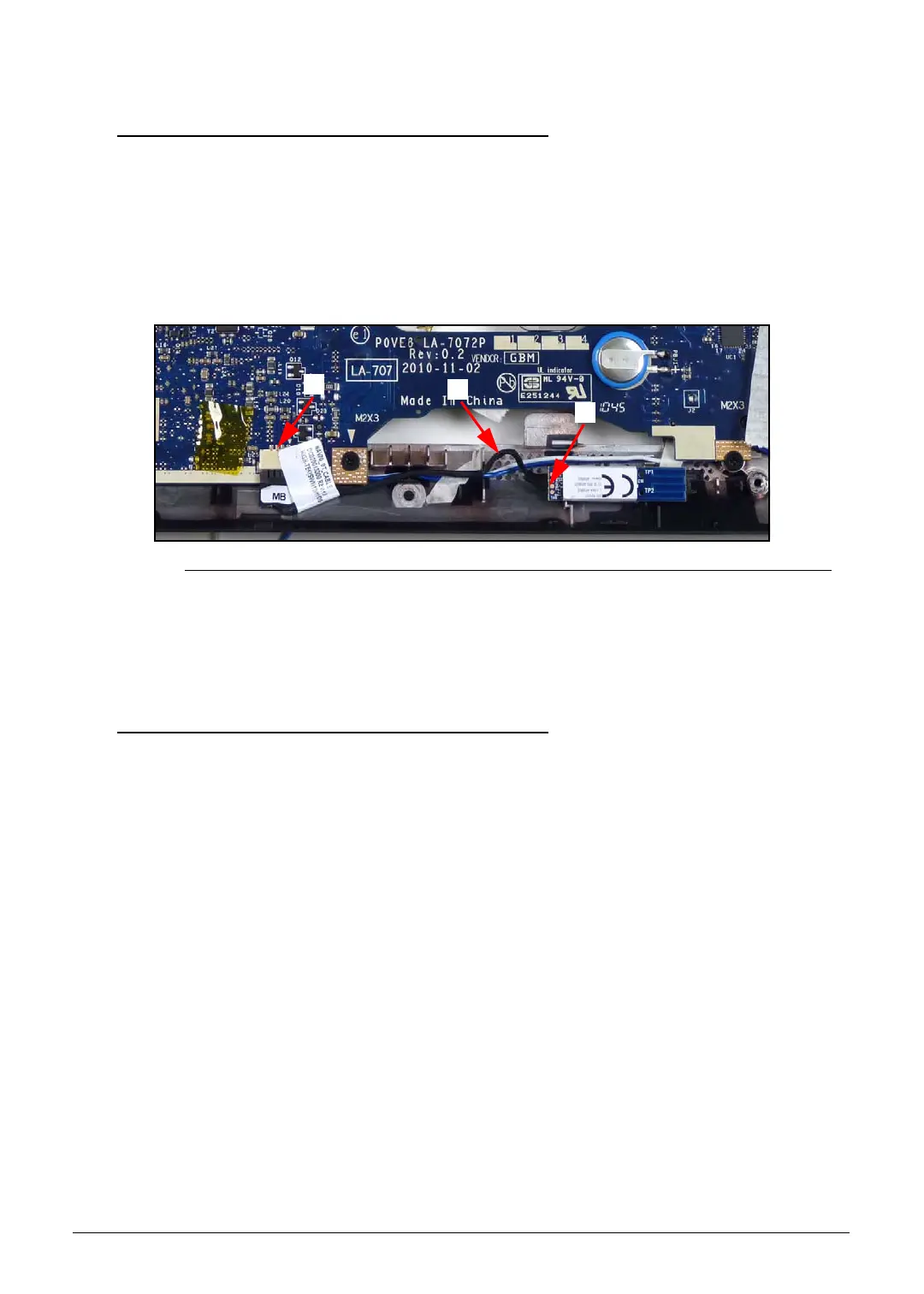

Figure 3-24. Bluetooth Module with Cable
3. Lift module from adhesive strip on upper cover.
4. Disconnect module cable (D) from module connector (E).
Bluetooth Module Installation 0
1. Connect module cable (D) to module connector (E). (Figure 3-24)
2. Install and secure module to adhesive strip on upper cover.
3. Connect module cable (D) to mainboard connector (C).
4. Install upper cover.
