Acer One 522 - Lower Cover Door Installation

Machine Maintenance Procedures 3-13
Lower Cover Door Installation 0
1. Insert door flanges (Figure 3-8) into slots on lower cover.

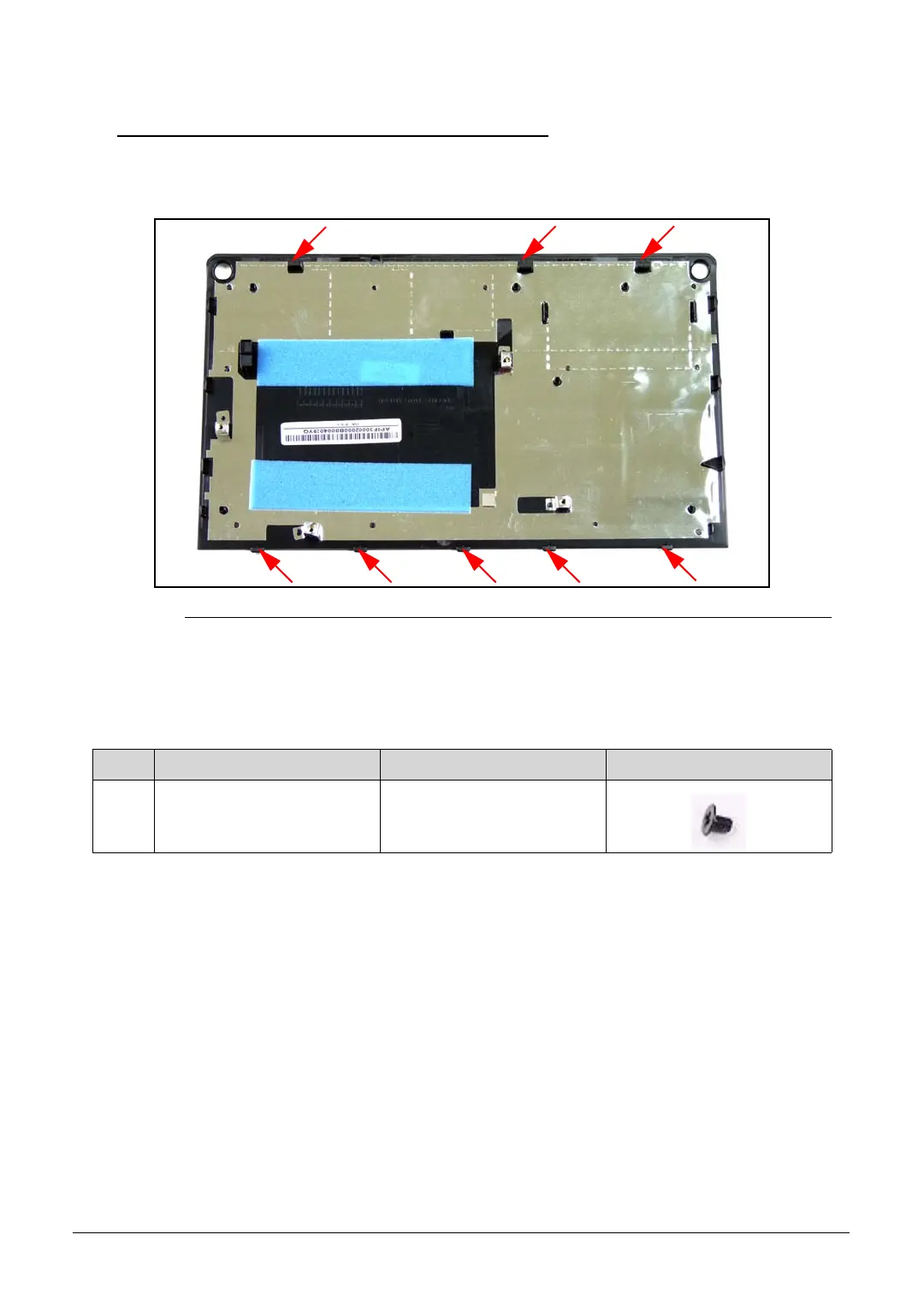

Figure 3-8. Lower Cover Door
2. Secure door to lower cover with four (4) screws (A). (Figure 3-7)
3. Install battery pack.
ID Size Quantity Image
AM2x7 4
