Acer One 522 - Exploded Diagrams

6-4 FRU (Field Replaceable Unit) List
Exploded Diagrams 0
Main Assembly 0

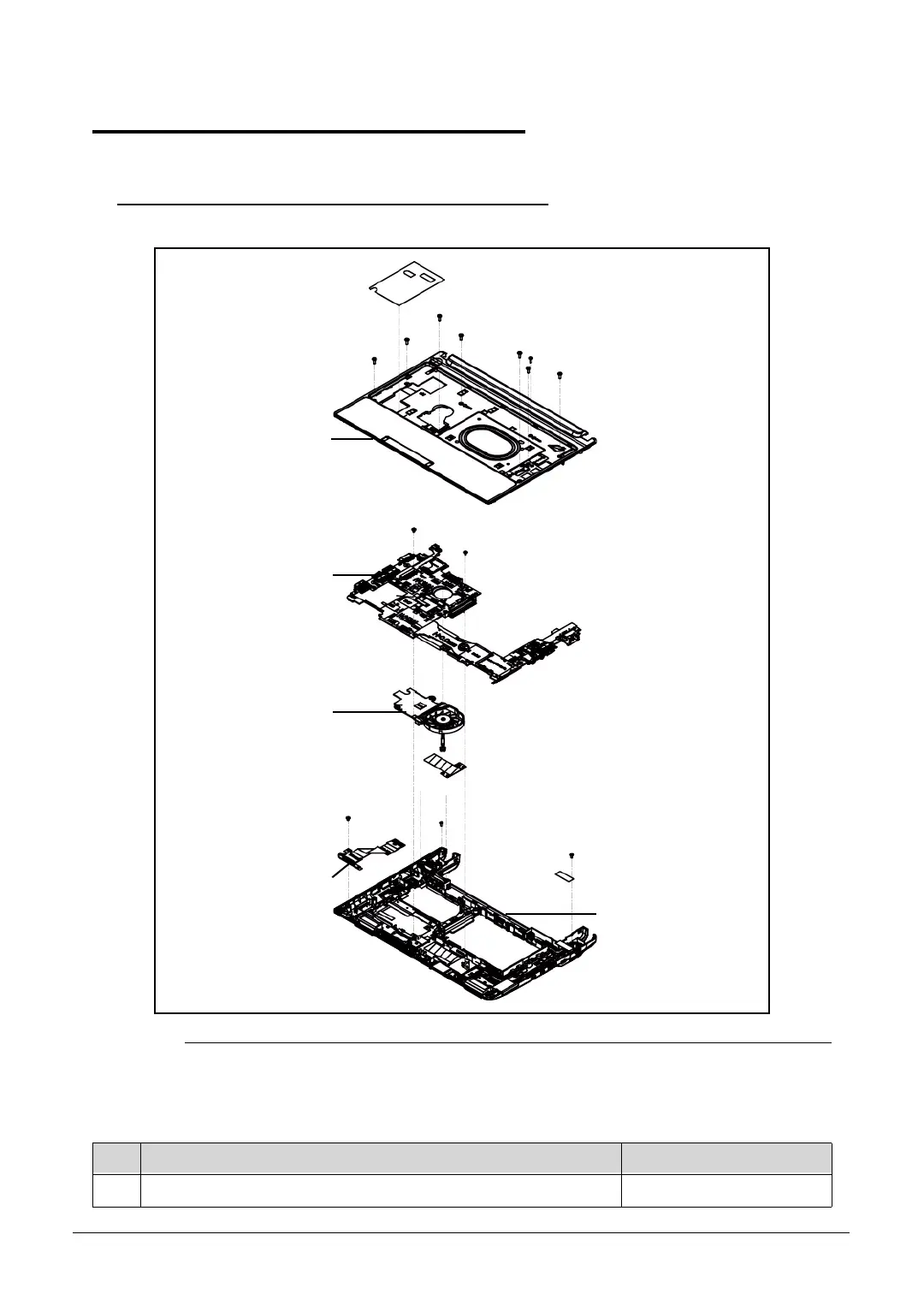

Figure 6-1. Main Assembly Exploded Diagram
Table 6-1. Main Assembly Exploded Diagram
No. Description Acer Part No.
1 UPPER CASE-BLACK 60.SES02.001
