Acer One 522 - Upper Cover Removal

3-20 Machine Maintenance Procedures
Upper Cover Removal 0
Prerequisite:
Lower Cover Door Removal

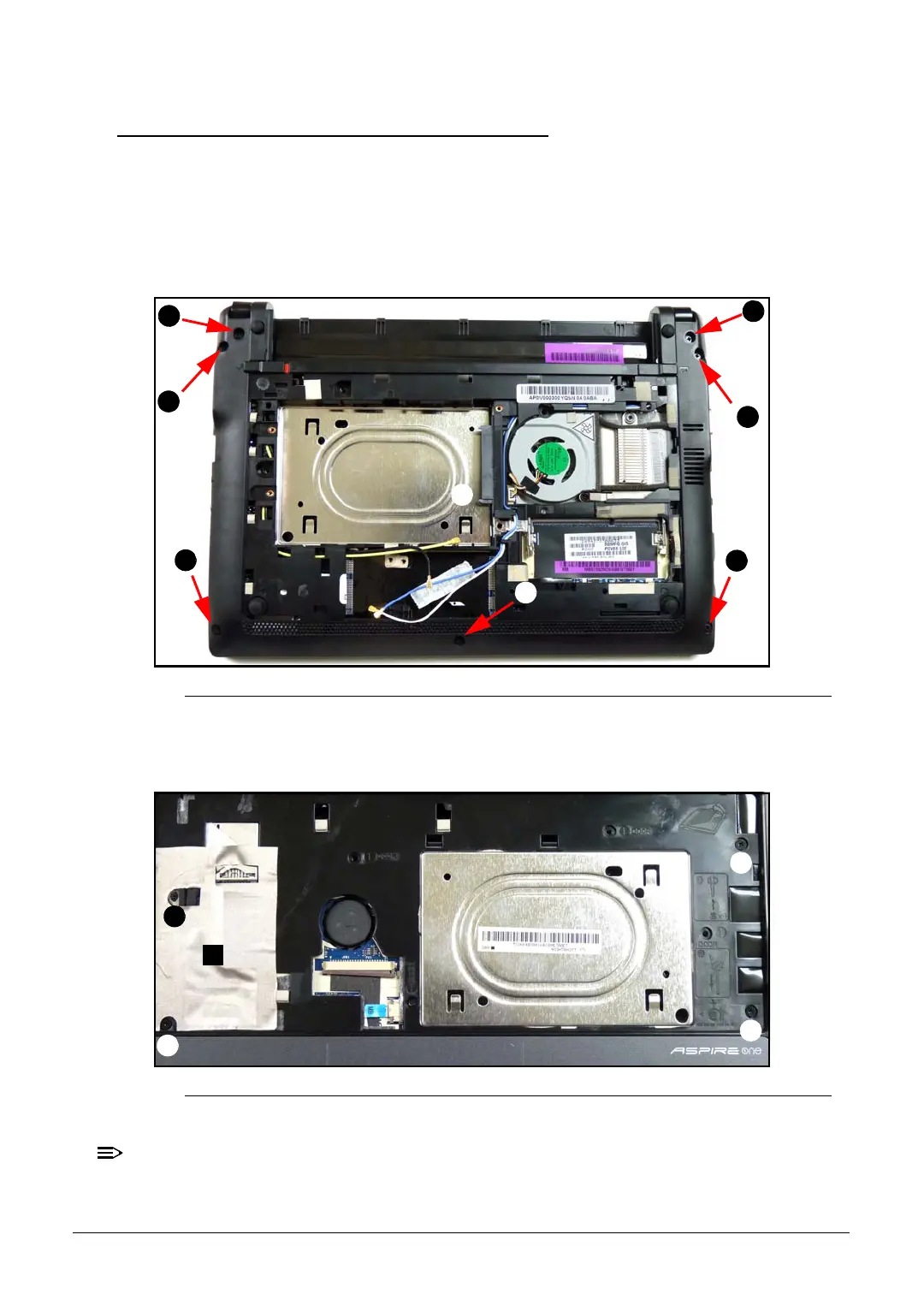

1. Remove seven (7) screws (A) from upper cover. (Figure 3-16)
Figure 3-16. Lower Cover Screws
2. Remove four (4) screws (B) from mainboard. (Figure 3-17)
Figure 3-17. Upper Cover Screws
NOTE:
NOTE:
Do not remove EMI (Electromagnetic Interference) strip (C) from upper cover.
