3. Unlock latch (C) on right side of battery bay. (Figure 3-18)

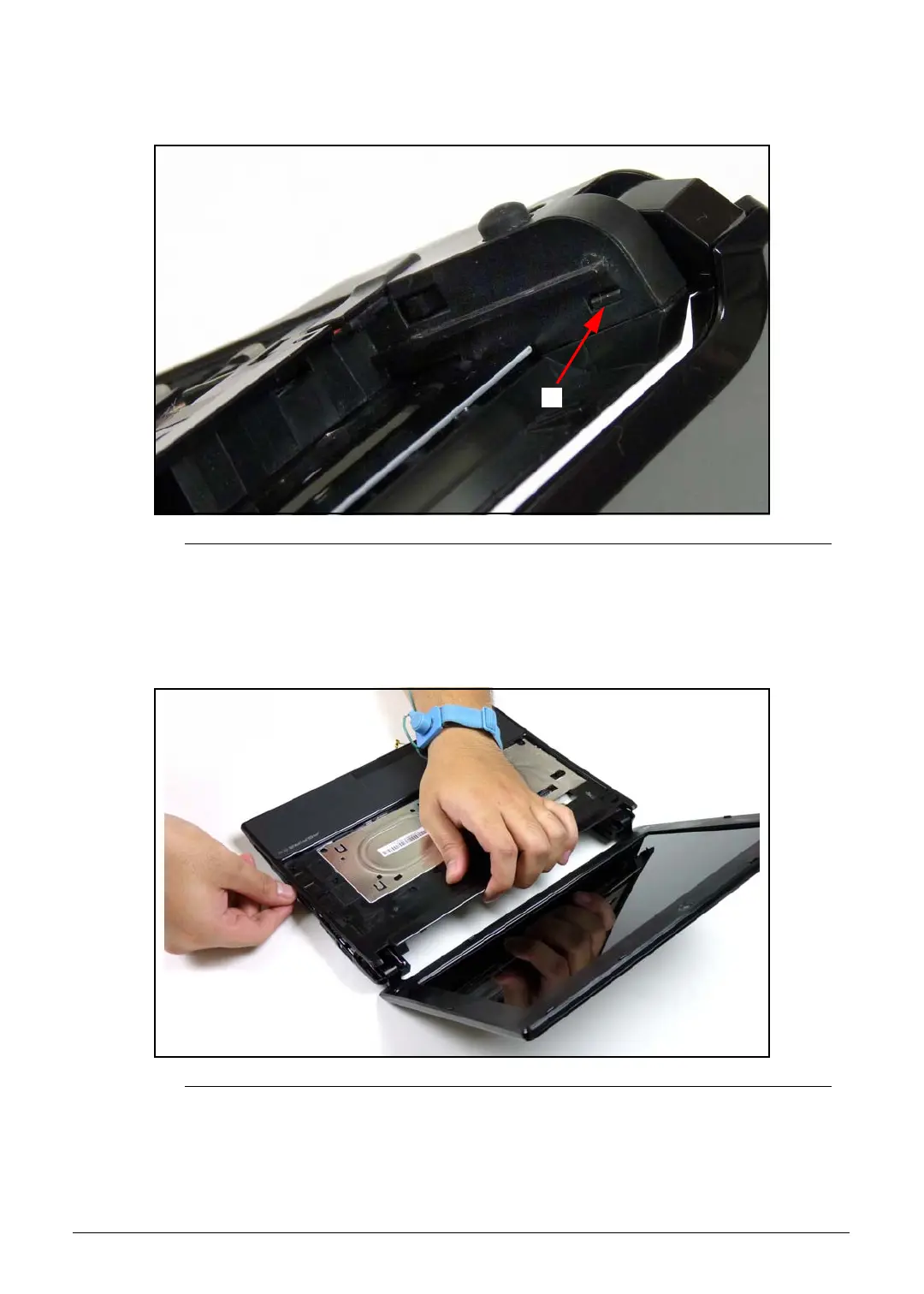

Figure 3-18. Right Side of Battery Bay
4. Repeat step three for latch on left side of battery bay.
5. Lift top edge of upper cover while pushing down on edge of lower cover to unlock
remaining latches. (Figure 3-19)
Figure 3-19. Upper Cover without Screws
6. Remove upper cover from lower cover.
