Jumper and Connector Locations 5-3
Jumper and Connector Locations
Mainboard 0

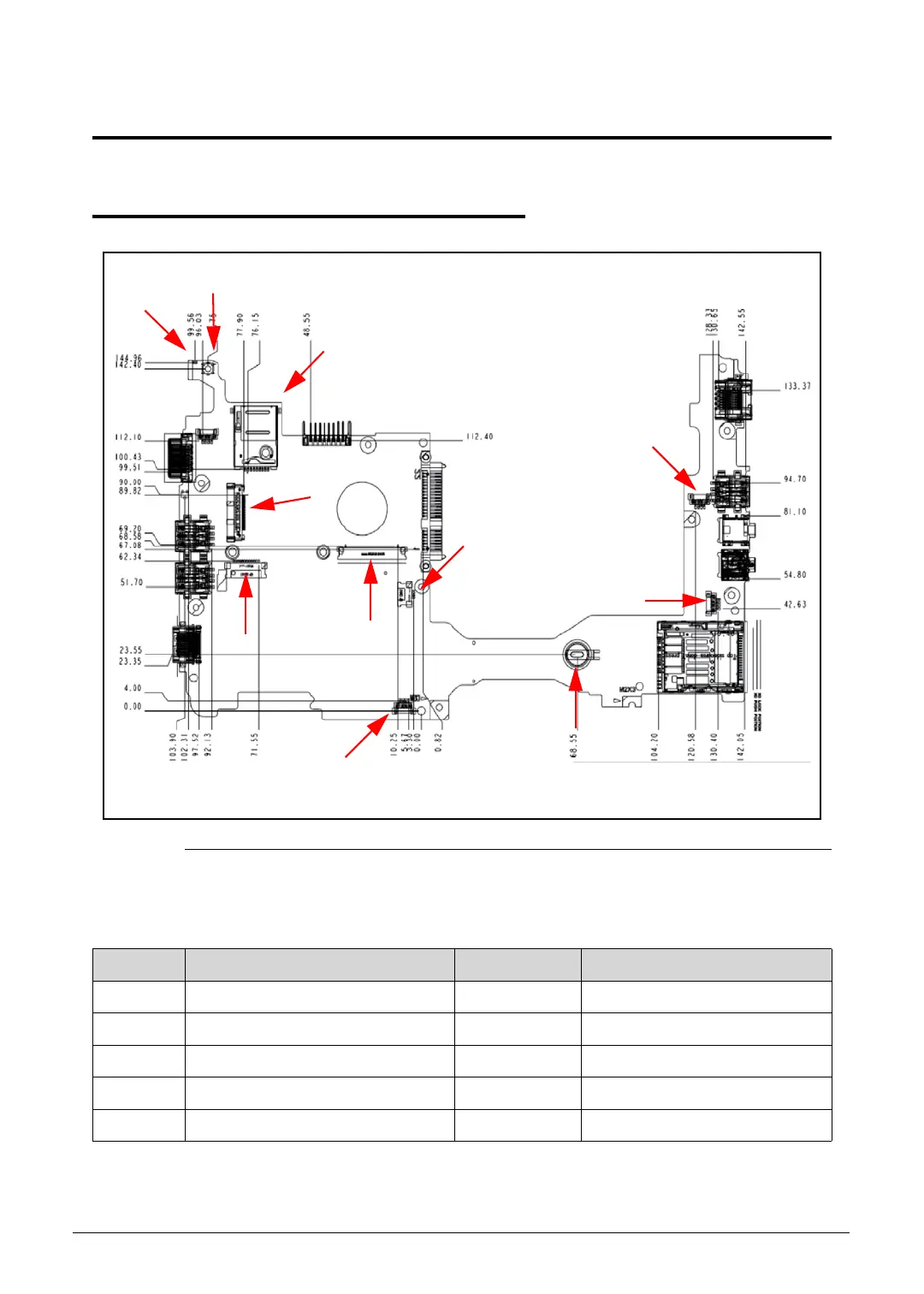

Figure 5-1. Mainboard Top
Table 5-1. Mainboard Top
Item Description Item Description
LED1 LED1 Connector JTP1 TP/B Connector
JLED1 LED/B Connector JKB1 KB Connector
JBT1 BT Connector JLVDS1 LVDS Connector
JREAD1 Card Reader Connector JSIM1 SIM Card Connector
JSPK2 Speaker Connector SW1
LED1
SW1
JLED1
LED/B Conn
JKB1
KB Conn
JBT1
BT Conn
JREAD1
Card Reader Conn
JSIM1
SIM Card Conn
JLVDS1
LVDS Conn
JPT1
TP/B Conn
JMIC2
MIC Conn
JSPKR2
Speaker Conn
