Machine Maintenance Procedures 3-11
3. Flip keyboard over to show FPC (A) and mainboard connector (B). (Figure 3-6)

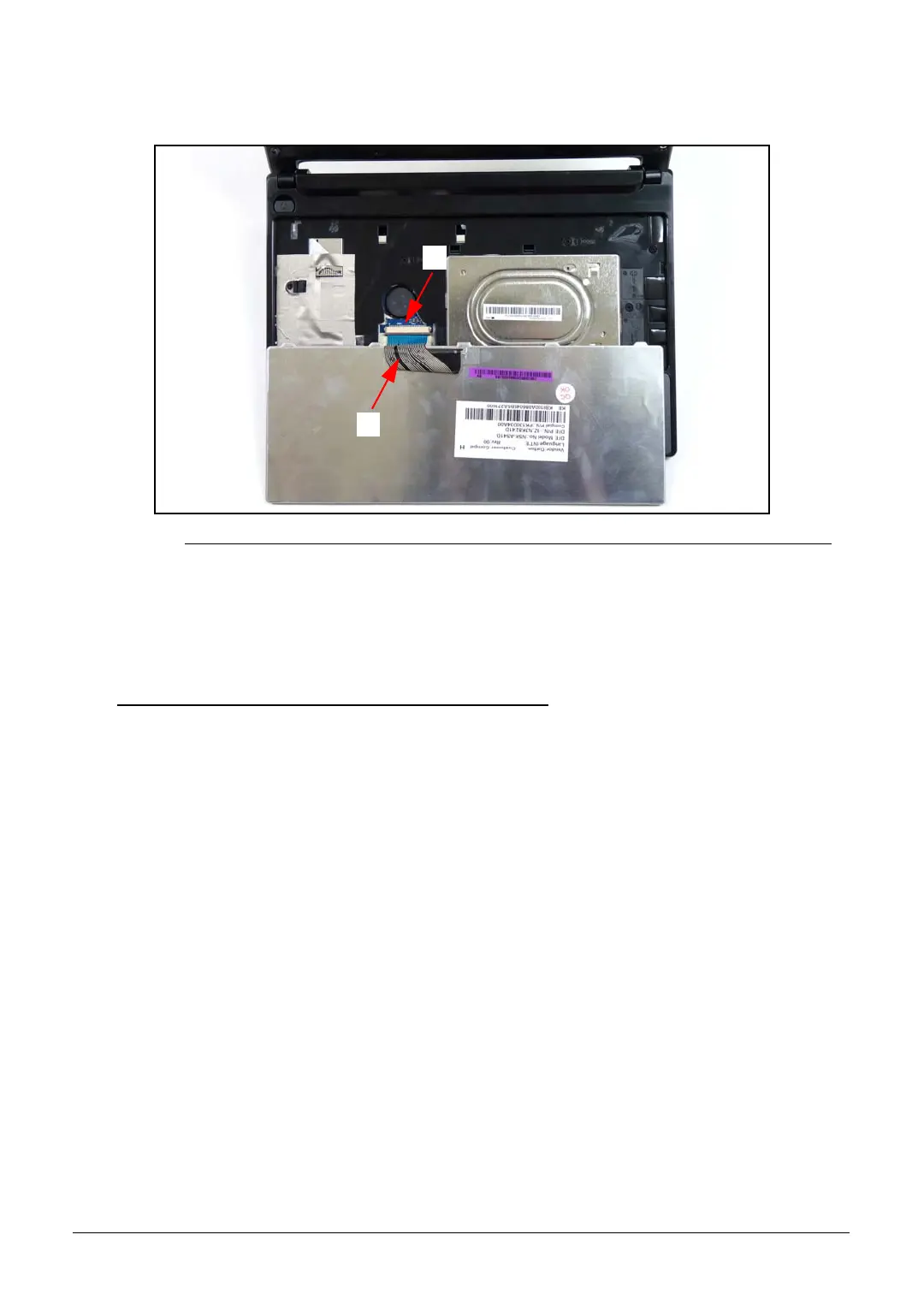

Figure 3-6. Keyboard and Keyboard FPC
4. Disconnect keyboard FPC (A) from mainboard connector (B).
5. Remove keyboard from upper cover.
Keyboard Installation 0
1. Place keyboard on upper cover. (Figure 3-6)
2. Connect keyboard FPC (A) to mainboard connector (B).
3. Flip keyboard over. (Figure 3-5)
4. Align and secure three (3) latches above keys, F4, F8, and F12.
5. Install battery pack.
