Acer One 522 - LCD Assembly

6-6 FRU (Field Replaceable Unit) List
LCD Assembly 0

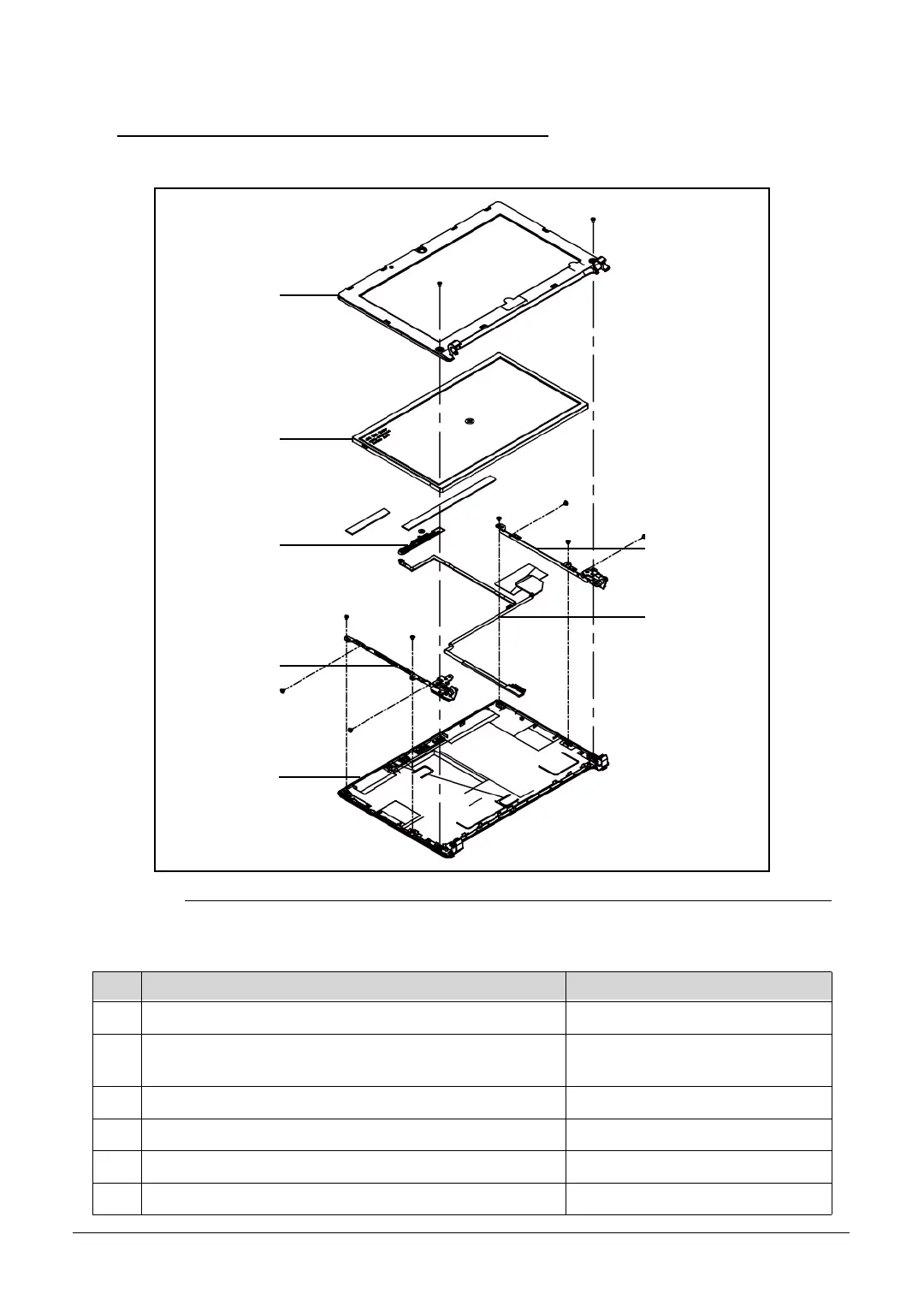

Figure 6-2. LCD Assembly Exploded Diagram
Table 6-2. LCD Assembly Exploded Diagram
No. Description Acer Part No.
1 LCD BEZEL-52 60.SES02.007
2 LED LCD SAMSUNG 10.1'' WXGA Glare
LTN101AT01-A01 LF 200nit 16ms 600:1
LK.10106.002
3 CAMERA 1.3M 57.SES02.001
4 LCD BRACKET R&L-52 33.SES02.003
5 LOWER CASE 60.SES02.002
6 LCD CABLE-52 FOR W/3G 50.SFE02.003
