Machine Maintenance Procedures 3-47
Microphone Module Removal 0
Prerequisite:
LCD Panel Removal
1. Locate module (A) on LCD module cover. (Figure 3-48)
2. Lift foil tabs (C) covering module cable (B).

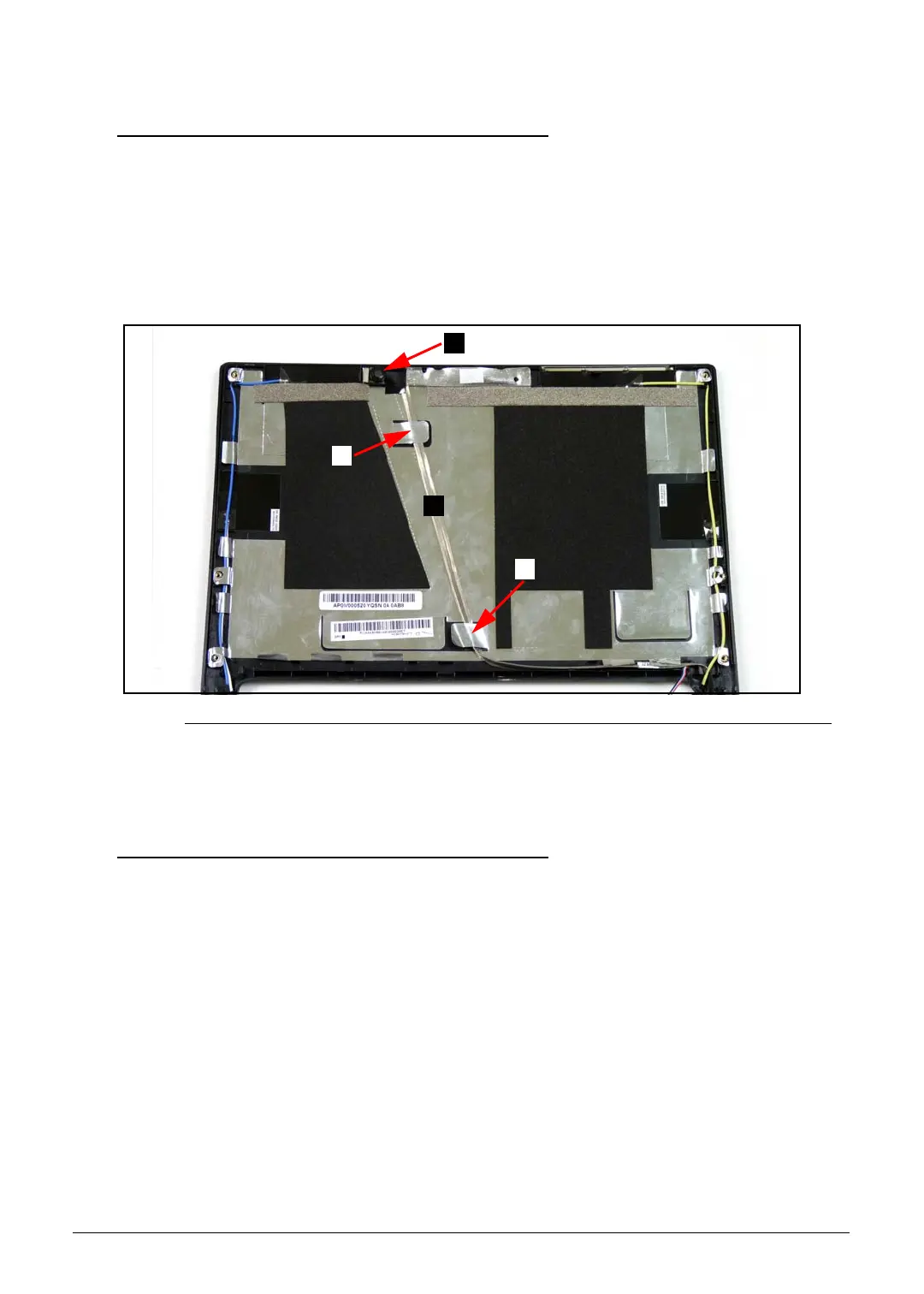

Figure 3-48. LCD Module Cover with Microphone Module
3. Remove module (A) and cable (B) from LCD module cover.
Microphone Module Installation 0
1. Install module (A) and module cable (B) on LCD module cover. (Figure 3-48)
2. Secure foil tabs (C) covering module cable (B) to LCD module cover.
3. Install LCD panel.
