Transfer the Injector Head to/from a Pedestal Cart7 Supplementary Procedures
To transfer the injector head between a bed rail and a pedestal cart, perform
the following steps:

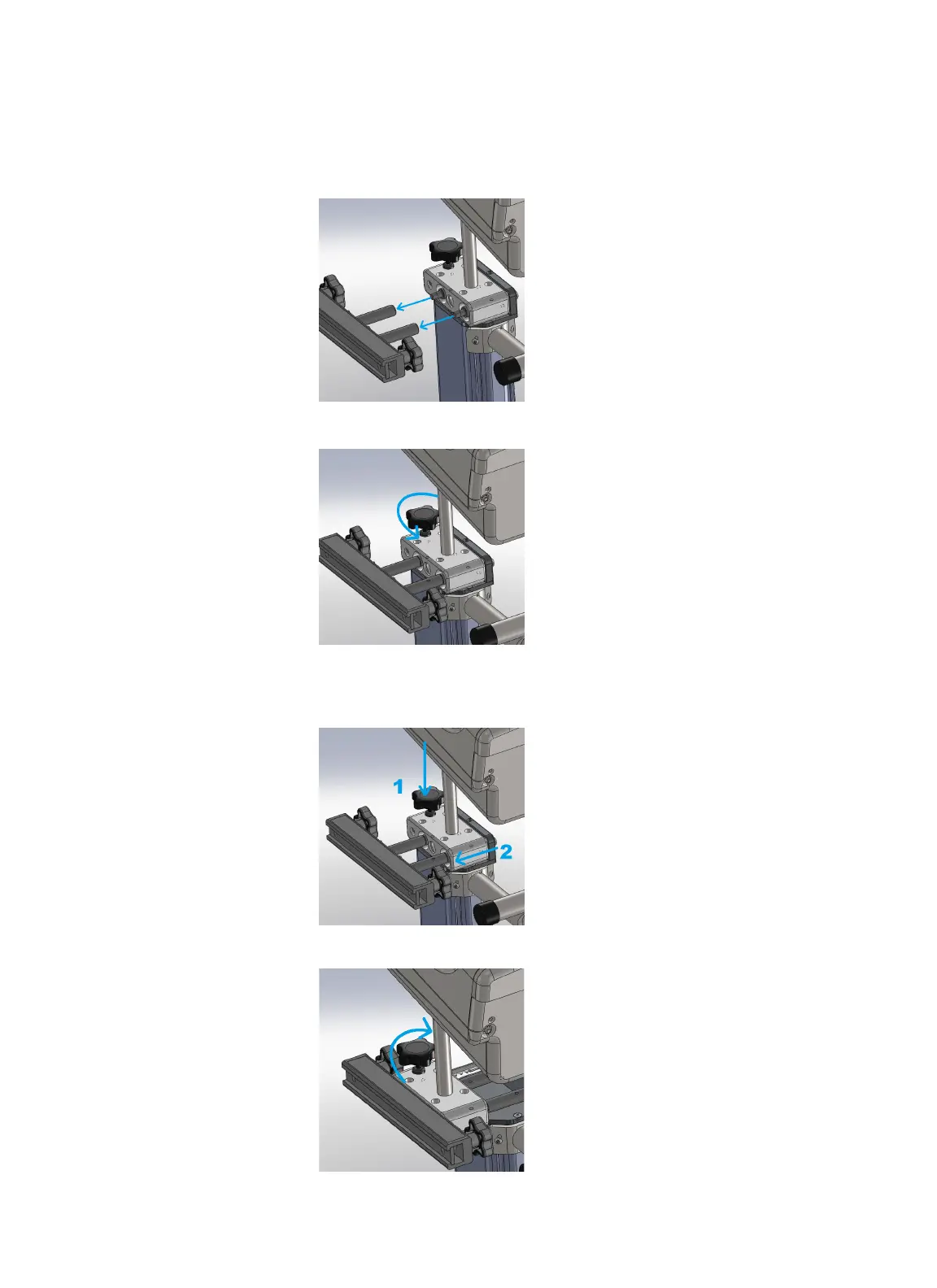

1. Align the pins on the cart with the pins on the bed rail mount.
2. Loosen the lock knob.
3. Disengage the lock knob by pushing it down. Slide the injector head
across until the injector head mount is fully transferred onto the desired
mount (bed rail or pedestal cart).
4. Tighten the lock knob. Make sure the system is locked and secure.
