Cabling
58 | English (USA) 2019-08 901418-003,01 ACIST | CVi® System User's Guide
7 Supplementary Procedures
Connect the X-Ray Interface Cable on Siemens-Ready Systems
(Optional)
Connect the imaging interface cable from the injector head to the power
supply. en connect the 37-pin Y cable between the power supply and the
Siemens X-ray device.
CAUTION
To avoid damaging the X-ray imaging equipment, make sure the connector
on the X-ray imaging system is properly congured before the input cable is
connected to the CVi system.

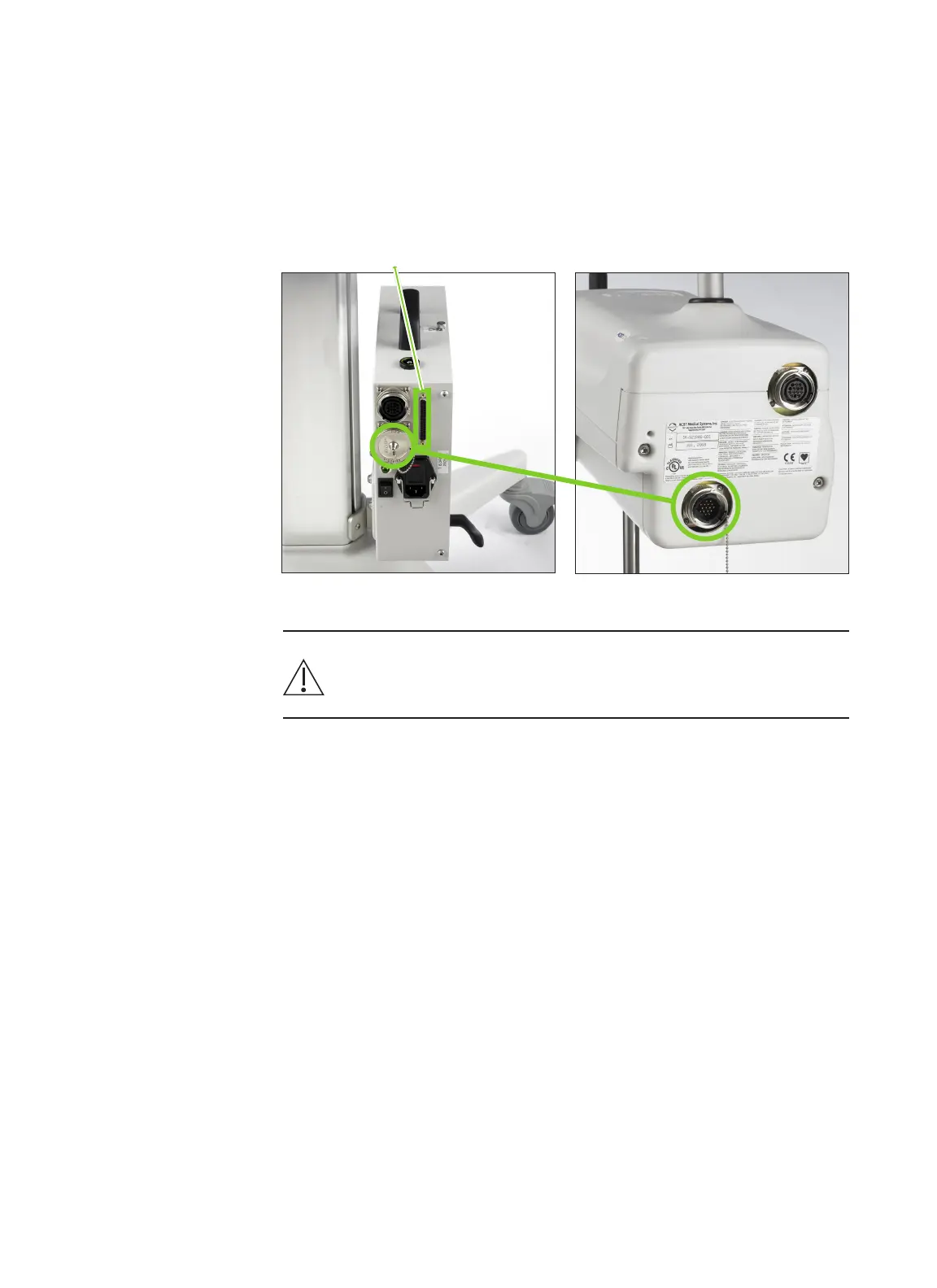

Power supply Injector head
To Siemens X-ray device
