Cabling
56 | English (USA) 2019-08 901418-003,01 ACIST | CVi® System User's Guide
7 Supplementary Procedures
Cables between CVi system components are normally connected during
installation by an approved representative or distributor. If it becomes
necessary to connect the cables between components because the system was
moved or serviced, follow the instructions below.

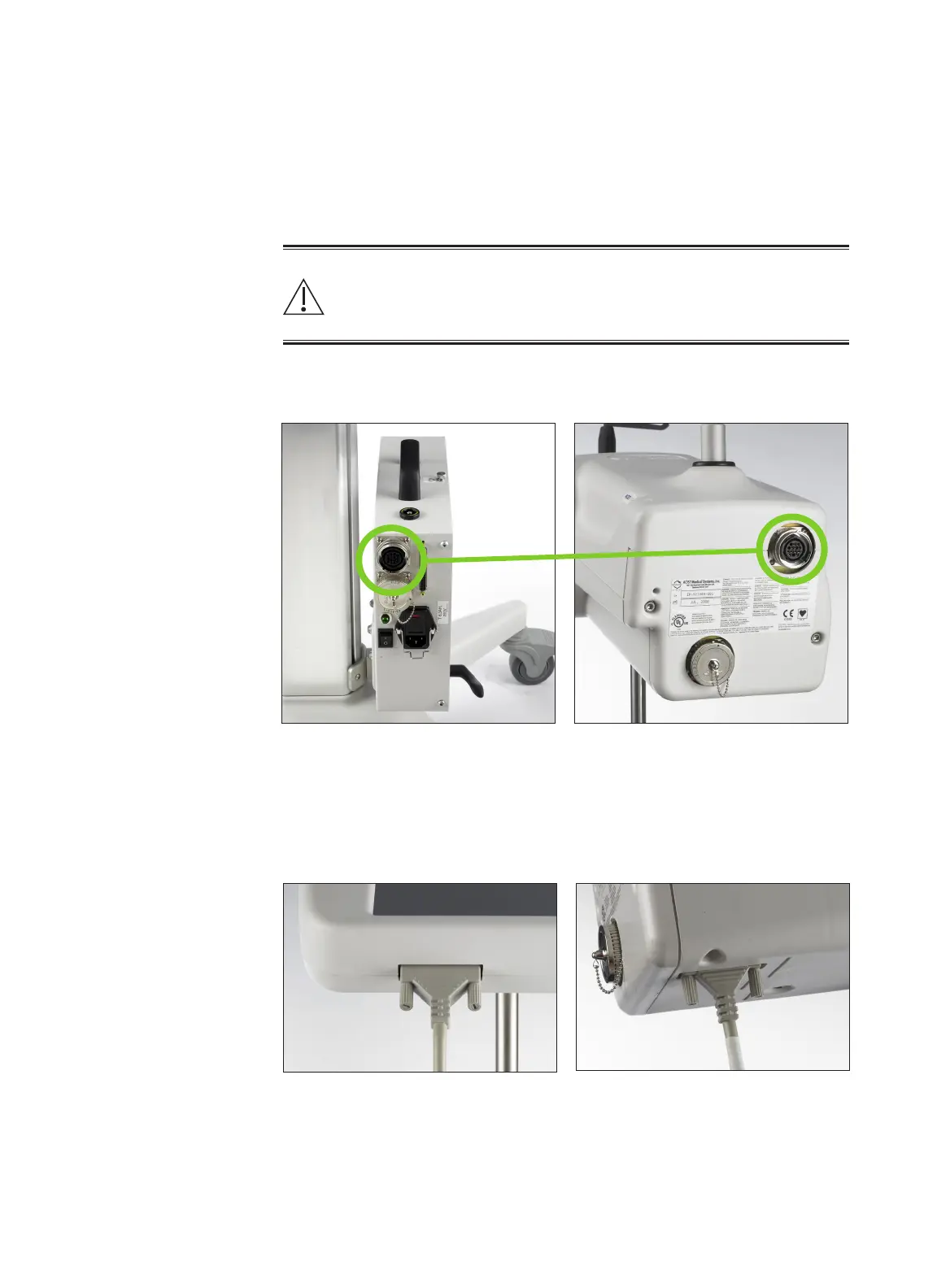

Connect the Injector Head Cable
Warning
To avoid the potential for electric shock to the patient, do not touch the
patient while making connections to the injector head or to the power
supply.
Connect the injector head cable from the power supply to the upper right port
on the injector head.
Connect the Control Panel Cable
Connect one end of the control panel cable to the bottom of the control panel.
Connect the other end of the control panel cable to the bottom of the injector
head. Tighten the cable screws at both ends.
Cabling
Power supply Injector head
Control panel cable
connected to injector head
Control panel cable
connected to control panel
