15
of installation is such that the unit can be used by children (some 1.35 m) and
persons with disabilities (persons with sight impairment, in wheelchairs, etc.).
Make sure that the camera of video systems is installed at the desired height.
Typically that height is 1.60 m from the ground. For optimal field of view of the
camera, verify the installation location and position of the panel by trial and error.
Avoid locations where the camera lens may be exposed to direct, perpendicular,
light (from the sun, streetlamps, etc.).
CDNP7 series:
Install the flush-mounting frame in the appropriate wall opening using rawlplugs
and gypsum (wait for the gypsum to dry before screwing the outside unit to the
mounting frame). Lead the wires through the holes in the frame. Auxiliary holes
around the frame are used for makeshift
installation with nails etc. when mounting the
unit in soft materials such as polystyrene.
These holes also help when mounting the
unit using mounting foam.
Upon completion of the installation the top
holes of the frame must be plugged (with

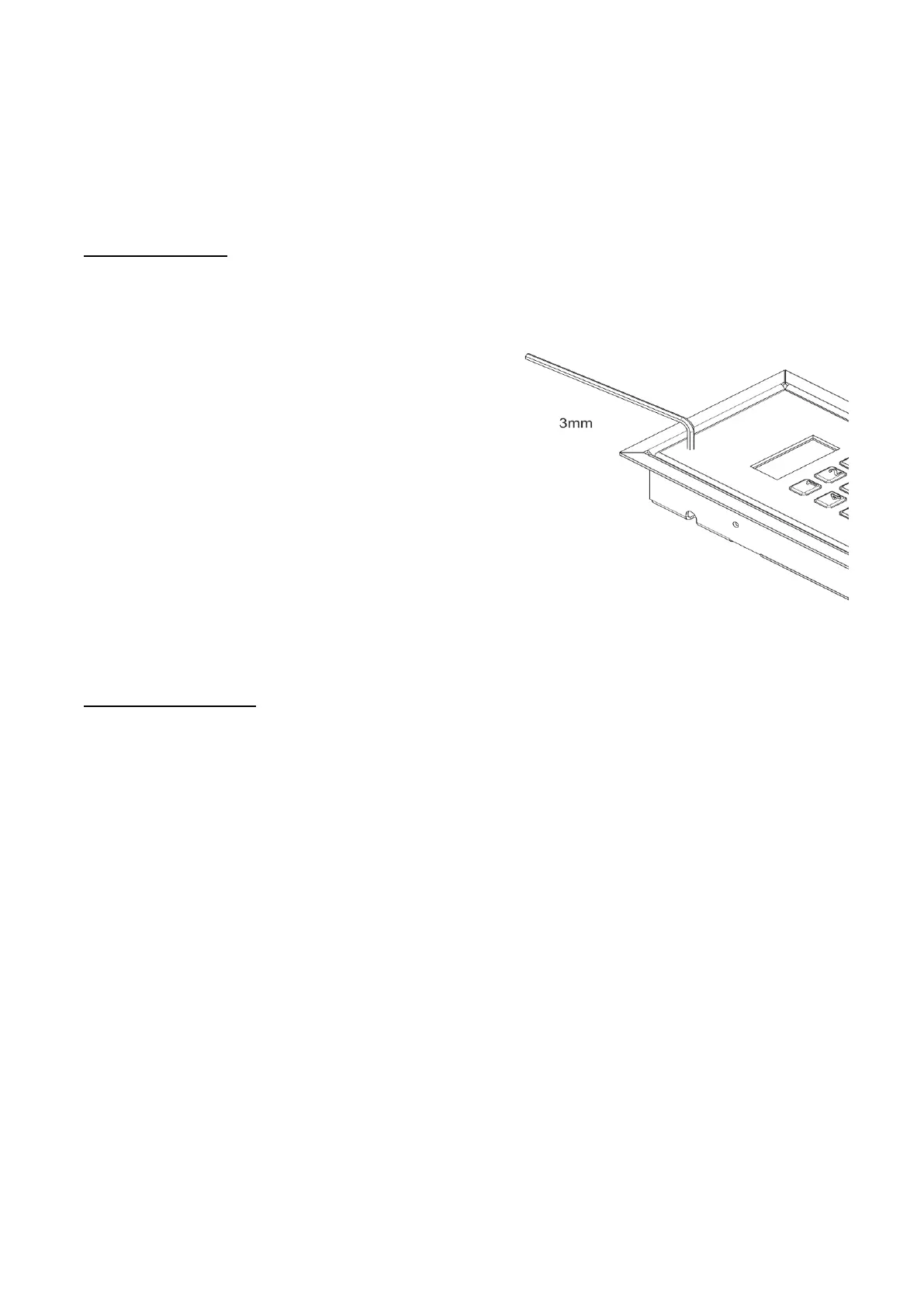

mounting foam or plaster). Then screw
evenly all screws of the housing to the frame
using a 3mm Allen wrench.
Screwing the housing
INSPIRO+ series:
Install the flush-mounting back box in the appropriate wall opening using
rawlplugs and gypsum; make sure that the box edge is flush with the wall surface
(wait for the gypsum to dry before screwing the unit to the mounting frame). Lead
the wires through holes 1 in the box base. Auxiliary holes 2 are used for makeshift
installation with nails etc. when mounting the unit in soft materials such as
polystyrene. Holes 3 help when mounting the unit using mounting foam. Upon
completion of the installation the top holes of the box must be plugged (with
mounting foam or plaster). It is also necessary to install gaskets around the panel;
gaskets are included in the set. Attach the gaskets using double-sided tape so
that when the unit is screwed to the back box, gaskets form sealing of the gap
between the unit and the surface, on which it is mounted (such as wall). Then
screw evenly all screws of the housing to the back box using a 3mm Allen wrench.
