16

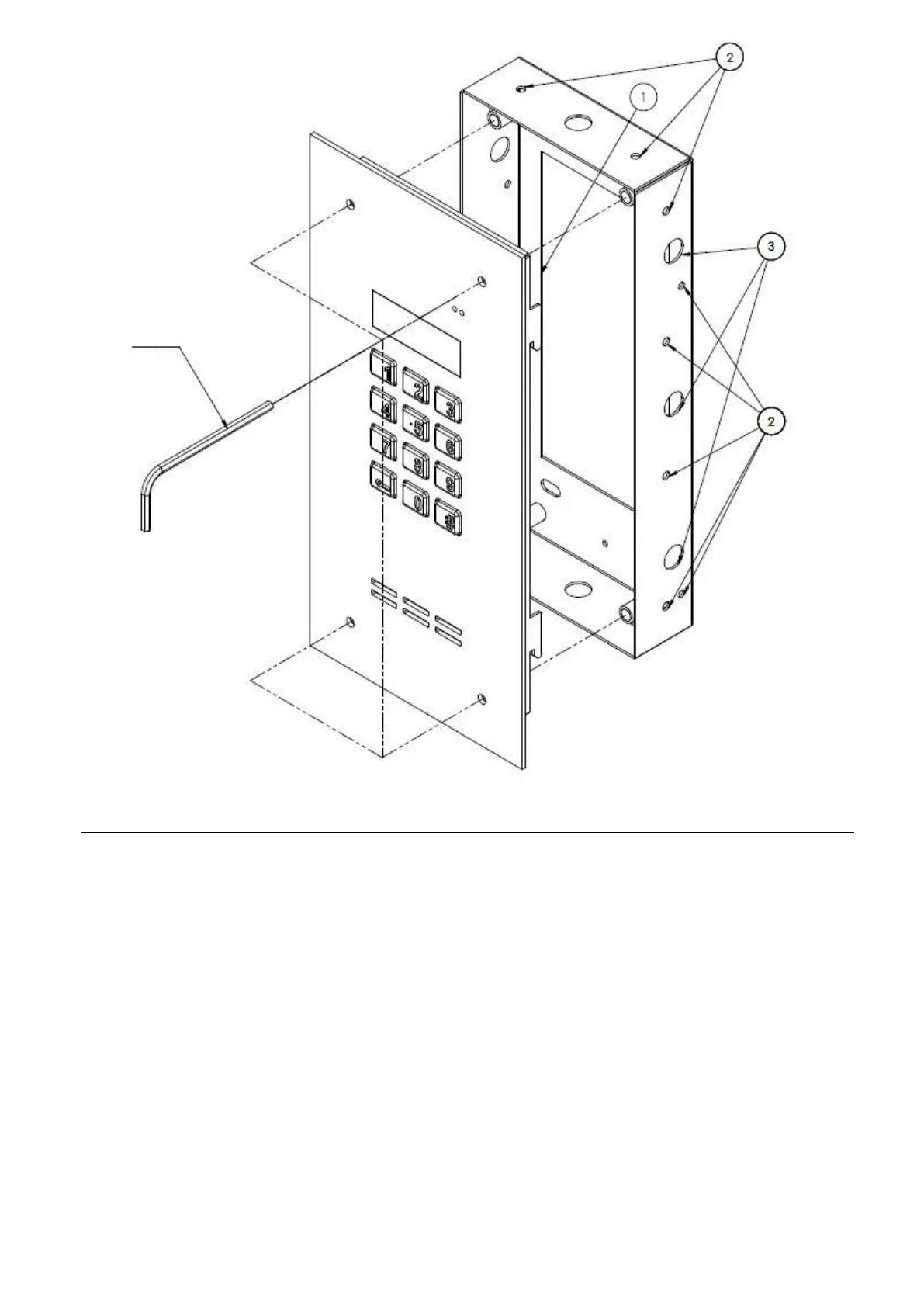

VII. CONNECTION
1. Wiring information
The following wires need to arranged to the unit:
2 wires x 1mm
2
- power supply to the Audio system transformer or power
supply to the DC power supply (15VDC) for the Audio/Video system
1 wire in yellow green insulation - to connect the housing's grounding
2 wires x 0.75mm
2
- for E-lock,
2 wires x 0.5mm
2
of intercom cable to connect receivers - for the Audio
system, or
1 x UTP (min. cat 5e) - for Video system (first Master panel [first in the
system]
2 x UTP (min. cat 5e) - for Video system (for downstream slave panels
in the system)
Note! All RJ45 plugs on UTP must be crimped in T568B standard.
