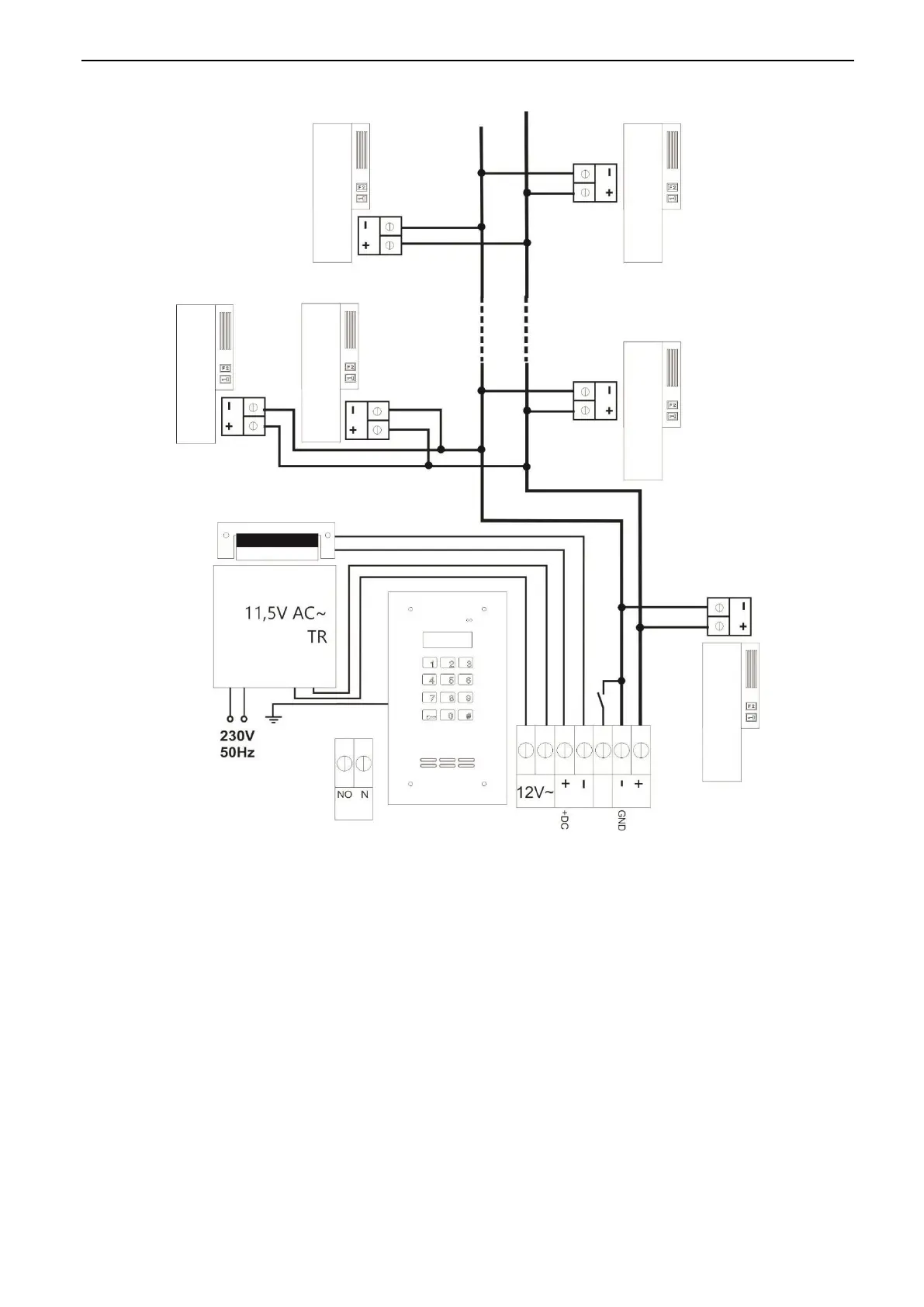

WIRING DIAGRAM - INSTALLATION WITH ONE DOOR ENTRY UNIT
Installation with one door entry unit and passive Audio receivers is wired as
shown below:
Note! All connections in the installation must be soldered!
max 255
Line
Line
Line
Line
Line
Line
max 1A
Ex-2
OUT-2
OUTPUT
Master
Wejście dodatkowe / Optional
entry
ELOCK
LINE
INPUT
