ACUTRONIC fabian User Manual

4 System functions and displays 14
fabian Therapy evolution | SW V5.1.x
Ref: 121003.EN / Date: 26Jan2021
Display concept structure
4.2.1 Display areas
The information system features two key display areas:
The touch screen
LED indicators

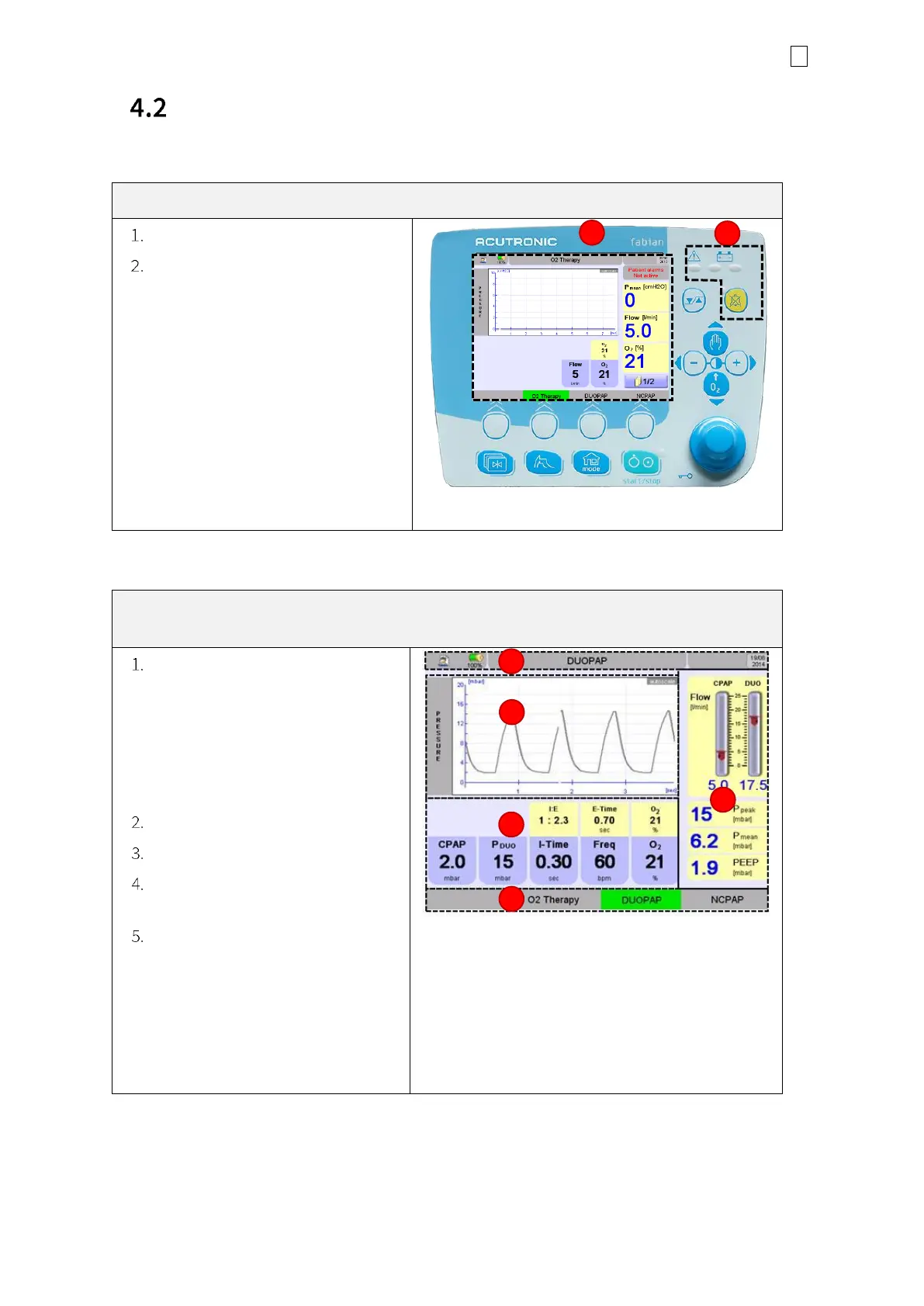

Figure 4-2: Functional & Information areas
4.2.2 Display screen
The display screen shows various information, setting and display fields
depending on the display settings or menu:
Information bar indicating:
• Battery status
• Time / Date
• Status information
• System and Alarm
information
Graphics field
Parameter Selection field
Selection or display of the
Operating mode
Numeric field / Alarm Limits
Depending on the Display mode
selected, individual fields can be
shown / hidden.
Display field options will be described
later.in section “4.3: Ventilation menu”
Figure 4-3: Display screen
1
1
2
1
2
3
4
5

ACUTRONIC fabian Specifications

General

Type	Neonatal and Pediatric Ventilator
Manufacturer	ACUTRONIC Medical Systems AG
Model	fabian
Respiratory Rate	1 - 150 bpm
FiO2 Range	21 - 100%
HFOV Frequency	5 - 20 Hz
Power Supply	100-240 V AC, 50/60 Hz
Modes of Ventilation	SIMV, CPAP, HFOV
Tidal Volume Range	2 to 300 ml
PEEP/CPAP	0-20 cmH2O
Inspiratory Time	0.1 to 3 seconds
Flow Rate	2 - 30 L/min
Flow Sensor	Integrated
Pressure Limit	10-80 cmH2O
