ACUTRONIC fabian User Manual

6 Configurations menu 36
fabian Therapy evolution | SW V5.1.x
Ref: 121003.EN / Date: 26Jan2021
Calibration
The Calibration screen is the first screen that comes up when the
Calibration key is pressed. Then you can proceed through the menu
options to select the Calibration menu again.
The Calibration menu can also be accessed pressing the Menu /
Calibration button on the keypad.
6.1.1 Calibration Menu at Therapy (only with flow sensor
connector)

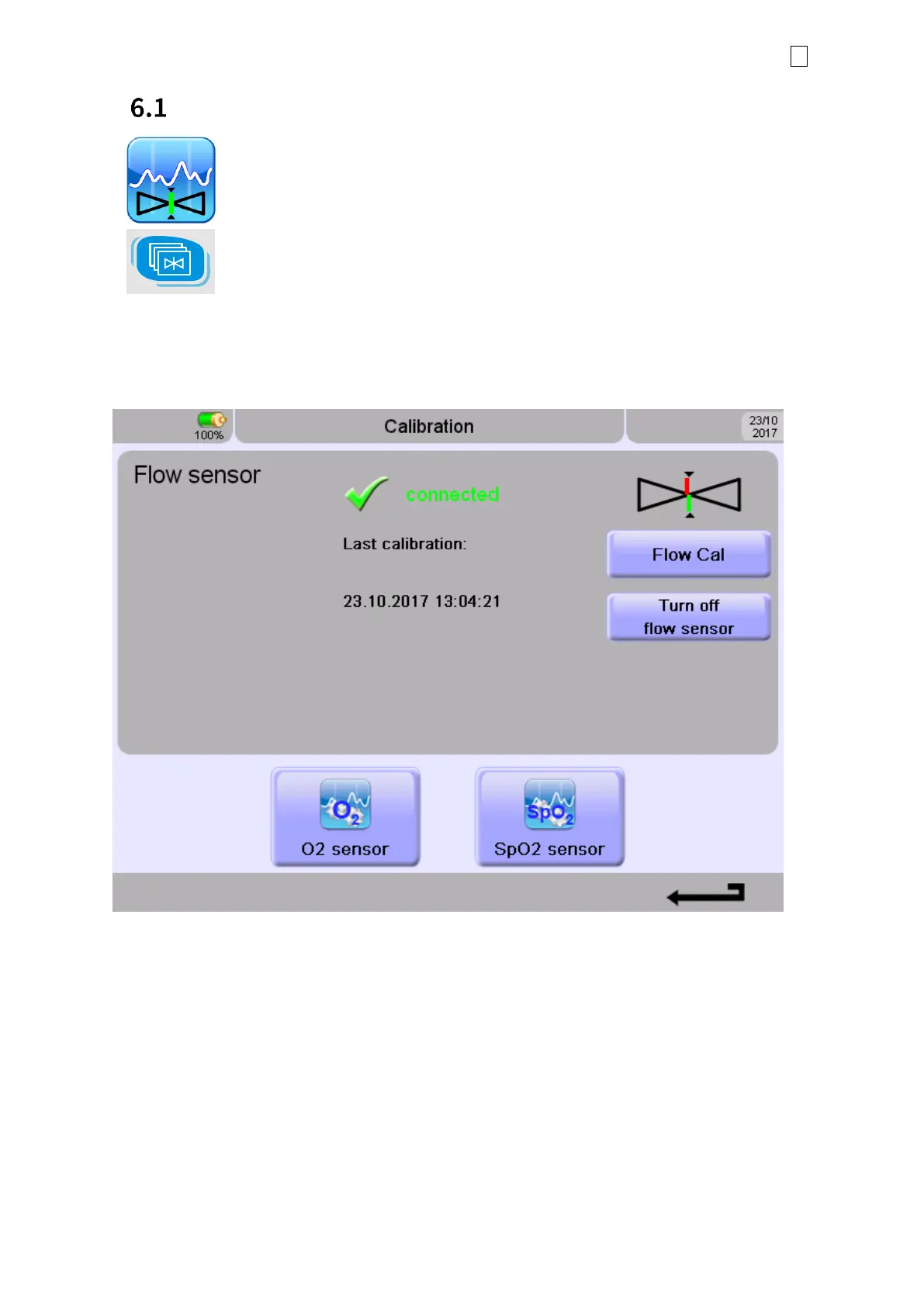

Figure 6-3: Calibration menu
From the Calibration screen, you can calibrate the following sensors:
• Flow sensors: Neonatal and Pediatric
• O
2
sensor
• SpO
2
module

ACUTRONIC fabian Specifications

General

Type	Neonatal and Pediatric Ventilator
Manufacturer	ACUTRONIC Medical Systems AG
Model	fabian
Respiratory Rate	1 - 150 bpm
FiO2 Range	21 - 100%
HFOV Frequency	5 - 20 Hz
Power Supply	100-240 V AC, 50/60 Hz
Modes of Ventilation	SIMV, CPAP, HFOV
Tidal Volume Range	2 to 300 ml
PEEP/CPAP	0-20 cmH2O
Inspiratory Time	0.1 to 3 seconds
Flow Rate	2 - 30 L/min
Flow Sensor	Integrated
Pressure Limit	10-80 cmH2O
