ACUTRONIC fabian User Manual

9 3 System overview
fabian Therapy evolution | SW V5.1.x
Ref: 121003.EN / Date: 26Jan2021

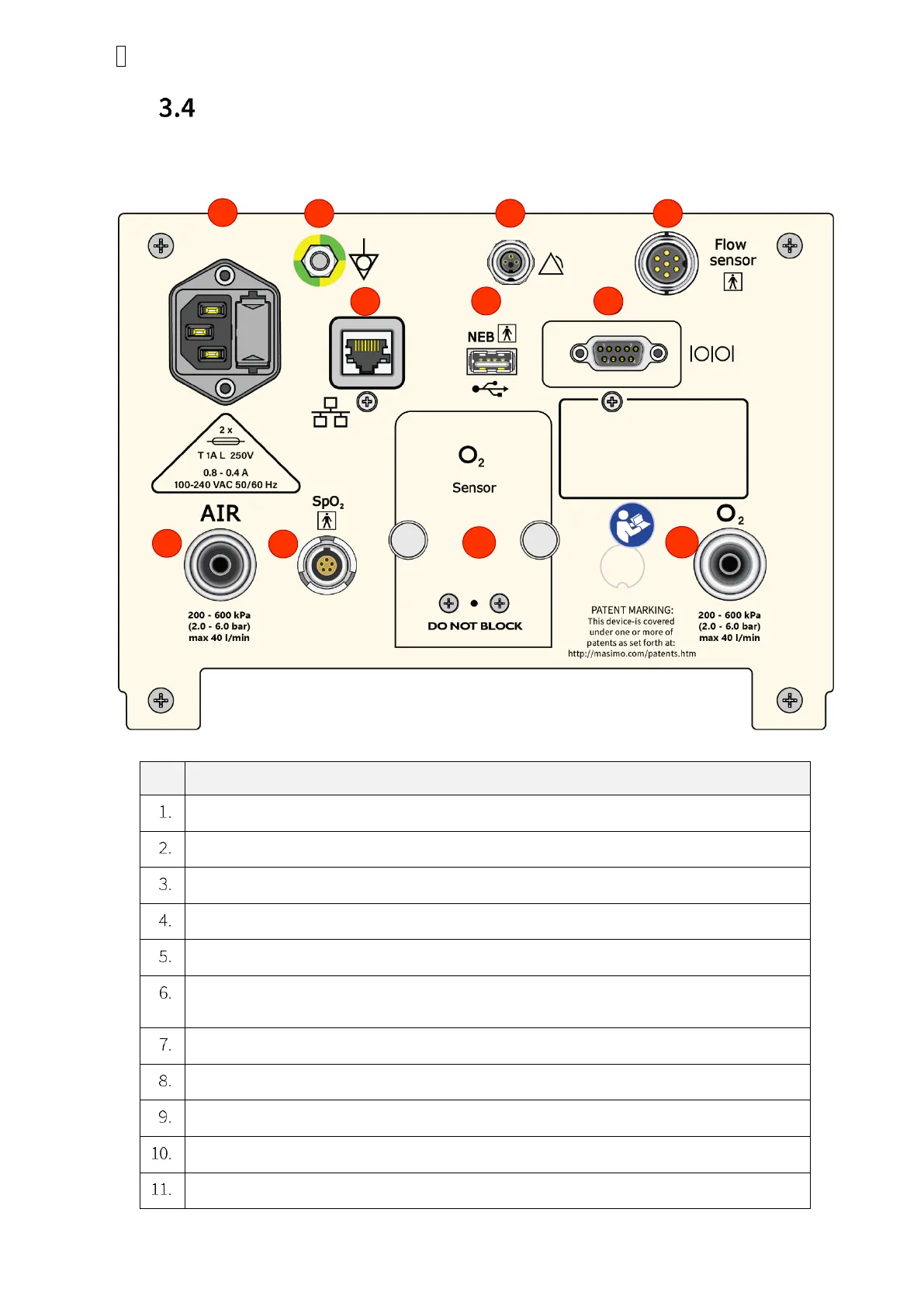

Rear panel
3.4.1 Devices without DC connector (from SN AT-04000)
#
Description
Power Connector 100 A (fuse 1.25A L 250V)
Terminal stud for potential equalization 50 VDC
Nurse Call, max: Switching voltage
Flow Sensor -pin connection
Network connection for data management ( Disabled )
USB connection for Data output, Software update. Connection for Masimo SpO
2
module.
RS232 interface, service, PDMS
Connection for compressed Air supply 2.0 to 6.0 bar/40 L/min
Connection for future use, covered with a faceplate
Oxygen Sensor
Connection for oxygen “O
2
” supply 2.0 to 6.0 bar /40 L/min
1
2
5
6
3
7
4
8
9
10
11

ACUTRONIC fabian Specifications

General

Type	Neonatal and Pediatric Ventilator
Manufacturer	ACUTRONIC Medical Systems AG
Model	fabian
Respiratory Rate	1 - 150 bpm
FiO2 Range	21 - 100%
HFOV Frequency	5 - 20 Hz
Power Supply	100-240 V AC, 50/60 Hz
Modes of Ventilation	SIMV, CPAP, HFOV
Tidal Volume Range	2 to 300 ml
PEEP/CPAP	0-20 cmH2O
Inspiratory Time	0.1 to 3 seconds
Flow Rate	2 - 30 L/min
Flow Sensor	Integrated
Pressure Limit	10-80 cmH2O
