ACUTRONIC fabian User Manual

4 System functions and displays 16
fabian Therapy evolution | SW V5.1.x
Ref: 121003.EN / Date: 26Jan2021
4.2.4 Numeric field/alarm limits
The numeric field are showing all measured values
In the numeric field the selected
ventilation mode related measured
values are displayed.
There can be multiple pages of
numeric fields.
To go to the next page, press the
button (1) below the numeric field.
Depending on the ventilation mode
the data is updated as average ⁄
minute or by breath.

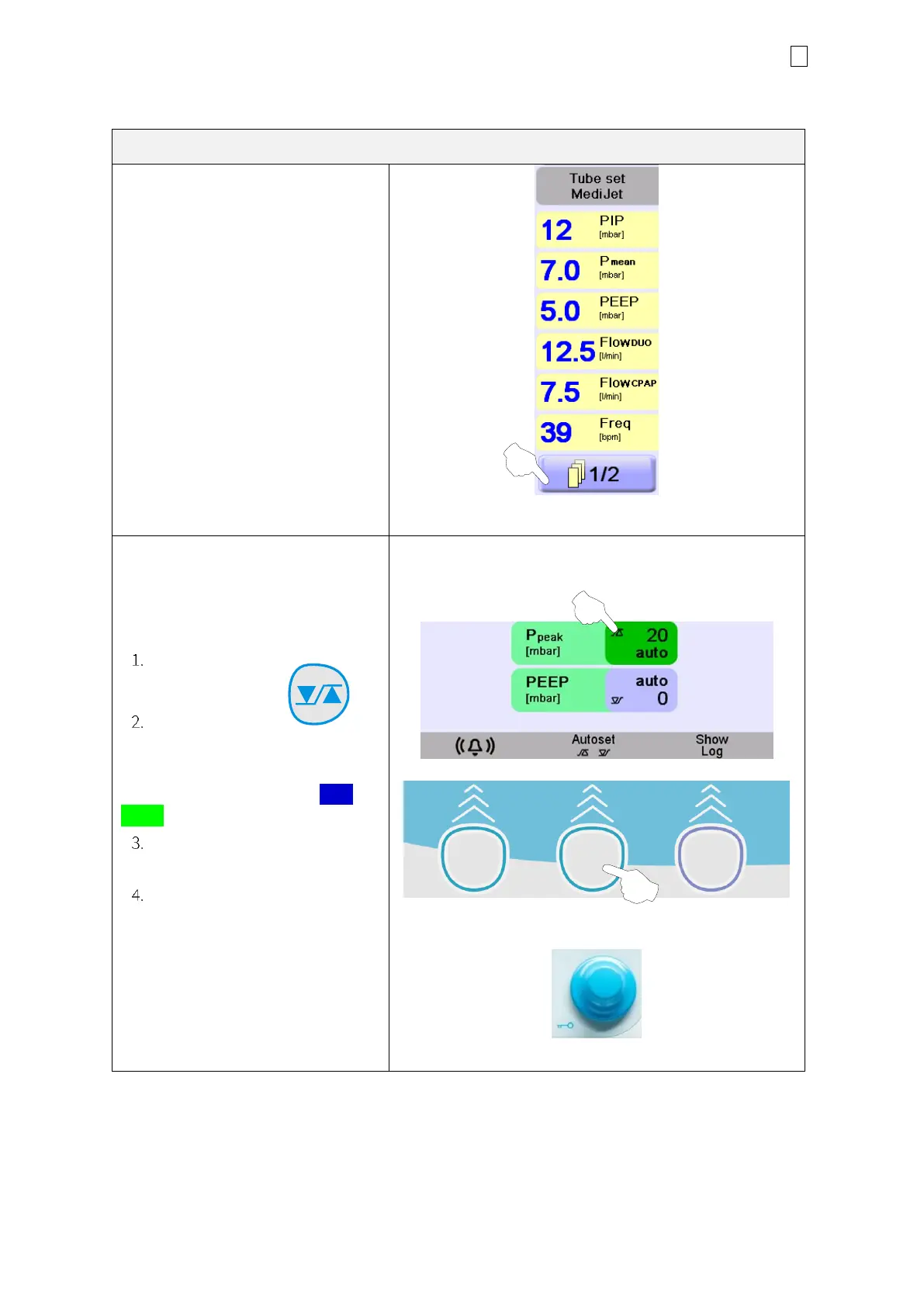

Figure 4-4: Numeric field
The upper and lower limits can be
manually or automatically adjusted
in the Alarm Limits menu.
To adjust the Alarm limit manually:
Press the Alarm
Limits button.
Touch the
Parameter (2) you wish to
change.
The button turns from dark Blue to
Green.
With the Rotary Pulse knob,
change the value.
To confirm the setting, either
touch the Parameter button
again or push Rotary Pulse
knob again.
To automatically set the Alarm
limits, select parameter and touch
the AUTOSET button (3).
Figure 4-5: Alarm limits
1
2
3

ACUTRONIC fabian Specifications

General

Type	Neonatal and Pediatric Ventilator
Manufacturer	ACUTRONIC Medical Systems AG
Model	fabian
Respiratory Rate	1 - 150 bpm
FiO2 Range	21 - 100%
HFOV Frequency	5 - 20 Hz
Power Supply	100-240 V AC, 50/60 Hz
Modes of Ventilation	SIMV, CPAP, HFOV
Tidal Volume Range	2 to 300 ml
PEEP/CPAP	0-20 cmH2O
Inspiratory Time	0.1 to 3 seconds
Flow Rate	2 - 30 L/min
Flow Sensor	Integrated
Pressure Limit	10-80 cmH2O
