fabian Therapy evolution | SW V5.1.x
Ref: 121003.EN / Date: 26Jan2021
4.3.2 Operation – Settings
Settings
The Ventilation parameters can be set
before starting ∕ activating Ventilation
mode:
Tap the desired Ventilation mode key
once: pre-setting is activated. The key
turns Yellow.
The Configuration parameters for the
preselected Ventilation mode can
now be adjusted.
Tap Ventilation mode again: the key
will turn Green; ventilation will start
with the defined parameter settings.
The selected parameter can also be
confirmed by pressing the Rotary Pulse
knob.
NOTE : If the setting is active (Yellow button)
and no action is taken for 15 seconds, or the
preselected mode is not confirmed by
tapping again, the device will continue in
the previous mode, new pre-settings are
deleted.

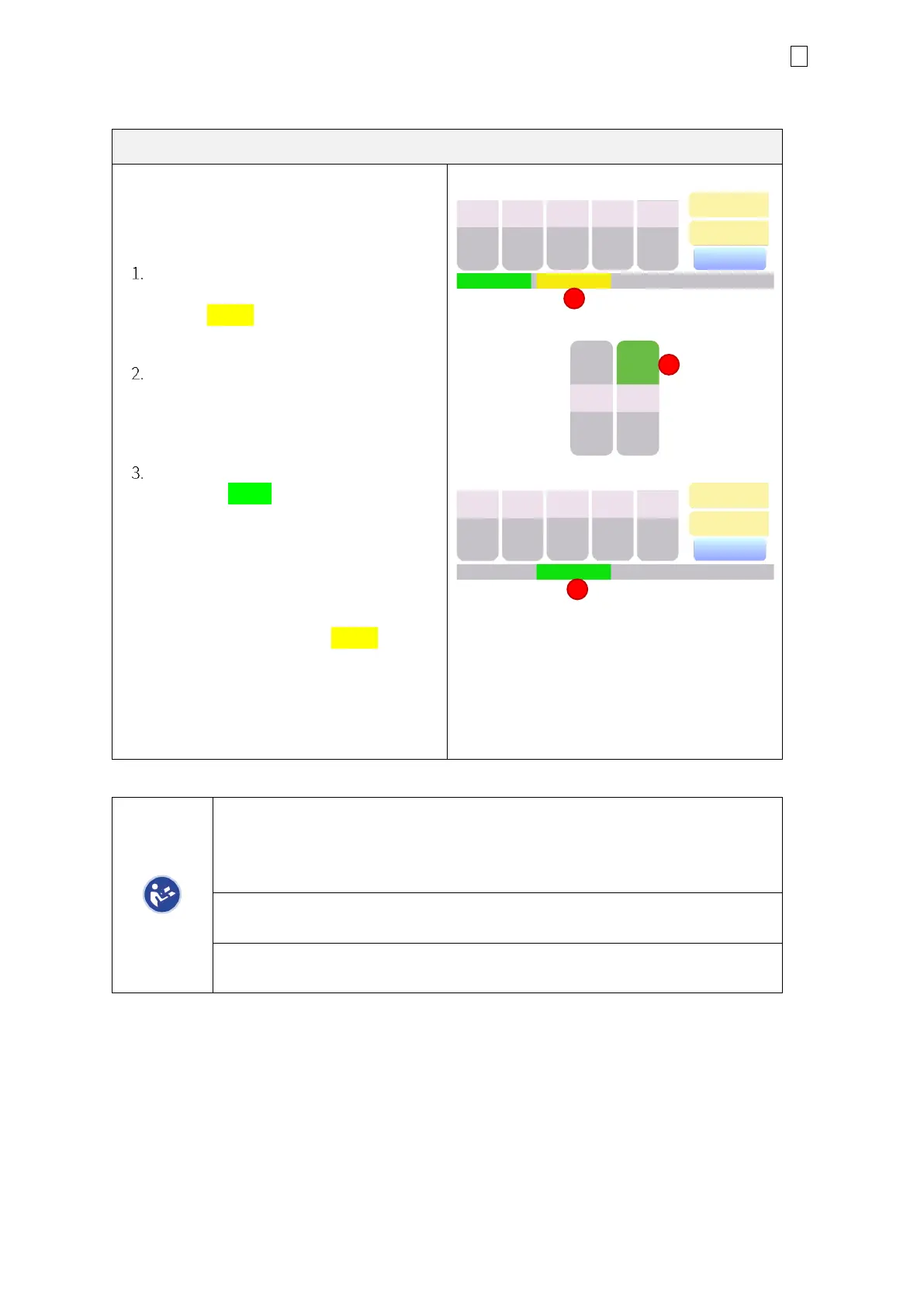

Figure 4-8: Ventilator mode selection &
activation
After confirming a parameter, the audible and visual alarm is automatically
suppressed for 15 seconds.
The audible and visual alarm can be immediately activated by pressing the
Alarm Silence button.
Press any blank area or another parameter to NOT accept the parameter and
keep the previous value.
Alternating alarms active at the time the mode is switched will automatically
be reset.
1
2
3

ACUTRONIC fabian Specifications

General

Type	Neonatal and Pediatric Ventilator
Manufacturer	ACUTRONIC Medical Systems AG
Model	fabian
Respiratory Rate	1 - 150 bpm
FiO2 Range	21 - 100%
HFOV Frequency	5 - 20 Hz
Power Supply	100-240 V AC, 50/60 Hz
Modes of Ventilation	SIMV, CPAP, HFOV
Tidal Volume Range	2 to 300 ml
PEEP/CPAP	0-20 cmH2O
Inspiratory Time	0.1 to 3 seconds
Flow Rate	2 - 30 L/min
Flow Sensor	Integrated
Pressure Limit	10-80 cmH2O
