ACUTRONIC fabian User Manual

67 11 Ventilation modes
fabian Therapy evolution | SW V5.1.x
Ref: 121003.EN / Date: 26Jan2021
11.3.4 Connect Nitric Oxide (NO) tubing sets
IMPORTANT:
Only INOmax and INOvent NO systems are approved by ACUTRONIC Medical Systems.
If other manufacturers’ NO systems are used, they must be validated first before use with
the fabian.

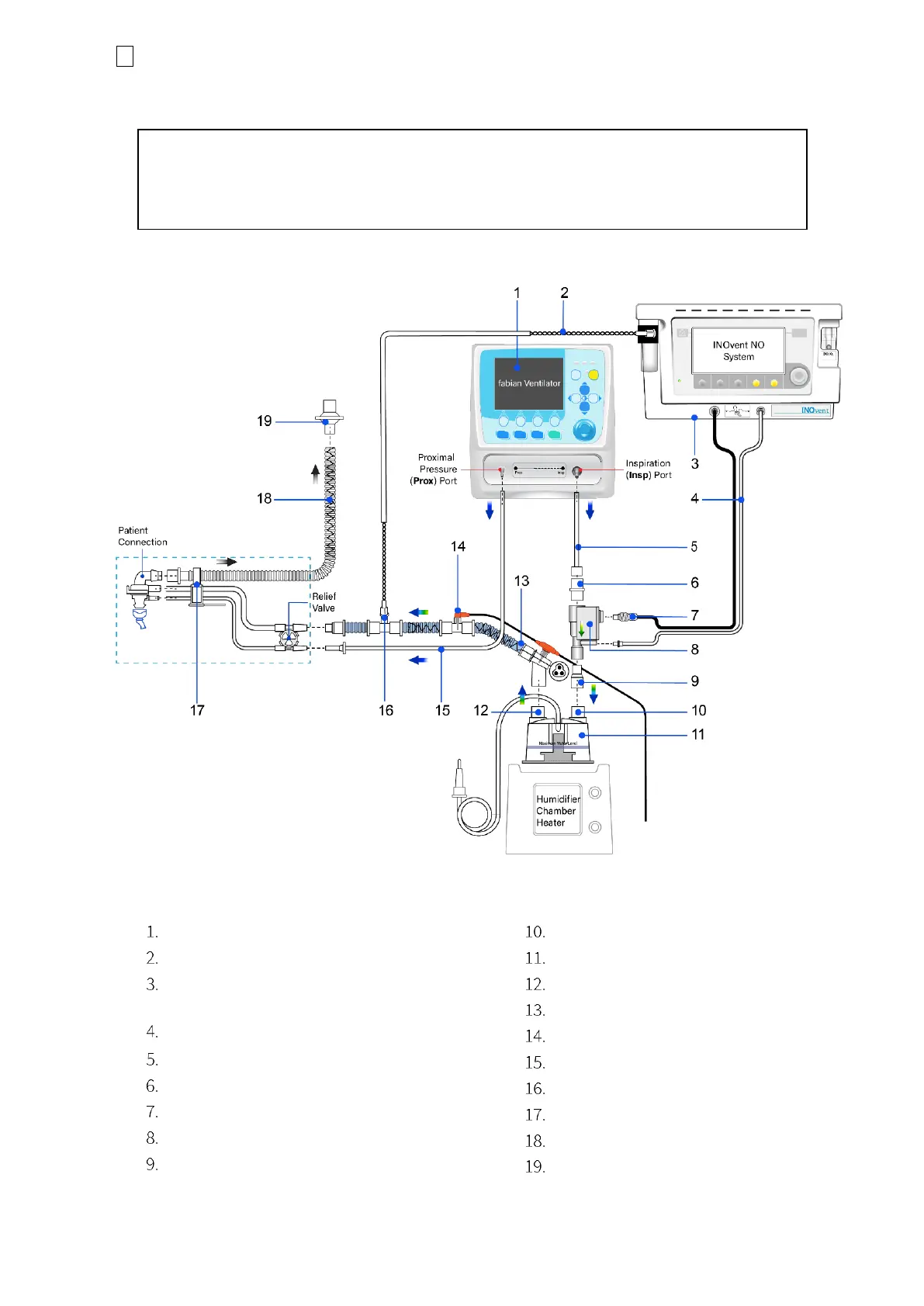

11.3.4.1 Circuit diagram for NO system usage
Figure 11-1: Connecting the NO system
Fabian Therapy evolution
Gas Sample line with Nafion
INOvent NO System ( INOmax can alternately
be used as well )
NO ⁄ N
2
Injector Tube
Infant Flow connection Tube
22M/15F X 22M/15F Adapter
Injector Module Electrical Cable
Injector Module
22F X 15M Adapter
Humidifier Chamber Inlet
Humidifier Chamber
Humidifier Chamber Outlet
Heated Inspiratory Limb
Proximal Temperature Probe
Proximal Pressure Tube
Sample Tee
Infant Flow LP Generator Assembly
LP Expiratory Limb
Anti-Viral Filter

ACUTRONIC fabian Specifications

General

Type	Neonatal and Pediatric Ventilator
Manufacturer	ACUTRONIC Medical Systems AG
Model	fabian
Respiratory Rate	1 - 150 bpm
FiO2 Range	21 - 100%
HFOV Frequency	5 - 20 Hz
Power Supply	100-240 V AC, 50/60 Hz
Modes of Ventilation	SIMV, CPAP, HFOV
Tidal Volume Range	2 to 300 ml
PEEP/CPAP	0-20 cmH2O
Inspiratory Time	0.1 to 3 seconds
Flow Rate	2 - 30 L/min
Flow Sensor	Integrated
Pressure Limit	10-80 cmH2O
