ACUTRONIC fabian User Manual

25 5 System operation
fabian Therapy evolution | SW V5.1.x
Ref: 121003.EN / Date: 26Jan2021
5.1.3 Connect the tubing set
WARNING: ELECTRICAL HAZARD
NEVER use anti-static or electrically conductive tubes.
WARNING:
The pressure gradient on the fabian ventilator system is measured at the patient
connection port and can increase when accessories or other components are attached to
the system.
Change in pressure gradient can adversely affect the performance of the fabian system.

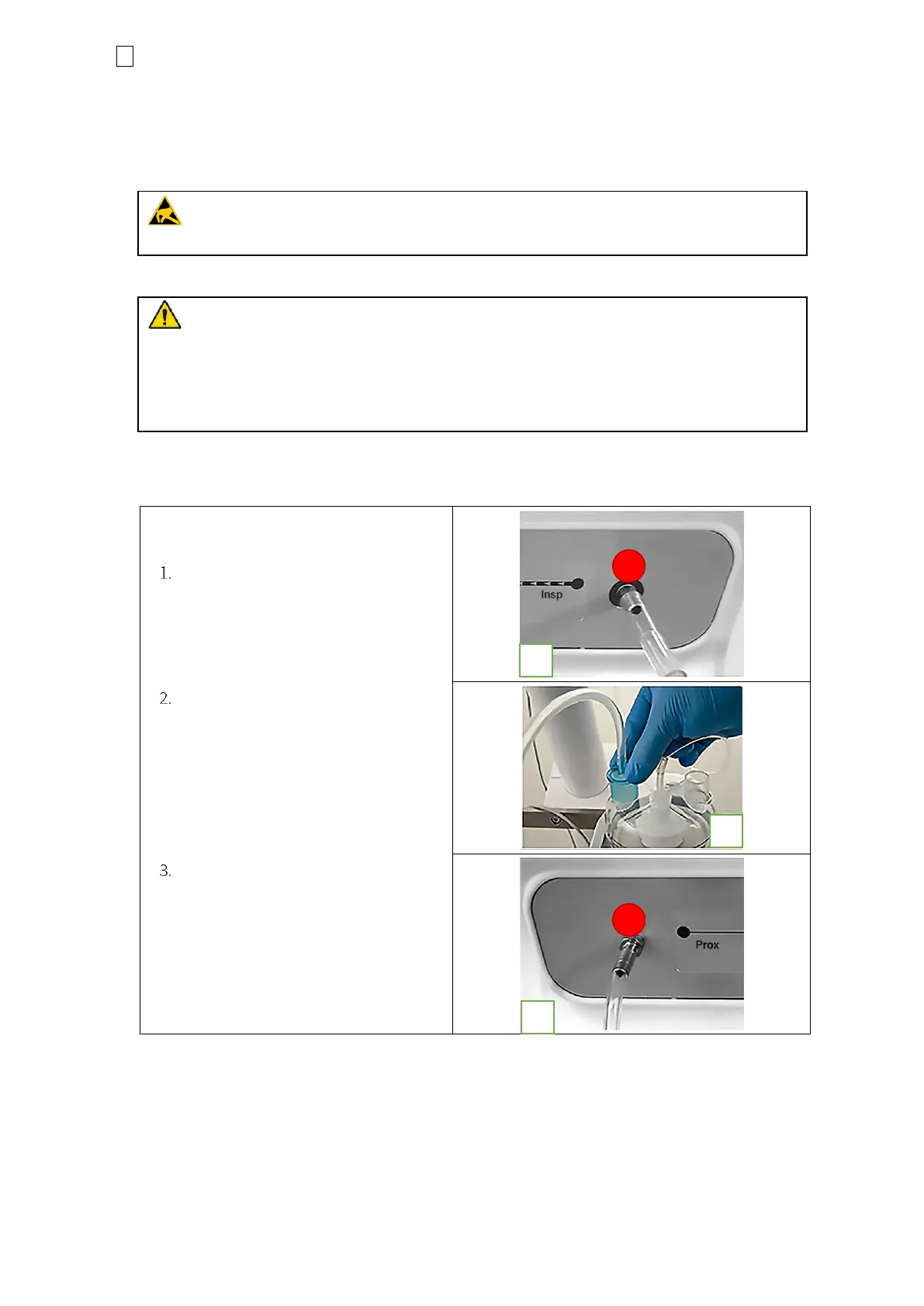

Preparing the nCPAP tubing system
Connect nCPAP adapter to the
fabian Insp port. 
Connect 22 mm adapter
connector to the humidifier
chamber.
Connect nCPAP system pressure
measuring tube to fabian port
marked Prox. 
3
1
2
1
2
