ACUTRONIC fabian User Manual

5 System operation 26
fabian Therapy evolution | SW V5.1.x
Ref: 121003.EN / Date: 26Jan2021

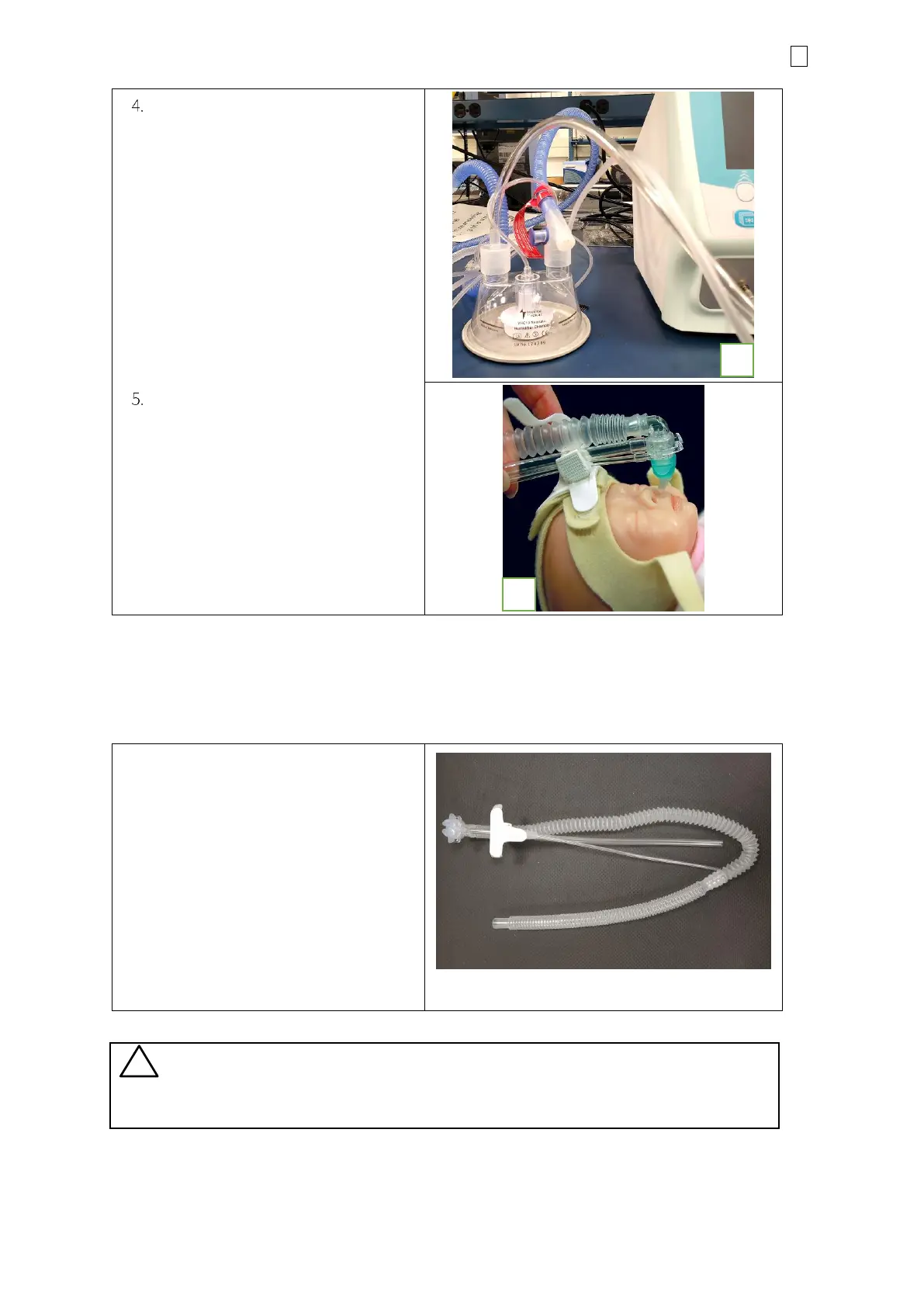

Connect nCPAP system to
Humidifier Chamber.
Apply nCPAP system to Patient
according to manufacturer
specifications.
For details of using nCPAP systems, refer to the manufacturer operator’s manual for
consumables.
5.1.4 Connect flow sensor in NIV trigger ( optional )
Preparing the nCPAP Infant Flow/Infant
Flow® LP/ Inspire Tubing System
• Connect Flow Sensor to
exhalation tube as shown in the
picture.
Recommendation:
• Make the Exhalation tube as
short as possible.
Figure 5-1: Infant Flow LP tubing system
CAUTION:
Always follow the manufactures instructions to ensure the correct connections for the
nCPAP and Infant Flow LP systems.
!
