ACUTRONIC fabian User Manual

17 4 System functions and displays
fabian Therapy evolution | SW V5.1.x
Ref: 121003.EN / Date: 26Jan2021
The alarms can be set between the following ranges:
Apnea [sec]
(in NCPAP, DUOPAP modes)
2 to 20, OFF
CPAP [mbar]
(in NCPAP mode)
Upper limit
‒4 to 30
Lower limit
‒5 to 29
Frequency [bpm]
(in NCPAP, DUOPAP modes)
Upper limit
10 to 75, OFF
PEEP [mbar]
(in DUOPAP mode)
Lower limit
‒5 to 29
PIP [mbar]
(in DUOPAP mode)
Upper limit
‒4 to 30
WARNING :
The respiratory rate and minute volume monitors are calculated as averages using an
update period of 6 seconds. If the monitored breath rate falls below 11 bpm, these values
are not reported.

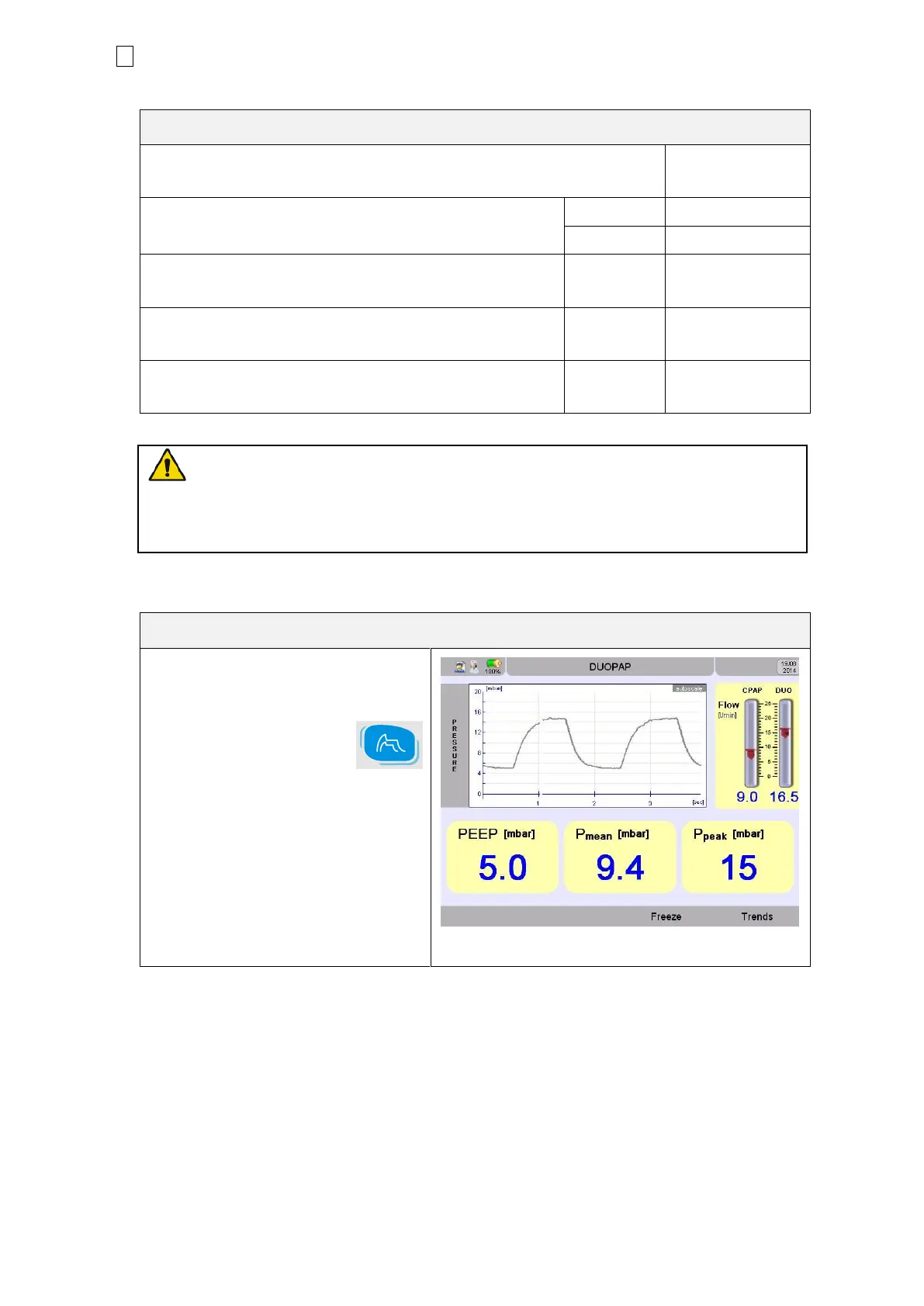

4.2.5 Graphic field
The Graphics button enlarges the measured values
Displays the current values in large
letters and the actual Wave.
Use the Graphics button to
access the Waves menu.
Figure 4-6: Graphics display

ACUTRONIC fabian Specifications

General

Type	Neonatal and Pediatric Ventilator
Manufacturer	ACUTRONIC Medical Systems AG
Model	fabian
Respiratory Rate	1 - 150 bpm
FiO2 Range	21 - 100%
HFOV Frequency	5 - 20 Hz
Power Supply	100-240 V AC, 50/60 Hz
Modes of Ventilation	SIMV, CPAP, HFOV
Tidal Volume Range	2 to 300 ml
PEEP/CPAP	0-20 cmH2O
Inspiratory Time	0.1 to 3 seconds
Flow Rate	2 - 30 L/min
Flow Sensor	Integrated
Pressure Limit	10-80 cmH2O
