ACUTRONIC fabian User Manual

75 12 Accessories and options
fabian Therapy evolution | SW V5.1.x
Ref: 121003.EN / Date: 26Jan2021

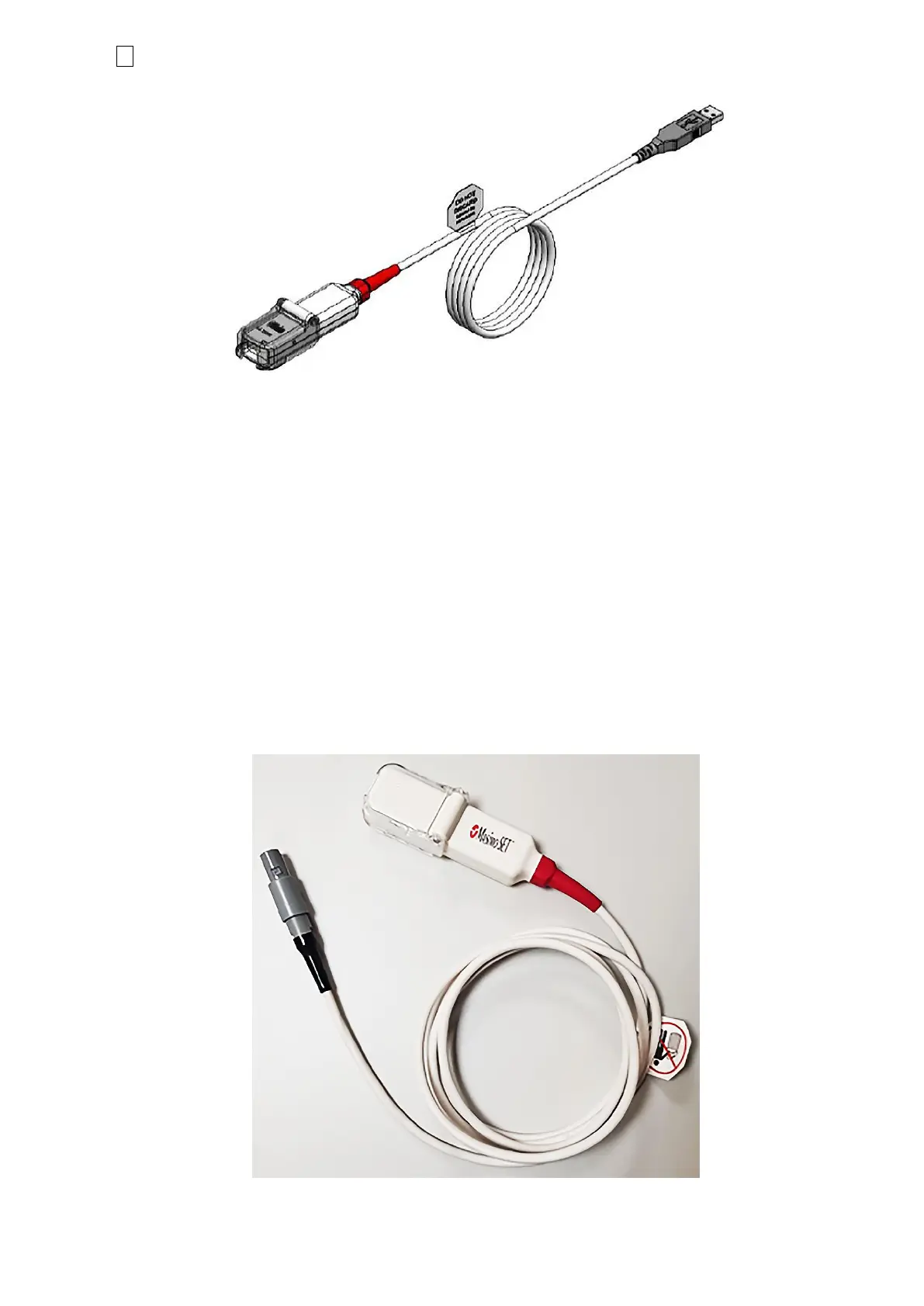

Figure 12-8: USB HPL/MIN module
12.4.1.2 LEMO HPL/MIN (for devices with SN from AN-04000)
The LEMO HPL/MIN is a patient cable with an integral Masimo MSLP-1 Board contained
in an enclosure that connects to Masimo Pulse Oximetry sensors and provides
functional oxygen saturation (SpO
2
), pulse rate (PR), perfusion index (PI),
Plethysmograph Waveforms, and other information through a serial digital interface.
The LEMO HPL/MIN contains a 9-pin (DB9) LNCS-compatible sensor connector with
latch at the sensor end, and a 7-pin LEMO connector at the opposite end so that it is
compatible with the 7-pin LEMO device port on the rear panel of the fabian ventilator.
The total length of the LEMO HPL/MIN, patient cable, and sensor cannot exceed 5
meters.
Figure 12-9: LEMO HPL/MIN module

ACUTRONIC fabian Specifications

General

Type	Neonatal and Pediatric Ventilator
Manufacturer	ACUTRONIC Medical Systems AG
Model	fabian
Respiratory Rate	1 - 150 bpm
FiO2 Range	21 - 100%
HFOV Frequency	5 - 20 Hz
Power Supply	100-240 V AC, 50/60 Hz
Modes of Ventilation	SIMV, CPAP, HFOV
Tidal Volume Range	2 to 300 ml
PEEP/CPAP	0-20 cmH2O
Inspiratory Time	0.1 to 3 seconds
Flow Rate	2 - 30 L/min
Flow Sensor	Integrated
Pressure Limit	10-80 cmH2O
